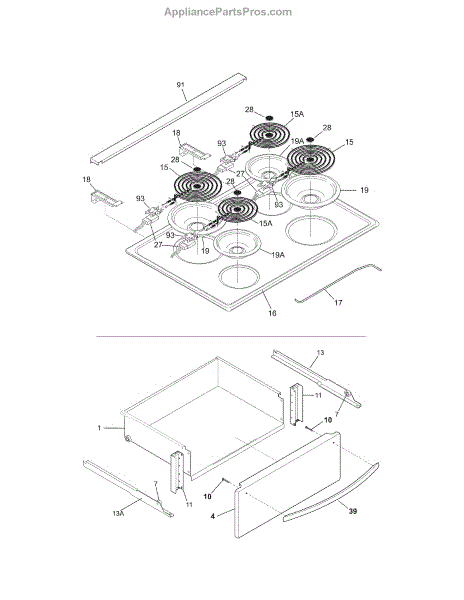

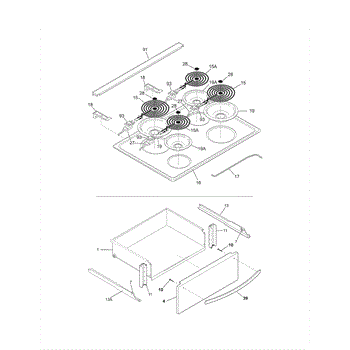

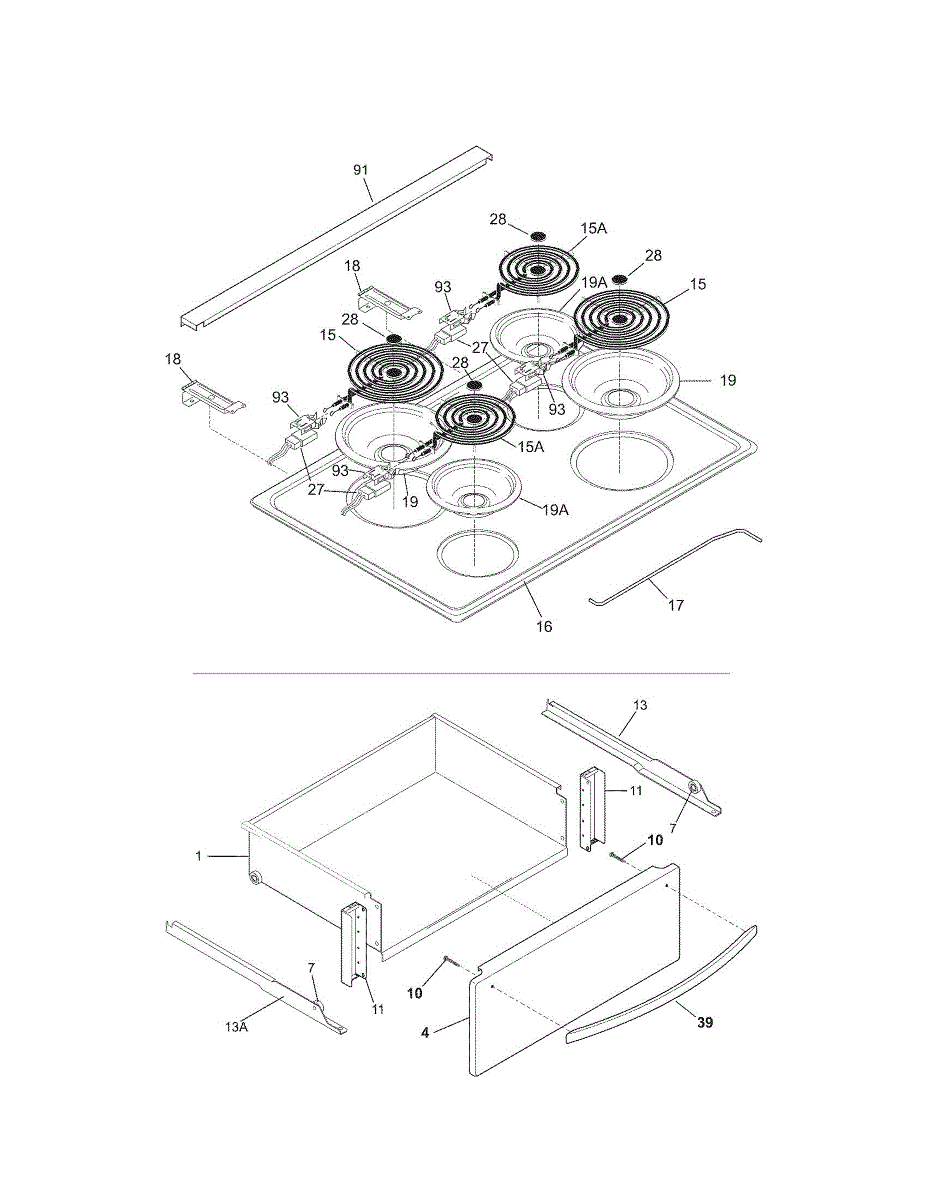

Parts for Kenmore 790.46763907 (79046763907, 790 46763907): Top / Drawer Parts

This replacement drawer body restores a smooth-sliding storage bin in your appliance. Integrated rollers let the drawer glide on its tracks, keeping items organized and easy to access when the original is cracked, warped, or difficult to open.

• Forms the storage bin and supports items within the compartment
• Built-in rollers enable smooth travel along the drawer rails/tracks
• Helps resolve sticking, popping off track, rough movement, or broken tabs
• Restores proper fit and slide action for everyday use

• Empty and remove the damaged drawer; transfer any reusable front trim or inserts from the old drawer if needed
• Clean and inspect the rails/tracks; align the rollers with the track openings and slide in level until fully seated
• Do not force the drawer—re-align if resistance is felt to avoid damaging tabs or rails
• Avoid lubricants; wipe tracks and rollers with mild soap and water only

This drum roller supports the dryer drum and helps it turn smoothly, reducing friction and noise. Replacing a worn roller restores quieter operation and helps prevent drum wobble and uneven tumbling. What it does:

• Supports the rotating drum so it spins freely and evenly.
• Reduces squeaks, grinding noises and excessive vibration from a worn wheel.
• Helps prevent drum wobble that can lead to uneven drying or wear on other components.
• Works with the drum shaft/bearing system to maintain proper drum alignment.

• Disconnect power (and gas, if applicable) before starting any service.
• Remove the dryer drum to access and replace the roller—follow your model's service manual or OEM instructions.
• Inspect adjacent rollers, bearings and the shaft for wear while the drum is removed.

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The 6-inch Drip Pan is an OEM part for Frigidaire ranges. This drip pan sits beneath the heating element on the stovetop, catching spills, drips, and food debris that occur during cooking.

Causes of a bad drip pan can include corrosion from prolonged exposure to moisture, heat damage from the heating elements, or physical damage from heavy cookware.

Symptoms of a bad drip pan include:

• Rust or corrosion on the pan's surface
• Warping or bending of the pan
• Difficulty in cleaning due to burnt-on residue
• Visible holes or damage that allows spills to reach the underlying surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

A decorative medallion trim piece that restores the finished look of your appliance front. Replaces a scratched, faded or missing medallion to improve appearance and maintain original styling. What it does:

• Covers and protects the underlying surface while matching the appliance's original finish
• Restores a clean, finished look when the factory medallion is damaged or discolored
• Helps keep grime and moisture out of seams around the emblem area
• Useful when replacing a damaged control/door trim for a consistent appearance

• One medallion decorative trim

• Surface-mount replacement; peel adhesive or fasten per original attachment method
• Clean and dry mounting area before installing for best adhesion
• Handle carefully to avoid scratching the finish during installation

This replacement refrigerator door handle provides a secure grip and restores safe, easy access to your refrigerator. It replaces a worn, cracked, or missing handle to improve function and appearance. What it does:

• Provides a sturdy grip to open and close the refrigerator door
• Replaces cracked, broken, loose, or missing handles and improves door usability
• Restores the cabinet's finished look by covering damaged or worn handle areas
• Helps maintain a proper seal by enabling correct door alignment when closed

• One refrigerator door handle

• Disconnect power to the appliance or unplug before working near electrical components
• Support the door while removing fasteners to prevent damage or injury
• Use the original screws and any mounting hardware;

This trim is a decorative finishing panel that restores the appliance's original appearance and covers exposed edges for a clean, factory look. It replaces damaged, cracked, or missing trim to improve cosmetic appearance. What it does

• Covers and protects exposed edges on the appliance surface for a finished look
• Hides gaps and fasteners for a clean, factory appearance
• Replaces cracked, chipped, or otherwise damaged trim that detracts from appearance
• Helps keep dirt and moisture out of exposed seams

• One trim piece as shown

• Disconnect power (and water, if applicable) before beginning any repair
• Remove any retaining screws or clips and carefully pry away old trim to avoid damaging adjacent surfaces
• Align new trim and secure with original screws or clips; do not overtighten fasteners
• Handle painted or chrome-finish trim with care to avoid scratching during installation

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
