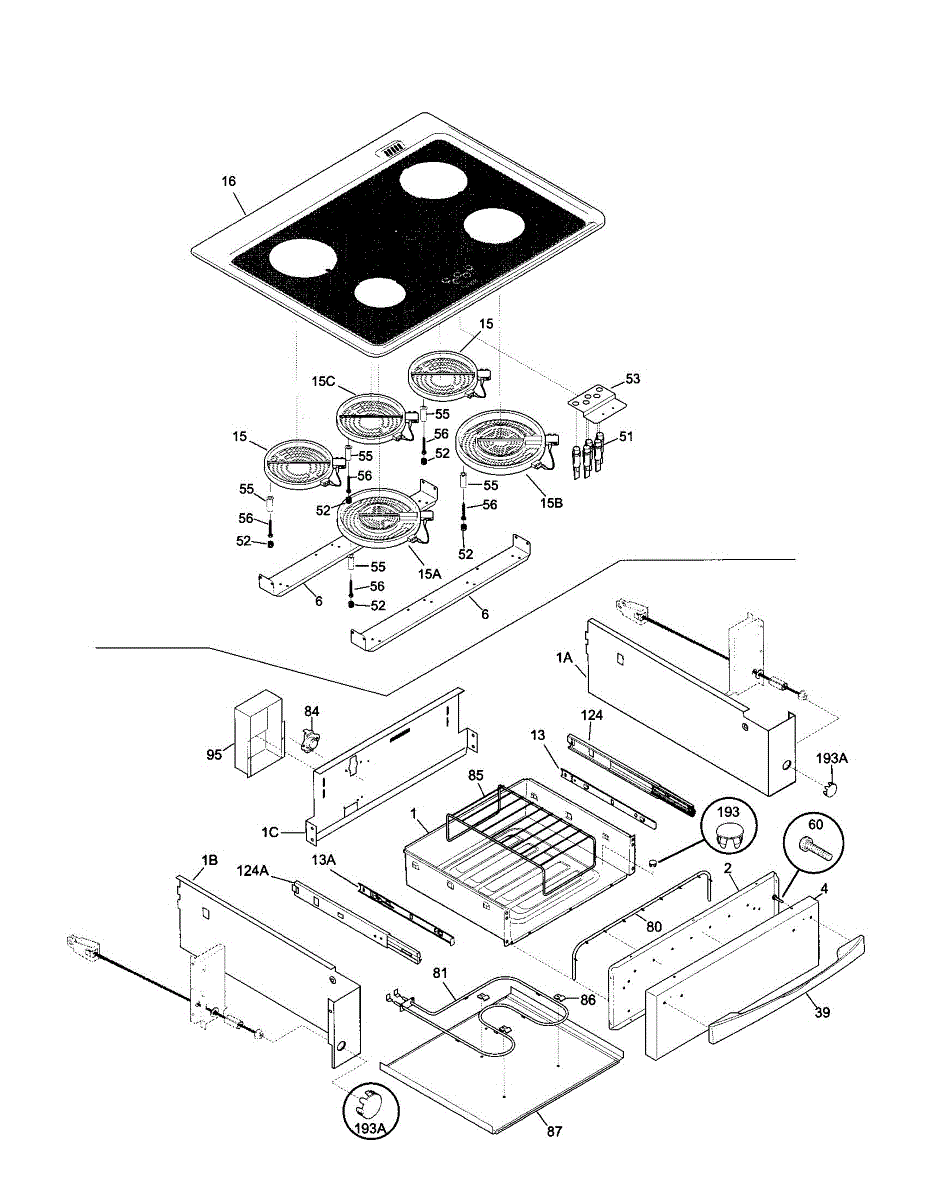

Parts for Kenmore 790.46802990 (79046802990, 790 46802990): Top / Drawer Parts

This warmer drawer assembly replaces a failed or damaged warming drawer to restore the appliance's ability to keep cooked foods warm and ready to serve. Fits as a direct replacement for units using this OEM drawer assembly. What it does:

• Provides the insulated, heated compartment that maintains cooked-food temperature for serving
• Replaces cracked, bent or non-sealing drawers that allow heat loss
• Restores proper drawer movement and latch engagement for safe use
• Helps eliminate intermittent or complete loss of the warming function when the drawer assembly is damaged

• Disconnect power to the appliance before starting any repairs to avoid shock
• Handle the drawer carefully—edges and mounting tabs may be sharp
• Verify proper seating and alignment; ensure connectors and mounting clips engage fully
• If wiring or heating elements are exposed or damaged, replace those components per OEM instructions.

This is a 9 inch, Dual 700 and 2100 watt, radiant heating element. Includes limit switch.

Warmer

Fixes dual burner when inner ring stops heating or entire element fails. Common cooktop repair—disconnect power, lift top, replace element. Takes 30-60 minutes.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

Mounting spring that secures electric cooktop elements in place. Replace if spring is broken, bent, or missing to properly hold heating element assembly.

Plastic spacer that positions and supports the heating element in your range cooktop. Replace if cracked, broken, or missing to properly secure the element.

Hex washer head ,10-32 x 0.375. Ground

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Rubber grommet plug that seals the light switch opening in your range control panel. Replace if cracked, torn, missing, or no longer providing a tight seal.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500
