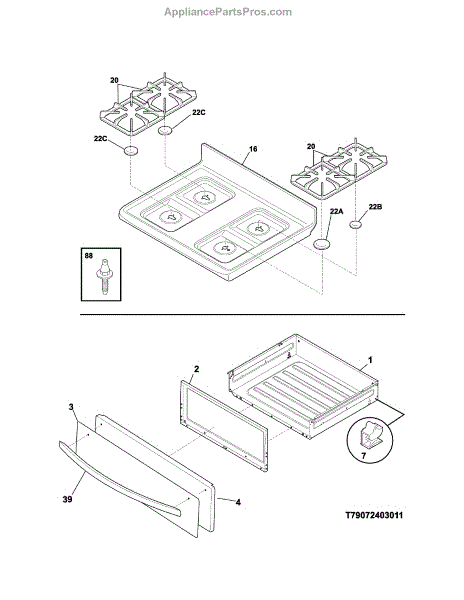

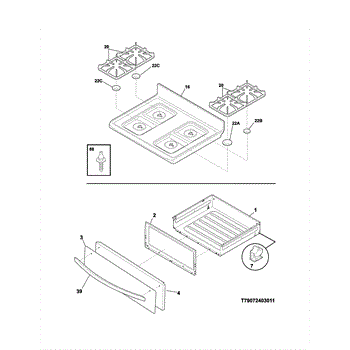

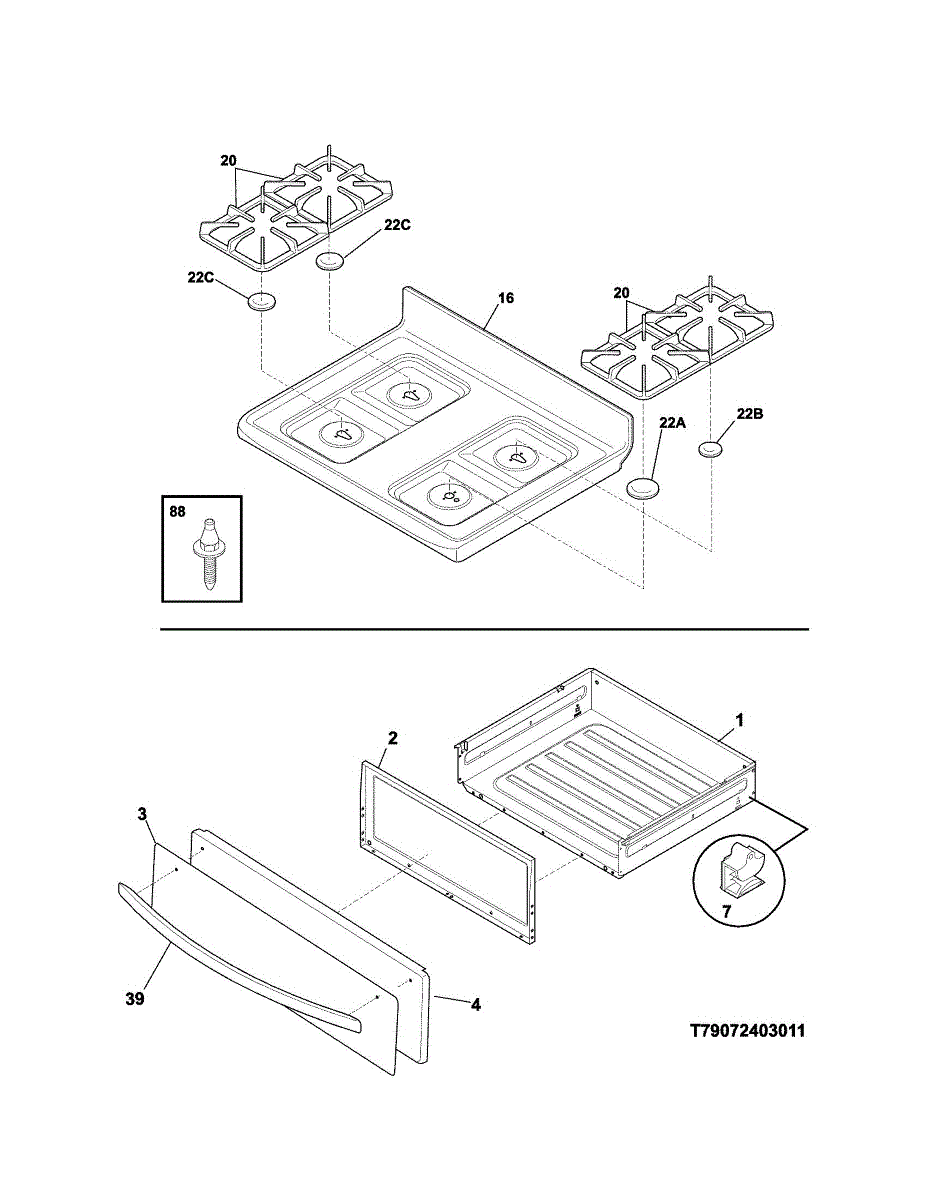

Parts for Kenmore 790.74033311 (79074033311, 790 74033311): Top / Drawer Parts

This is a metal liner that sits inside the broil drawer at the bottom of the range, protecting the cabinet floor from grease, drips, and heat damage. It provides a smooth, cleanable surface beneath the broiler element or heating area. Replace this liner if it is rusted, warped, or has burn-through holes that allow grease to reach the range cabinet.

Rear glide attaches to the back of your range storage drawer, allowing smooth sliding motion. Replace if broken, cracked, or missing to prevent drawer tilt.

Drawer slide glide for electric and gas ranges. Replace if cracked, broken, or worn to restore smooth, aligned drawer movement and eliminate sticking.

Upper cooktop panel that covers and protects burners and internal components. Replace if cracked, chipped, warped, or stained to restore appearance.

Single cooktop grate provides stable support for pots and pans over gas burners. Replace when original is cracked, warped, chipped, or missing.

This black burner cap sits on top of the 14,000 BTU surface burner on a gas range or cooktop, distributing the flame evenly around the burner head. It is essential for proper flame pattern and efficient heating. Replace this cap if it is cracked, warped, heavily corroded, or if the burner flame appears uneven or yellow.

Replacement burner cap for gas range cooktops. Sits atop the burner head to distribute flame evenly. Replace if cracked, damaged, or missing after moves.

Replacement burner cap for gas ranges and cooktops. Covers the burner head and protects from spills. Needed when cap is cracked, broken, or missing.

This is a stainless steel oven door handle that mounts to the front of the range door. It provides a grip for opening and closing the oven door during use. Replace this handle if it is cracked, broken, loose, or if the mounting points have become stripped or damaged.

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
