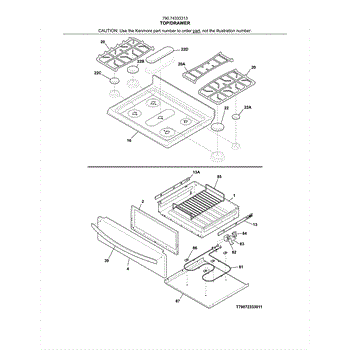

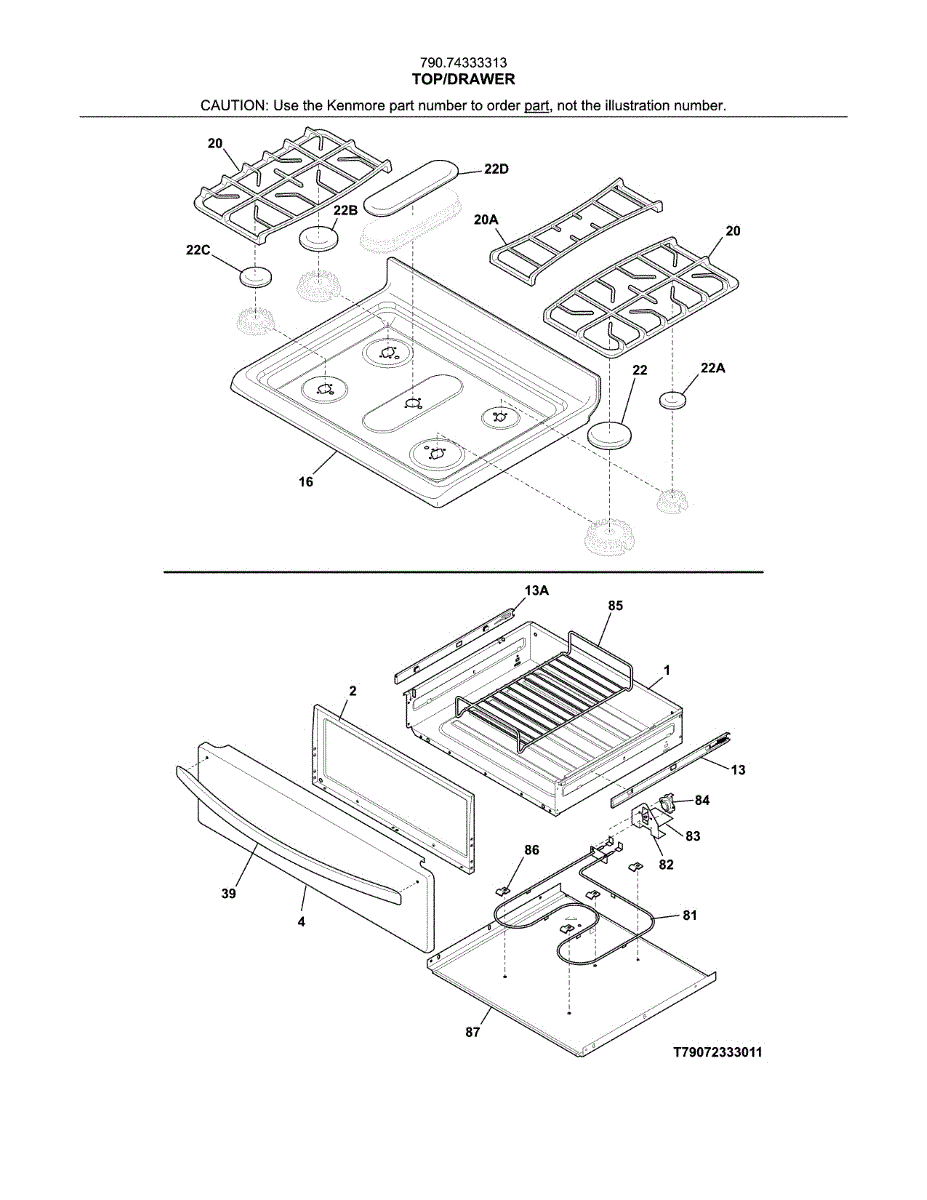

Parts for Kenmore 790.74333313 (79074333313, 790 74333313): Top Drawer Parts

This is a metal liner that sits inside the broil drawer at the bottom of the range, protecting the cabinet floor from grease, drips, and heat damage. It provides a smooth, cleanable surface beneath the broiler element or heating area. Replace this liner if it is rusted, warped, or has burn-through holes that allow grease to reach the range cabinet.

Replacement front console trim panel for gas ranges. Houses user controls, buttons, and display. Restores finished appearance when original is cracked, bent, or worn.

Replacement drawer glide for electric and gas ranges. Guides storage drawer along its track for smooth opening and closing. Replaces cracked or worn glides.

Oven rack glide that allows smooth sliding of oven racks. Replace this guide if it's broken, cracked, or missing to restore proper rack operation.

Main top assembly for gas ranges. Provides the cooking surface that supports grates and cookware. Replace if cracked, dented, bent, corroded, or worn.

The Grate Set is an OEM part for Frigidaire ranges. This part provides a stable surface for cookware and allowing for even heat distribution during cooking.

Common causes of a bad grate set include prolonged exposure to high heat, heavy impact from dropping cookware, or general wear and tear over time.

Symptoms of a bad Grate Set include:

• Visible cracks, chips, or warping of the grates
• Difficulty in balancing pots and pans on the grates
• The grates not fitting properly over the burners
• Uneven cooking due to unstable grates

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Grate Set is an OEM part for Frigidaire ranges. This part provides a stable surface for cookware and allowing for even heat distribution during cooking.

Common causes of a bad grate set include prolonged exposure to high heat, heavy impact from dropping cookware, or general wear and tear over time.

Symptoms of a bad Grate Set include:

• Visible cracks, chips, or warping of the grates
• Difficulty in balancing pots and pans on the grates
• The grates not fitting properly over the burners
• Uneven cooking due to unstable grates

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Surface burner cap sits atop the burner head to shape and center the flame. Replace if cracked, chipped, or missing to restore proper flame distribution.

This black burner cap sits on top of the 14,000 BTU surface burner on a gas range or cooktop, distributing the flame evenly around the burner head. It is essential for proper flame pattern and efficient heating. Replace this cap if it is cracked, warped, heavily corroded, or if the burner flame appears uneven or yellow.

Burner cap covers the burner head on gas ranges and cooktops. Replace if cracked, chipped, broken, or missing to protect burner and ensure proper heat.

Replacement burner cap for gas range cooktops. Sits atop the burner head to distribute flame evenly. Replace if cracked, damaged, or missing after moves.

Replacement burner cap for gas ranges and cooktops. Covers the burner head and protects from spills. Needed when cap is cracked, broken, or missing.

This is a stainless steel oven door handle that mounts to the front of the range door. It provides a grip for opening and closing the oven door during use. Replace this handle if it is cracked, broken, loose, or if the mounting points have become stripped or damaged.

This is a heating element designed for the warming drawer of a range. It provides low, consistent heat to keep food warm after cooking. Replace this element if your warming drawer no longer heats, heats unevenly, or has visible damage such as cracks or burn marks.

Mounting bracket that secures the heating element in your range. Replace this bracket if it's bent, broken, cracked, or missing to properly support the element.

Range won't heat or shuts off unexpectedly? A faulty thermal fuse may be the cause. This safety component protects against overheating. DIY repair.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

Replaces damaged or frayed wire harness that connects electrical components in your range. Install when wiring is cracked, melted, or corroded.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

This wiring harness connects the appliance's electrical components to restore reliable power and signal routing. It replaces a damaged or worn harness to help resolve power loss and intermittent electrical issues. What it does:

• Transfers power and control signals between components so controls and motors can operate
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps stop failures that lead to no-start or loss of specific functions
• Restores secure connector fit to reduce arcing or poor connections

• Always disconnect power before servicing the appliance
• Match connectors and wire routing to the original harness; avoid stretching or pinching wires
• Secure fasteners and strain reliefs; verify all connections are fully seated
• If you find heat or burn damage at terminals, inspect adjacent components for root cause

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Replacement grate foot kit for gas range burner grates. Includes 8 rubber feet and adhesive. Needed when feet are missing, cracked, melted, or worn.

Size: 3/4 inch od x 1/4 inch id.
