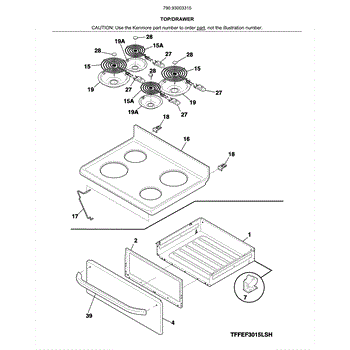

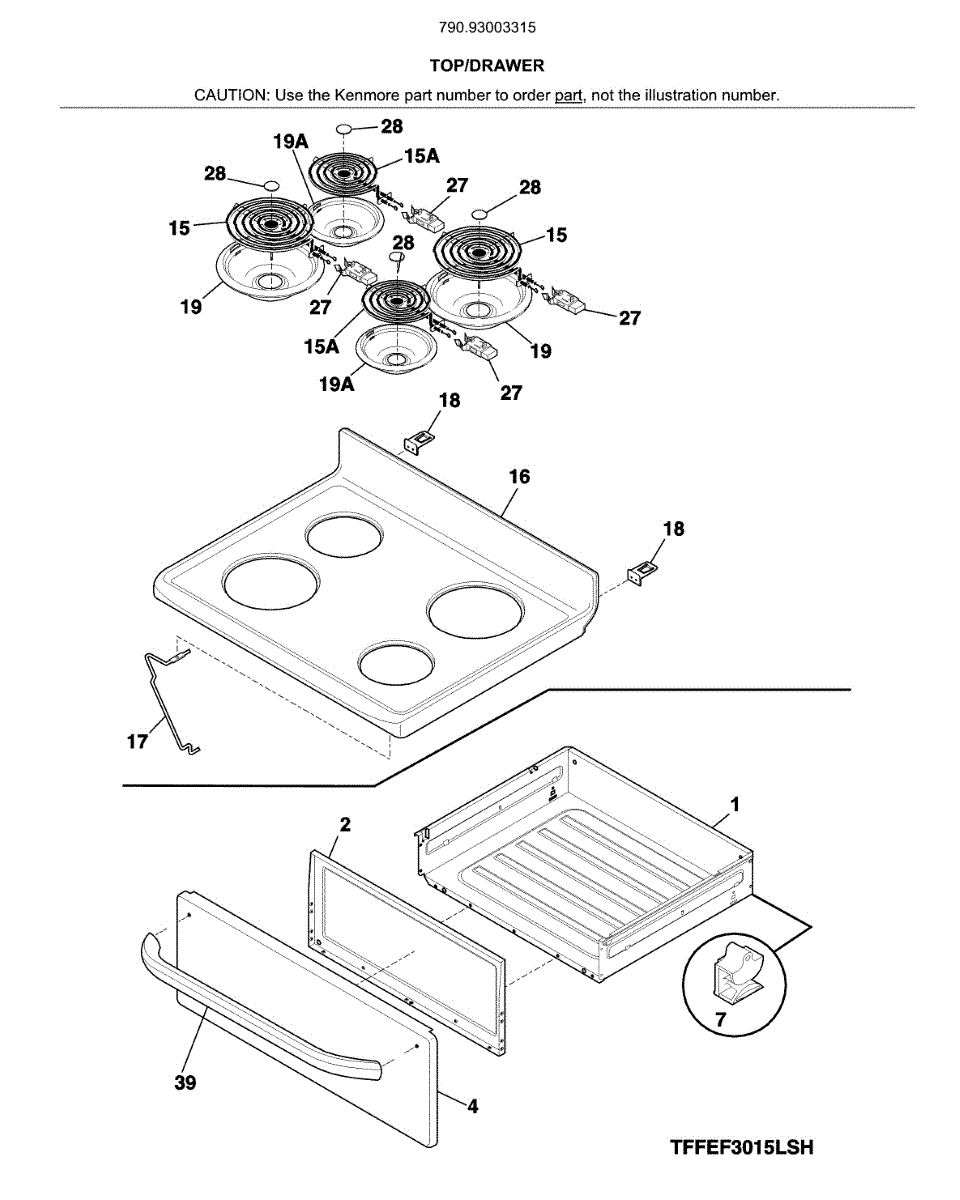

Parts for Kenmore 790.93003315 (79093003315, 790 93003315): Top / Drawer Parts

Replaces a damaged, cracked, or missing bottom drawer on your range. Restores smooth slide action and a flush, finished look to the storage compartment.

This is an interior liner panel designed to fit inside the storage drawer beneath the range oven cavity. It provides a smooth, finished surface that protects the drawer interior and makes cleanup easier. Replace this liner if it is warped, cracked, rusted, or damaged from heat exposure.

Rear glide attaches to the back of your range storage drawer, allowing smooth sliding motion. Replace if broken, cracked, or missing to prevent drawer tilt.

Burner not heating or heating unevenly? This coil surface element restores consistent cooking heat. Simple plug-in installation takes just minutes.

If your stovetop burner won't heat or heats unevenly, this surface element is the likely fix. Simple plug-in replacement takes just minutes—no tools needed.

Main top replaces the cooktop surface on select ranges, restoring a flat, secure surface for burners and controls. It improves appearance and supports proper burner alignment for safer, more reliable cooking. What it does:

• Provides the primary cooktop surface and mounting for surface burners and elements.
• Restores a flat, undamaged surface when the original top is dented, warped, cracked, or cosmetically damaged.
• Secures burner assemblies and helps prevent burner wobble or misalignment.
• Improves cleanability and overall appearance of the cooktop area.

• Disconnect power (and gas supply for gas ranges) before beginning service.
• Remove burner grates, surface elements, and any trim; retain original hardware for reassembly.
• Large parts may require two people to position; use basic hand tools and follow model-specific service instructions.
• Verify burner alignment and function before completing reassembly.

Main top support rod for electric ranges. Replacement needed when original rod is broken, bent, or damaged. Installs to provide structural support.

This is a metal hinge bracket that secures the main cooktop to the range frame and allows it to be lifted for access to components underneath. It connects the cooktop panel to the body of the range at the hinge point. Replace this bracket if it is bent, broken, or missing, which can cause the main top to sit unevenly or not stay properly secured.

Replace cracked, rusted, or stained drip pans under your range burners. Catches spills and protects cooktop. Easy snap-in installation, no tools needed.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

Replacement wiring harness that connects control electronics to internal components, restoring proper electrical connections and reliable operation. Use when factory wiring is damaged, loose, or causing intermittent component failures. What it does:

• Routes power and signal between the appliance control board and internal components.
• Restores continuity when broken, frayed, or corroded wires cause intermittent or no operation.
• Can resolve symptoms such as non-responsive controls, lights or fans not running, or intermittent component operation.
• Keeps wiring neat and secured along original routing to prevent rubbing and stress.

• Always disconnect power (unplug or shut off breaker) before starting any repair.
• Match connector shapes and pin counts; route harness along original clips and pathways to avoid pinch points.
• Inspect mating connectors and terminals for damage or corrosion before reconnecting.

This is a black surface burner cap that sits on top of the burner base to distribute the flame evenly across the cookware. It covers the center of the burner assembly and helps produce a uniform ring of flame. Replace this cap if it is cracked, chipped, warped, or if you notice uneven flame patterns during cooking.

Range door handle that mounts to the oven door front panel. Replace if your handle is cracked, broken, or missing for safe access to your oven interior.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 6-20 x 0.312 inch.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
