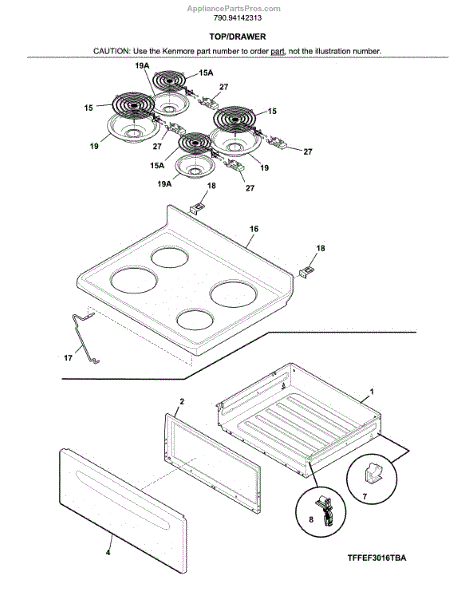

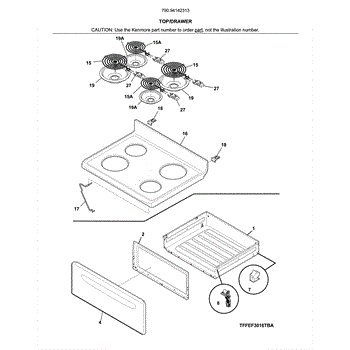

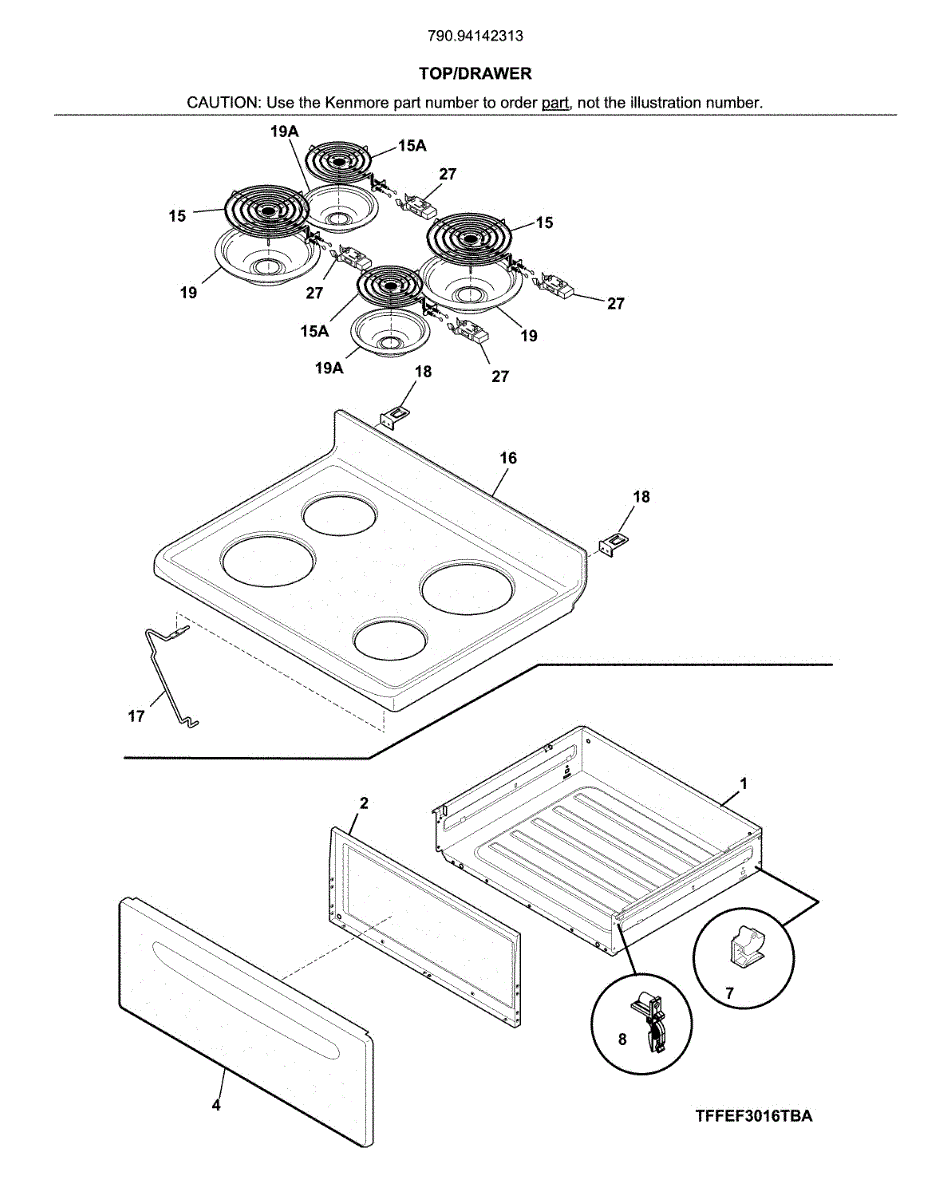

Parts for Kenmore 790.94142313 (79094142313, 790 94142313): Top / Drawer Parts

This lower drawer replaces a damaged or missing bottom drawer on your range, restoring smooth slide action and a flush, finished look so the lower compartment operates correctly and the appliance is complete again.

• Forms the pull-out compartment beneath the oven for convenient access
• Interfaces with the drawer slides to open and close smoothly
• Restores proper alignment and full closure at the base of the range
• Typical symptoms: drawer jams, falls off tracks, sits unevenly, or is bent/dented

• Disconnect power and shut off gas; allow the range to cool before servicing
• Pull the old drawer out and lift to disengage from the slides; transfer any reusable parts as needed
• Set the new drawer onto both slides evenly and test for smooth travel and full closure
• If the drawer doesn't seat flush, re-check slide engagement and appliance leveling

This interior refrigerator liner replaces a damaged or worn cabinet surface to restore a clean, smooth interior and support shelves and drawers. It helps maintain a sanitary storage area and a proper fit for accessories. What it does:

• Provides a smooth, easy-to-clean interior surface for the fresh food compartment
• Restores mounting surfaces for shelves, bins and trim pieces
• Prevents drafts and moisture intrusion where cracks or gaps exist
• Addresses symptoms like visible cracks, gouges, or a warped/loose interior liner

• One refrigerator interior liner

• Disconnect power to the appliance before beginning any repair
• Removal typically requires taking out shelves, trim and fasteners to access the liner
• May require adhesive, clips or screws specific to the model—keep original fasteners and hardware

This replacement control panel restores the front user interface for your range or oven, providing the buttons and display housing needed to operate the appliance. It returns a worn, cracked, or non-responsive console to normal use. What it does:

• Houses the touchpads/buttons and display area used to set temperature, timers, and oven functions
• Replaces a scratched, cracked, or cosmetically damaged front console
• Can resolve issues where buttons are stuck or the control face is illegible
• Works with the existing electronic control and mounting hardware to restore user access

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Remove oven door or surrounding trim to access fasteners if required
• Handle the panel carefully to avoid damaging the display window or attachment tabs
• Use manufacturer-recommended screws and protectors when reinstalling; do not force clips

The Rear Drawer Glide is an OEM part for Frigidaire ranges and ovens. This part is mounted on the rear end of the oven drawer, facilitating a smooth glide when the drawer is opened and closed. It ensures the stability and alignment of the drawer, preventing it from tilting or sticking during use.

Causes of a bad Rear Drawer Glide can include physical wear and tear from regular use, accidental damage, or degradation of the material over time. Regular inspection and maintenance can help identify issues early and extend the life of the glide.

Symptoms of a bad Rear Drawer Glide include:

• The oven drawer sticking or jamming when opened or closed
• The drawer sagging or not closing properly
• Unusual noises coming from the drawer due to misalignment
• Difficulty in smoothly operating the drawer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This glide restores smooth, aligned movement for a refrigerator or freezer drawer so the drawer opens and closes without sticking. Use it to replace a worn or broken glide and reduce scraping, binding, or uneven travel. What it does:

• Guides and supports the drawer so it tracks straight and slides smoothly.
• Replaces worn or damaged glides that cause drawers to stick, bind, or scrape.
• Helps prevent the drawer from coming off the track or shifting out of alignment.
• Reduces noise and uneven movement during opening and closing.

• Disconnect power (unplug the appliance) before servicing to avoid electrical hazards.
• Remove the drawer and any obstructing shelves per the OEM instructions to access the glide.
• Keep or replace original mounting screws; ensure the glide is oriented and seated correctly before tightening.
• Replace those parts to ensure a secure fit.

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This main top is the upper cooktop panel that provides a finished surface and supports burners and controls on compatible ranges. It restores a flat, secure cooktop surface and helps keep burners and components properly aligned. What it does:

• Replaces a dented, warped or corroded cooktop surface so burners and grates sit flat
• Provides mounting and alignment for surface burners, burner bowls and control openings
• Covers and protects internal components from spills and debris
• Improves appearance by restoring a clean, even top surface
• Can reduce rattling or misalignment caused by a damaged top

• One main top

• Disconnect power (and gas, if applicable) before starting any repair
• Remove grates, burner caps and any trim to access mounting screws—keep all hardware for reassembly
• Align the top, secure mounting screws, then reinstall burner parts and controls; check burners for proper seating

Main top support rod.

A replacement hinge bracket that secures and aligns the refrigerator door, restoring proper pivot and fit for smooth opening and closing. Install this bracket to correct sagging or misaligned doors and improve door seal performance. What it does

• Secures the door hinge to the cabinet and supports door weight — use when the door droops or hangs unevenly.
• Maintains pivot alignment so the door opens and closes smoothly without binding.
• Helps keep the door gasket aligned for a tighter seal; can reduce uneven gaps and cold-air loss.
• Replaces bent, cracked, or worn hinge-mounting points that cause noise or instability.

• One hinge bracket.

• Disconnect power to the appliance before starting work and remove or support the door to prevent injury.
• Support the door while removing and installing the bracket; a second person may be needed for large doors.
• Reuse existing hinge hardware if undamaged; replace fasteners if stripped or missing.
• After installation, check door alignment and adjust hinge position as needed for a proper seal.

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replacement wiring harness that connects control electronics to internal components, restoring proper electrical connections and reliable operation. Use when factory wiring is damaged, loose, or causing intermittent component failures. What it does:

• Routes power and signal between the appliance control board and internal components.
• Restores continuity when broken, frayed, or corroded wires cause intermittent or no operation.
• Can resolve symptoms such as non-responsive controls, lights or fans not running, or intermittent component operation.
• Keeps wiring neat and secured along original routing to prevent rubbing and stress.

• Always disconnect power (unplug or shut off breaker) before starting any repair.
• Match connector shapes and pin counts; route harness along original clips and pathways to avoid pinch points.
• Inspect mating connectors and terminals for damage or corrosion before reconnecting.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

Size: 6-20 x 0.312 inch.

Size: 8-32t x 0.500 inch. Color: Black.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
