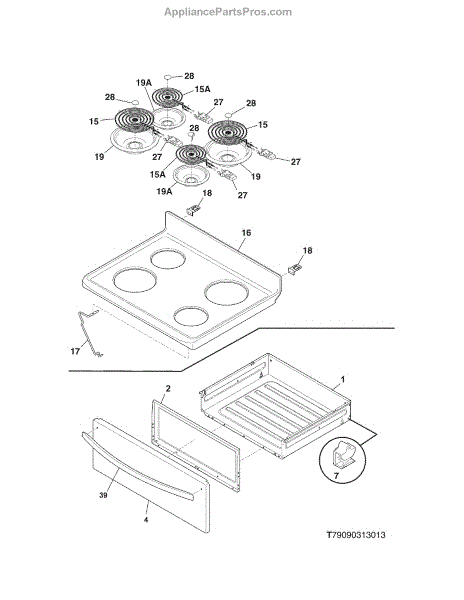

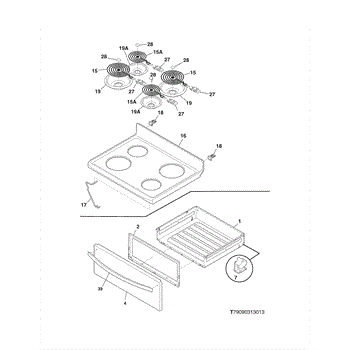

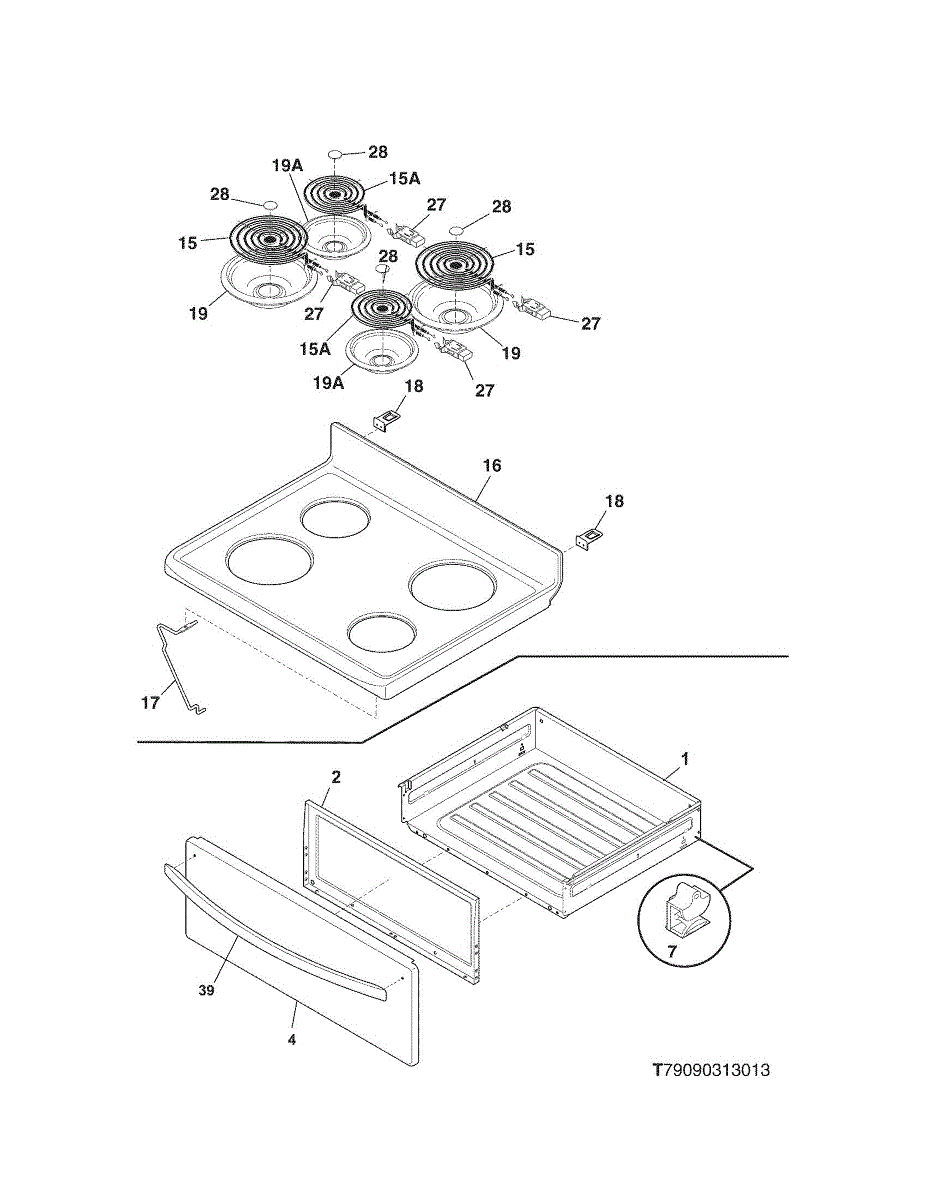

Parts for Kenmore 790.94153310 (79094153310, 790 94153310): Top / Drawer Parts

Replaces a damaged, cracked, or missing bottom drawer on your range. Restores smooth slide action and a flush, finished look to the storage compartment.

This liner attaches to the inside of the range's storage or warming drawer front panel, providing a finished interior surface and insulation. It helps protect the outer drawer panel from heat generated by the oven cavity above. Replace this liner if it is warped, cracked, discolored, or missing, which can allow excess heat to reach the drawer's exterior.

Rear glide attaches to the back of your range storage drawer, allowing smooth sliding motion. Replace if broken, cracked, or missing to prevent drawer tilt.

If your burner isn't heating evenly or won't heat at all, this 6-inch coil element typically solves the problem. Simple plug-in replacement. Video guide.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Main top replaces the cooktop surface on select ranges, restoring a flat, secure surface for burners and controls. It improves appearance and supports proper burner alignment for safer, more reliable cooking. What it does:

• Provides the primary cooktop surface and mounting for surface burners and elements.
• Restores a flat, undamaged surface when the original top is dented, warped, cracked, or cosmetically damaged.
• Secures burner assemblies and helps prevent burner wobble or misalignment.
• Improves cleanability and overall appearance of the cooktop area.

• Disconnect power (and gas supply for gas ranges) before beginning service.
• Remove burner grates, surface elements, and any trim; retain original hardware for reassembly.
• Large parts may require two people to position; use basic hand tools and follow model-specific service instructions.
• Verify burner alignment and function before completing reassembly.

Main top support rod for electric ranges. Replacement needed when original rod is broken, bent, or damaged. Installs to provide structural support.

Replaces damaged or corroded 6-inch drip pan beneath your electric range stovetop element. Catches spills and debris. Install when original is rusted or worn.

Replacement drip pan installs below range surface burners to catch spills. Replace if rusted, discolored, scorched, or coated with buildup that won't clean.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

This is a black surface burner cap that sits on top of the burner base to distribute the flame evenly across the cookware. It covers the center of the burner assembly and helps produce a uniform ring of flame. Replace this cap if it is cracked, chipped, warped, or if you notice uneven flame patterns during cooking.

This is a stainless steel oven door handle that mounts to the front of the range door. It provides a grip for opening and closing the oven door during use. Replace this handle if it is cracked, broken, loose, or if the mounting points have become stripped or damaged.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 6-20 x 0.312 inch.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Size: 8-32t x 0.500 inch. Color: Black.

This kit includes a surface element receptacle block and wiring harness that connects a burner element to the range's electrical system. It transfers power from the terminal block to the heating element on the cooktop. Replace this kit if your surface burner heats intermittently, fails to heat at all, or you see scorching or burn marks around the receptacle connections.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
