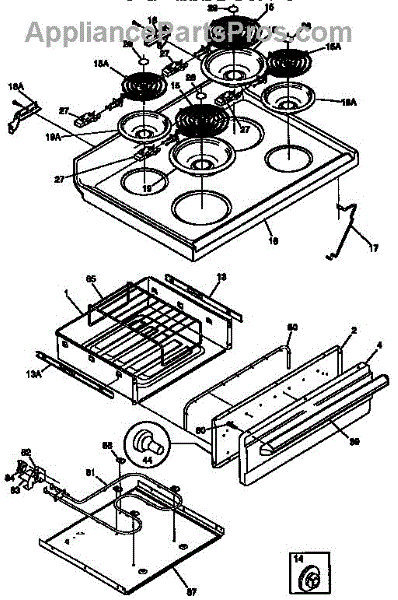

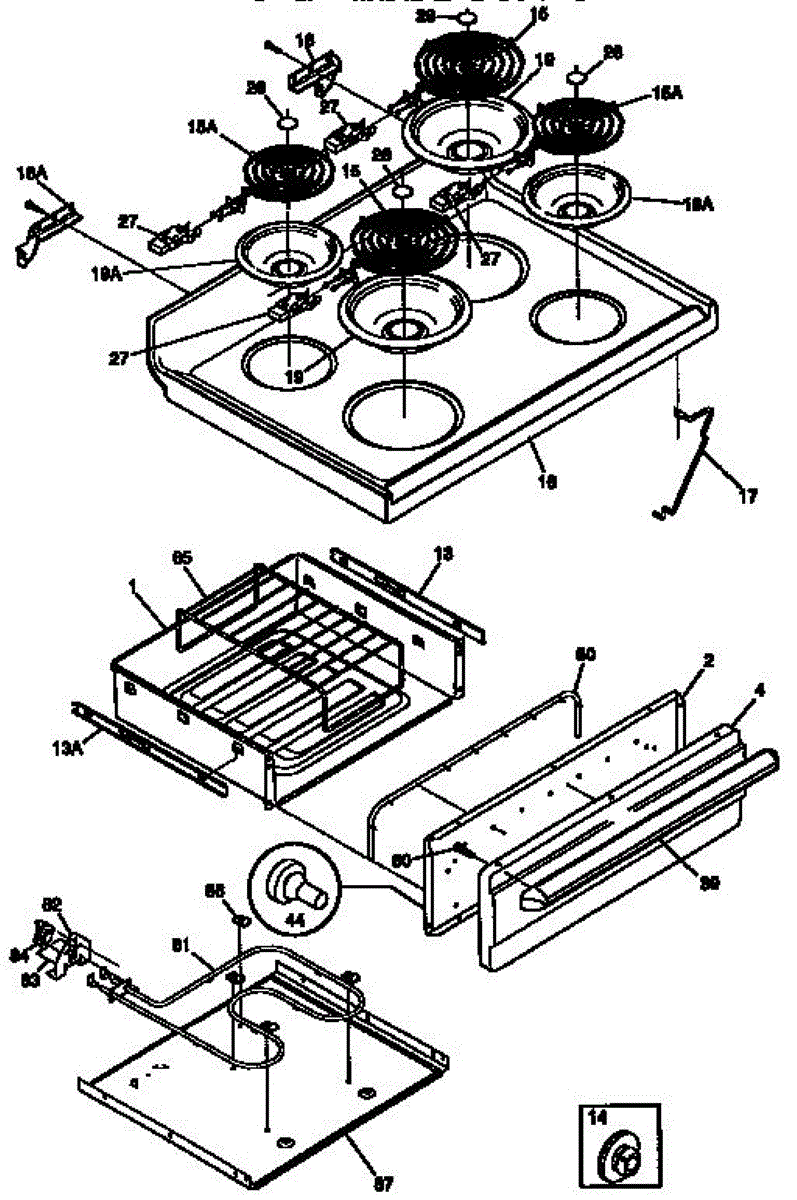

Parts for Kenmore 790.97476790 (79097476790, 790 97476790): Top / Drawer Parts

If your burner isn't heating evenly or won't heat at all, this 6-inch coil element typically solves the problem. Simple plug-in replacement. Video guide.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Main top support rod for electric ranges. Replacement needed when original rod is broken, bent, or damaged. Installs to provide structural support.

Almond 6-inch range drip pan sits beneath the surface element to catch spills and food debris. Replace when discolored, warped, or damaged.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

This is a stainless steel surface burner cap that sits on top of the burner base on a gas range cooktop. It distributes the flame evenly around the burner for consistent cooking heat. Replace this cap if it is warped, discolored, cracked, or if you notice uneven flame patterns or difficulty igniting the burner.

This is a black surface burner cap that sits on top of the burner base to distribute the flame evenly across the cookware. It covers the center of the burner assembly and helps produce a uniform ring of flame. Replace this cap if it is cracked, chipped, warped, or if you notice uneven flame patterns during cooking.

Color: Black. Approx. 29" long.

Rubber bumper that cushions the range door or drawer when closing. Replace if cracked, worn, or missing to prevent rattling and protect surfaces.

Phillips head mounting screw for dishwashers and ranges. Secures internal components and panels. Replace if stripped, rusted, or missing during repairs.

Mounting bracket that secures the heating element in your range. Replace this bracket if it's bent, broken, cracked, or missing to properly support the element.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Secures range wiring to the cabinet to prevent loose or pinched wires. Replace if clips are broken or wires hang loose. Verify fit by model number.

Size: 8-18ab x 0.5 inch.

Push-in plug button that covers openings in the oven bottom panel. Replace if cracked, missing, or broken to keep debris out and maintain a clean finish.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.

Size: 8-32t x 0.500 inch. Color: Black.
