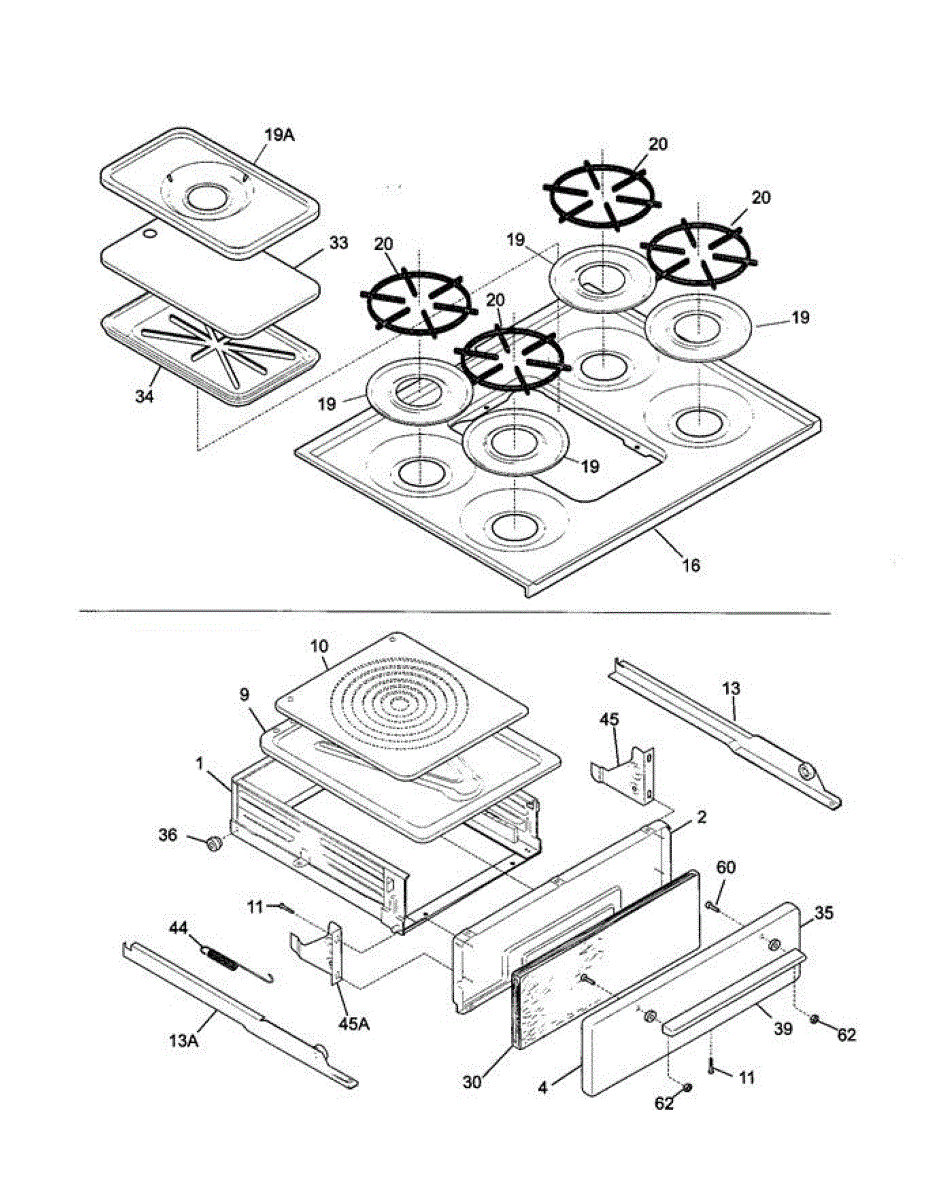

Parts for Tappan TGF645WFD6: Top / Drawer Parts

Drawer assembly for ovens and ranges. Replaces broken, cracked, or damaged drawer components. Essential for restoring storage functionality.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Color: Almond

Color: White

Bisque griddle pan for gas ranges. Sits on top of grates for flat cooking surface. Replace if cracked, warped, discolored, or missing from your cooktop.

Replace your cracked or discolored range griddle cover with this almond-colored housing. Covers and protects the griddle area when not in use.

Replace your range's griddle cover if it's cracked, broken, or missing. This protective cover installs over the griddle surface on your cooktop.

Replacement roller for oven storage or warming drawers. Needed when drawer wheels are cracked, broken, or missing causing difficulty opening or closing.

Replace your cracked, broken, or missing oven drawer handle. This structural component mounts to the front of your storage drawer for opening and closing.

Right-side hinge for oven broiler doors. Replaces damaged, cracked, or broken hinges that prevent proper door alignment and smooth operation.

Left-side broiler door hinge for ovens and ranges. Replaces broken, bent, or worn hinges that prevent proper door operation or alignment.

Replacement 10-24 x 5/8 screw for securing panels, brackets, and trim on ranges and ovens. Needed when original hardware is stripped, missing, or worn.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Cork and rubber spacer for ovens and ranges. Provides cushioning and spacing between components. Replace if worn, cracked, compressed, or missing.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Hex washer head ,10-32 x 0.375. Ground

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
