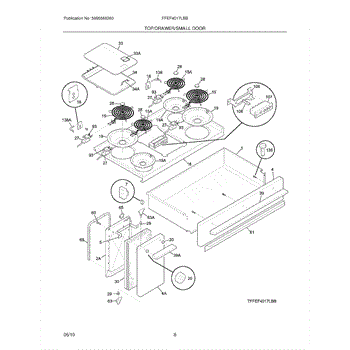

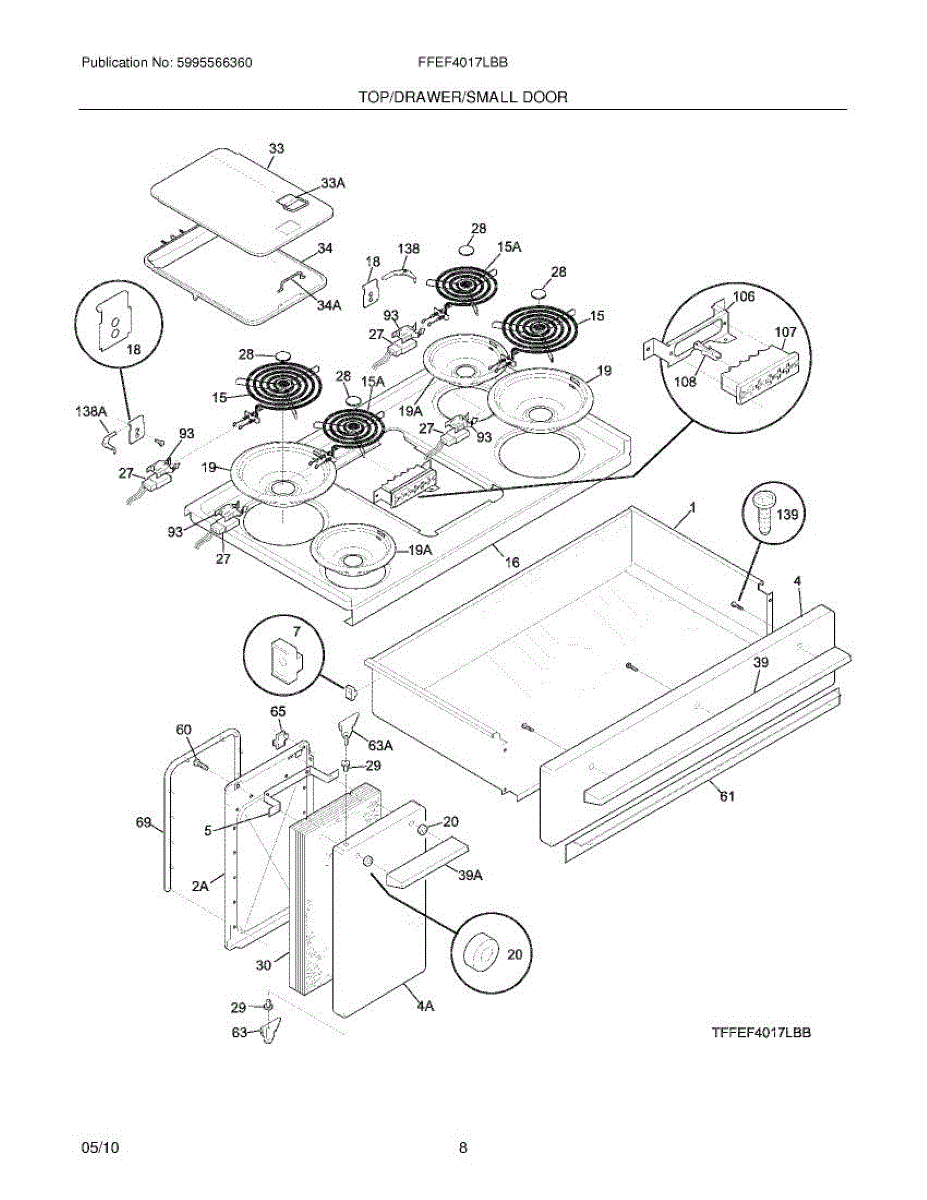

Parts for Frigidaire FFEF4017LBB: 07 - Top / Drawer / Small Door Parts

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

A decorative medallion trim piece that restores the finished look of your appliance front. Replaces a scratched, faded or missing medallion to improve appearance and maintain original styling. What it does:

• Covers and protects the underlying surface while matching the appliance's original finish
• Restores a clean, finished look when the factory medallion is damaged or discolored
• Helps keep grime and moisture out of seams around the emblem area
• Useful when replacing a damaged control/door trim for a consistent appearance

• One medallion decorative trim

• Surface-mount replacement; peel adhesive or fasten per original attachment method
• Clean and dry mounting area before installing for best adhesion
• Handle carefully to avoid scratching the finish during installation

This hinge pin spacer helps position the refrigerator door hinge pin for proper door alignment and smooth operation. It replaces a worn or missing spacer to restore correct hinge spacing and reduce door binding. What it does:

• Holds the hinge pin at the correct height and offset for the upper or lower door hinge
• Helps prevent door sag, misalignment, and uneven sealing
• Reduces metal-on-metal contact and rubbing that can cause noise or wear
• Works at either the upper or lower hinge location as specified for your model

• One hinge pin spacer

• Disconnect power to the appliance or unplug the refrigerator before starting any repair
• Support the door while removing hinge hardware to prevent the door from falling
• Reuse existing hinge pin and hardware unless damaged; replace any worn fasteners

This handle cover protects and finishes the end of a refrigerator door handle, restoring appearance and covering mounting hardware for a clean look. It's a simple cosmetic replacement that helps prevent dirt buildup and wear. What it does:

• Replaces a cracked, faded, or missing door handle end cap
• Covers exposed screws and mounting points for a neater door finish
• Helps keep dirt and moisture out of the handle mounting area
• Restores the original appearance of the door handle

• Basic screw or snap-on installation; handle may need loosening or removal to install
• Turn off power to the appliance only if required by your model's service instructions
• Use proper tools and avoid overtightening fasteners to prevent cracking

This griddle handle secures and lets you lift or move a removable griddle surface safely and easily. It restores a firm grip so you can position or remove the griddle without touching hot metal. What it does:

• Attaches to the griddle edge to provide a stable, ergonomic grip
• Enables safe lifting, positioning, and removal of the griddle
• Helps prevent hand contact with hot surfaces during use or cleaning
• Fits the griddle designated for compatible Frigidaire ranges

• One griddle handle

• Ensure appliance and griddle are completely cool before installing
• Fasten with the original screws or hardware; do not overtighten
• If screws or clips are missing or damaged, replace them with OEM-specified hardware

Hex washer head ,10-32 x 0.375. Ground

This terminal block provides the appliance's main power connection point, replacing a worn or damaged power-connection block to restore a secure electrical hookup and reliable operation. What it does:

• Secures the incoming power cord to the appliance and provides the electrical connection to internal wiring
• Prevents loose or arcing connections that can cause intermittent power or scorch marks
• Commonly replaced when the cord connection is burned, melted, or wires are loose
• Helps restore normal power delivery when the appliance does not receive consistent voltage

• One terminal block assembly

• Disconnect all power at the breaker or fuse box before servicing
• Confirm wiring colors and terminal positions match original setup before reconnecting
• Tighten terminal screws securely but avoid over-torquing; ensure all wires are fully seated

This terminal block provides the appliance's main power connection point, replacing a worn or damaged power-connection block to restore a secure electrical hookup and reliable operation. What it does:

• Secures the incoming power cord to the appliance and provides the electrical connection to internal wiring
• Prevents loose or arcing connections that can cause intermittent power or scorch marks
• Commonly replaced when the cord connection is burned, melted, or wires are loose
• Helps restore normal power delivery when the appliance does not receive consistent voltage

• One terminal block assembly

• Disconnect all power at the breaker or fuse box before servicing
• Confirm wiring colors and terminal positions match original setup before reconnecting
• Tighten terminal screws securely but avoid over-torquing; ensure all wires are fully seated

This left hinge pin secures and guides a refrigerator door's pivot at the hinge assembly, restoring proper alignment and smooth opening. Use it to stop door sag, eliminate catching, and help the seal close evenly. What it does:

• Fits into the left hinge assembly to act as the pivot point for the door
• Keeps the door aligned so it opens and closes smoothly
• Prevents door sag and rubbing that can cause gaps or uneven sealing
• Common symptoms this part helps with: door won't stay closed, door leans or drags, noisy or stiff hinge movement

• One left-side hinge pin

• Support the door before removing hinge fasteners to prevent injury or damage
• Remove items from the door and, if present, disconnect any electrical connectors on the door first
• Use proper tools and keep track of hinge screws/washers during reassembly

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

This rivet is a small, durable fastener used to secure panels and trim on household appliances. It restores a tight, stable fit where a worn or broken rivet has allowed parts to loosen or rattle. What it does

• Fastens appliance panels, trim, or brackets where a permanent or semi-permanent hold is required
• Prevents panel movement, vibration noise, and misalignment caused by a missing or damaged rivet
• Common replacement when the original rivet is sheared, corroded, or deformed
• Matches OEM fit and function for a secure repair in the intended location

• Intended for use with the specific rivet hole size and material
• Installation typically requires a rivet tool or appropriate driving punch and should be done with care to avoid panel damage
• Disconnect power and follow appliance safety procedures before working on the unit
• If replacing multiple fasteners or damaged surrounding material, inspect adjacent parts and replace as needed

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
