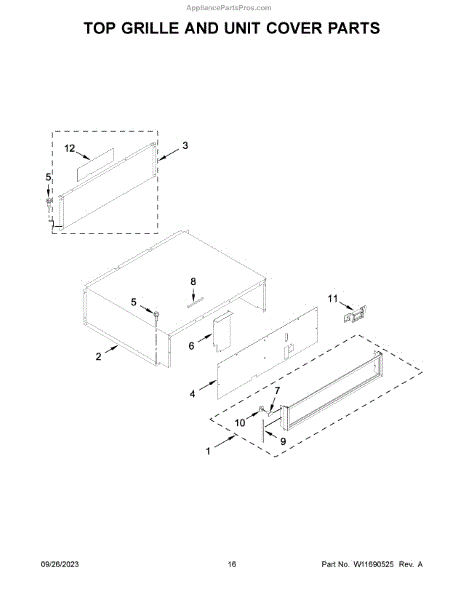

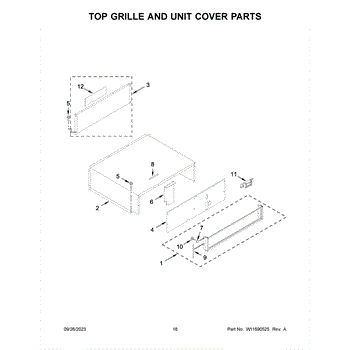

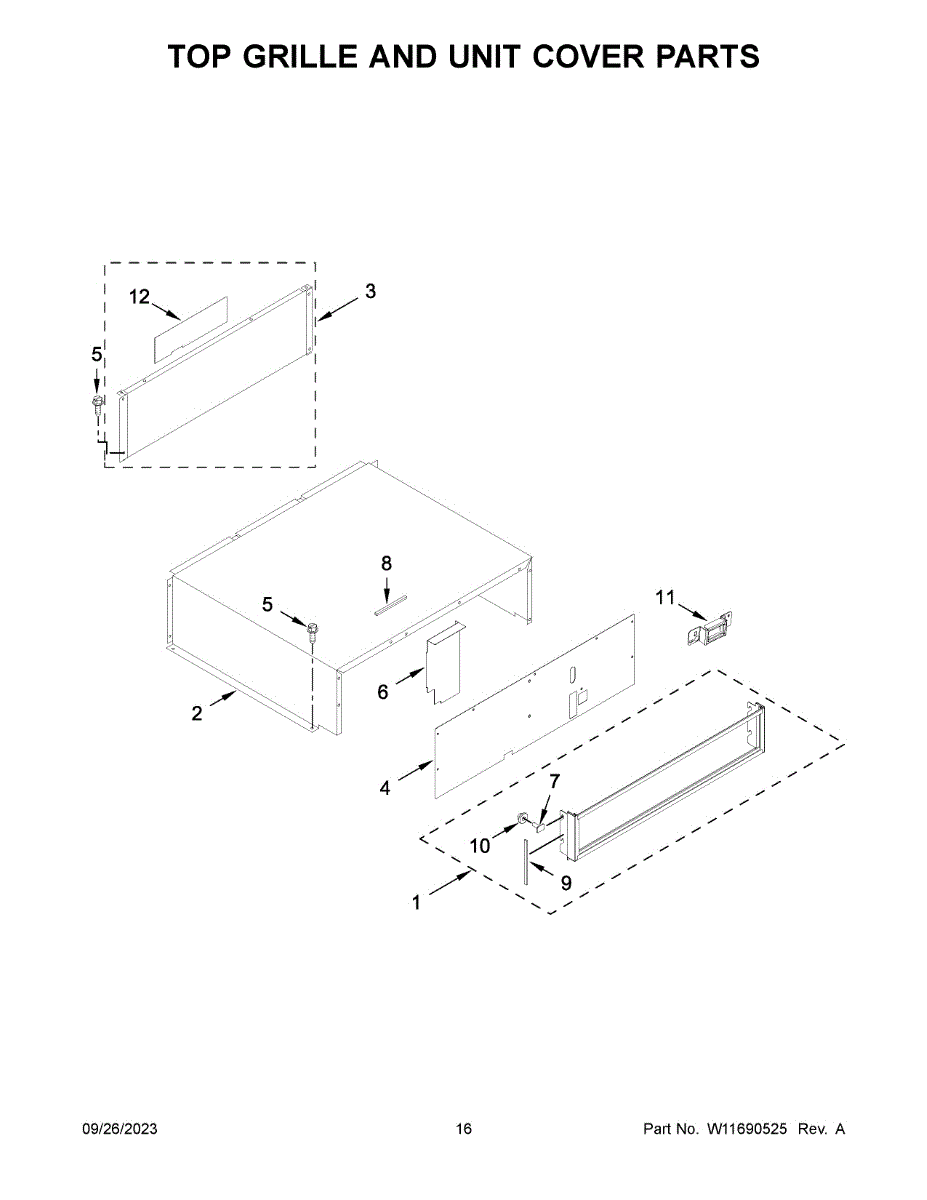

Parts for Kitchenaid KBFN502EPA05: Top Grille And Unit Cover Parts

This upper grille assembly frame replaces a cracked or damaged refrigerator grille to restore a clean front appearance and secure the top trim area. It helps conceal components while maintaining proper airflow around the cabinet top. What it does:

• Replaces the upper front grille/frame that covers the top trim and control area
• Restores finished appearance when original is cracked, warped, or broken
• Helps hold adjacent trim and control panels in place for a snug fit
• Reduces rattling or draft issues caused by a loose or missing grille

• One upper grille assembly/frame

• Disconnect power to the appliance before starting any repair
• Remove any trim clips or screws holding the old grille; careful prying may be required
• Retain original mounting hardware unless replacement is specified

This door gasket is the replacement seal for an oven door that helps keep heat and smoke inside the cavity for more consistent cooking and safer operation. It restores a tight edge between the door and oven frame to reduce heat loss. What it does

• Seals the oven door to maintain internal temperature and cooking performance
• Helps prevent heat and smoke from escaping into the kitchen
• Reduces energy loss caused by a worn or damaged seal
• Visible wear, cracks, or a loose fit can cause uneven baking or longer cook times
• Often replaced when the existing gasket is brittle, torn, or no longer holds shape

• One oven door gasket

• High-level swap: remove the oven door or open per the oven manual and pull the old gasket free from its channel, then press the new gasket into place
• Clean the gasket channel before installation to ensure a proper seal
• Use care to avoid bending or nicking the gasket material during installation
• Disconnect power to the appliance before working on the oven and follow OEM safety instructions

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.
