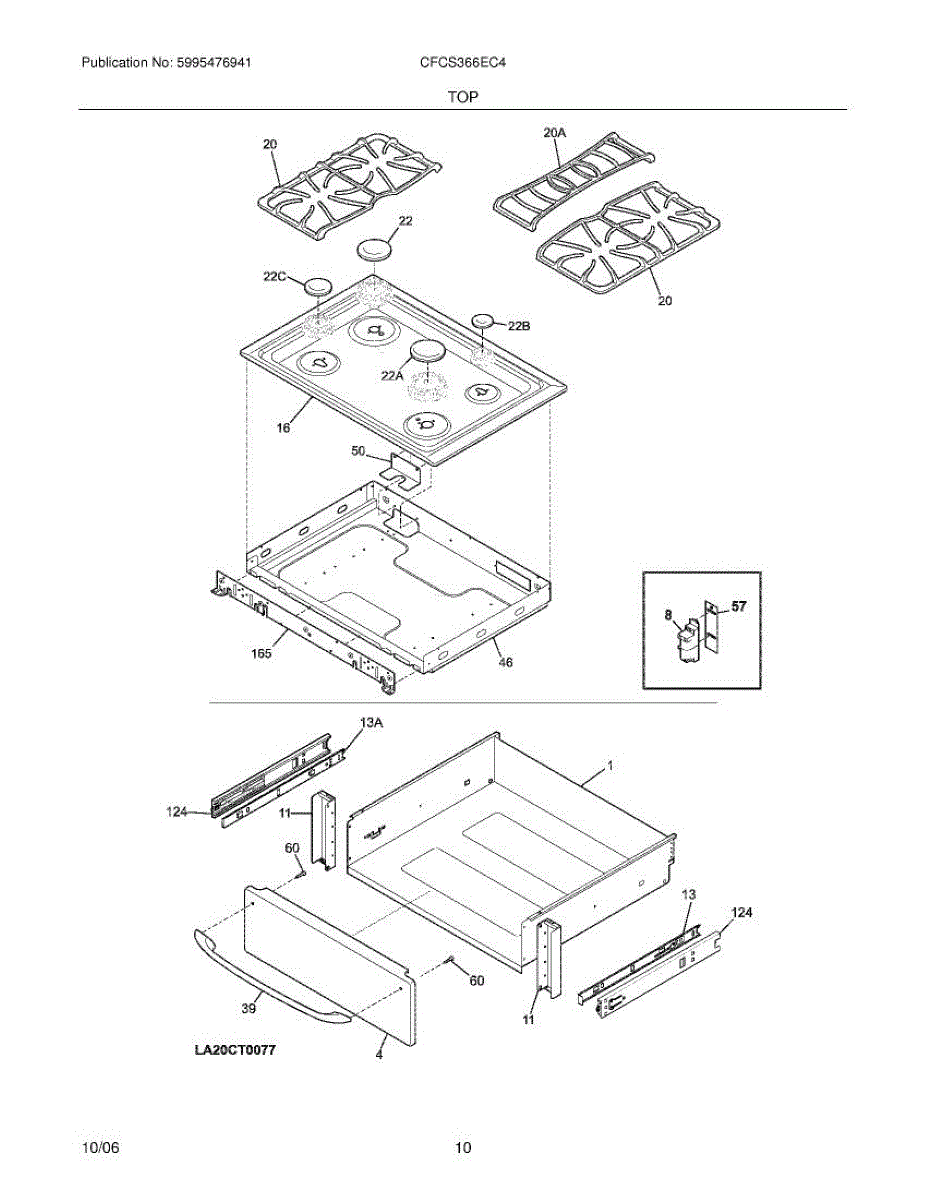

Parts for Frigidaire CFCS366EC4: 09 - Top Parts

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This glide is a low-friction slide used in select cooking appliances to support and guide a moving component, such as a lower drawer. Replacing a worn or broken glide restores smooth travel and proper alignment without sticking or scraping.

• Provides a smooth sliding surface for the mating part
• Helps keep the component aligned as it opens and closes
• Reduces friction and wear during movement
• Failure symptoms include sticking, scraping noises, uneven travel, or the component coming off track

• Disconnect power and allow the appliance to cool before servicing
• Remove the sliding component (e.g., drawer) to access the glide
• Remove the damaged glide and install the new one, transferring any screws or clips as needed
• Reinstall and test to ensure smooth, even movement

This glide is the low-friction slide piece used in select Frigidaire ranges and wall ovens to support a moving component. Replacing a worn glide restores smooth in-and-out movement, reduces binding, and helps prevent premature wear on mating rails. What it does:

• Provides a smooth, low-friction surface for a sliding drawer or rack
• Helps keep the component aligned on its track to avoid binding
• Reduces sticking and scraping noises during operation
• Common symptoms: hard-to-open/close movement, uneven travel, wobbling, or a visibly cracked/missing glide

• One glide

• Disconnect power and allow the appliance to cool before servicing
• Remove the drawer or rack to access the glide location
• Release screws or tabs securing the old glide; transfer any reusable hardware
• Install the new glide, and test for smooth travel

Note: Due to a factory change, the new glide may be shorter than your original. Per Factory: The original part was 19.75". The new part is 16.25" and will install and function the same.

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
