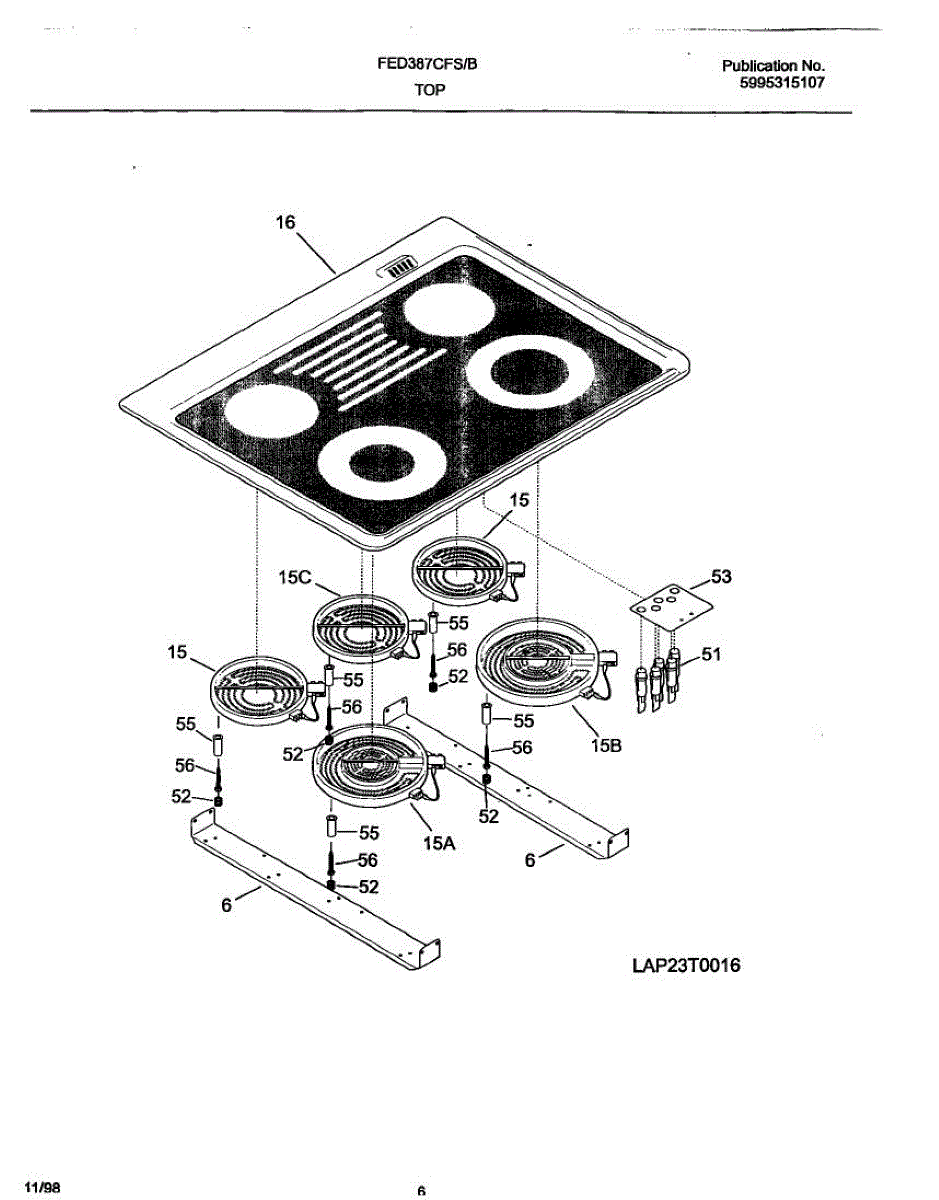

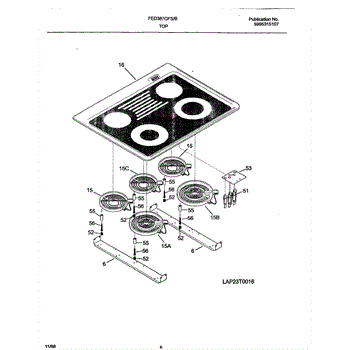

Parts for Frigidaire FED387CFBC: 07 - Top Parts

This is a 9 inch, Dual 700 and 2100 watt, radiant heating element. Includes limit switch.

Warmer

This dual surface element restores steady, selectable heat to a cooking zone on your electric range or cooktop. It provides two heating areas in one burner position so you can match heat output to small or larger cookware.

• Heats cookware by energizing the inner ring alone or both inner and outer rings together
• Helps resolve issues such as a surface burner not heating, only one ring heating, or intermittent/uneven heat
• Replaces a cracked, blistered, or visibly damaged element to restore reliable performance

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element from beneath the cooktop; photograph wire locations for reference
• Carefully transfer any brackets, clips, or attached limiter from the original element if required
• Avoid touching the element surface; secure all connections and test both inner and dual settings after reassembly

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
