Parts for Kenmore 790.36709505 (79036709505, 790 36709505): Top Parts

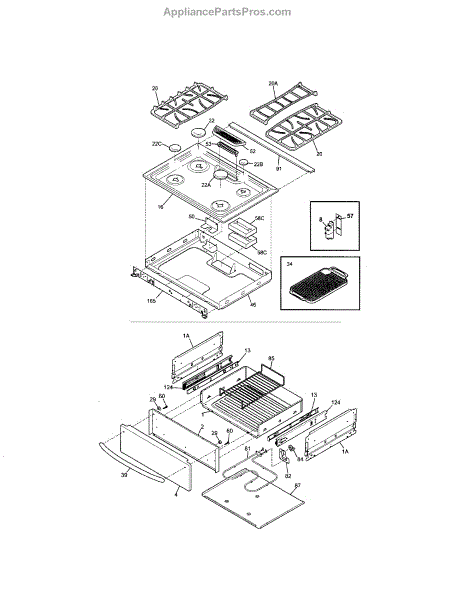

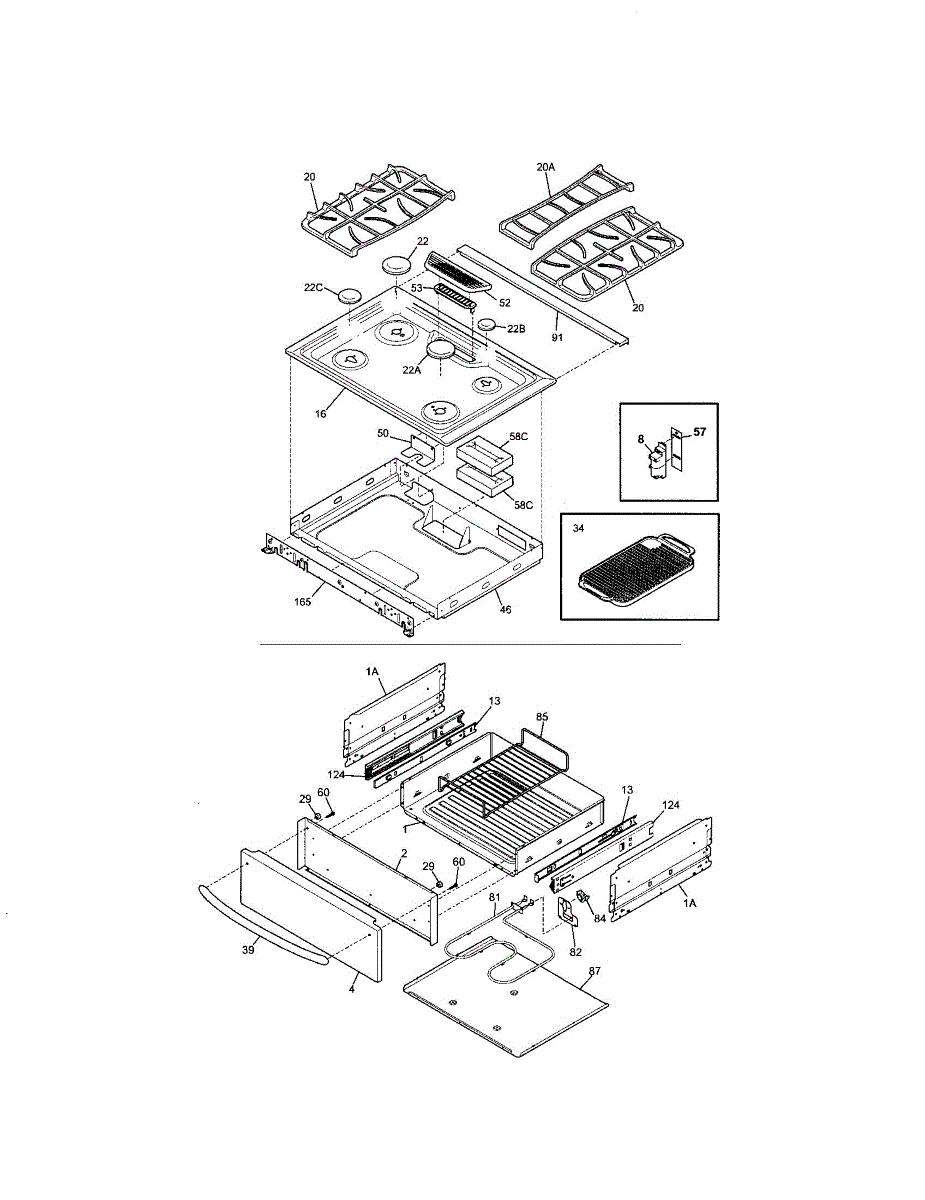

This repair parts list is a reference diagram that shows the appliance's internal components and OEM part numbers to help you identify and order the correct replacement parts quickly. What it does:

• Shows exploded views and part numbers so you can identify the exact replacement needed
• Helps prevent ordering the wrong part when components look similar
• Useful for locating parts on assemblies during diagnostics or teardown
• Supports service planning by listing quantities and component names

• This item is a reference document, not a hardware replacement; use it to identify parts before ordering
• Keep the document dry and free of damage for future reference
• Follow all safety guidelines and disconnect power before servicing the appliance

This is a metal or finished side panel that attaches to the warming drawer section of the range. It provides structural support and a clean exterior appearance on the side of the drawer compartment. Replace this panel if it is dented, scratched, rusted, or missing, which can affect both the look and proper operation of the warming drawer.

Replaces cracked, broken, or damaged control panel trim on your range. This decorative panel covers the control area and restores a clean finish.

This is the front panel for the storage drawer located beneath the oven compartment. It serves as the visible face of the drawer and provides structural support for the drawer assembly. Replace this panel if it is cracked, warped, discolored, or if the finish has peeled or chipped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

This is a wiring harness that routes electrical connections between the control board, heating elements, switches, and other components inside the range. It ensures proper power distribution and signal communication throughout the appliance. Replace this harness if you experience intermittent heating, error codes, or if the wiring shows signs of heat damage, melting, or broken connectors.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Low-friction slide piece that supports moving components in your range or wall oven. Replace worn or cracked glides to restore smooth operation.

Low-friction glide that supports and guides range drawer movement. Replace if cracked, broken, or worn to restore smooth sliding without sticking or scraping.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

This wiring harness is the factory-style electrical assembly that connects appliance controls and components for reliable power and signal routing. Replacing a damaged harness restores proper electrical connections and helps resolve intermittent or failed operation. What it does:

• Routes power and control signals between the control module and components
• Restores reliable electrical connections when wires or connectors are damaged
• Helps correct symptoms such as intermittent power, failed cycles, or non-responsive controls
• Prevents shorts and arcing caused by exposed or frayed wiring when correctly installed

• Disconnect power (unplug appliance or switch off breaker) before servicing to avoid shock or injury
• Inspect connectors and mounting points; secure harness away from heat and moving parts
• Use proper strain relief and routing to prevent chafing or contact with sharp edges

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Anti-tip warning label for electric ranges. Replaces faded, peeling, or missing safety labels on the anti-tip bracket. Ensures compliance with safety standards.

Color: Black

Rubber bumper cushions oven or range doors to reduce noise and prevent metal contact. Replace if cracked, worn, or missing to restore proper seating.

Replacement handle for your range door. Installs on the front exterior to provide a grip for opening and closing. Order if your current handle is cracked or broken.

Replacement door handle for your range. Installs on the oven door to provide grip for opening and closing. Order a new handle if yours is cracked or broken.

This is a bisque-colored cover that fits over the oven vent opening on the rear of the cooktop surface. It allows hot air and steam to escape the oven cavity during cooking while keeping debris from falling inside. Replace this cover if it is cracked, discolored beyond the original bisque finish, or missing entirely.

This outer housing cover restores the refrigerator's finished appearance and protects internal components from dirt and accidental contact. It provides a clean trim surface and helps maintain proper airflow around covered areas. What it does

• Covers and protects internal components and wiring from spills, dust, and impact.
• Restores a secure, finished appearance where a cracked or missing cover leaves exposed parts.
• Helps eliminate rattles or gaps caused by broken or loose trim pieces.
• Prevents accidental contact with moving parts or electrical connections behind the cover.

• Disconnect power to the appliance before starting any work.
• Most installs require removing adjacent trim or fasteners; keep screws and clips for reassembly.
• Handle plastic clips and tabs carefully—damaged clips may require replacement.
• If alignment is difficult, check for obstructing components or bent mounting tabs before forcing the part into place.

This outer housing cover restores the refrigerator's finished appearance and protects internal components from dirt and accidental contact. It provides a clean trim surface and helps maintain proper airflow around covered areas. What it does

• Covers and protects internal components and wiring from spills, dust, and impact.
• Restores a secure, finished appearance where a cracked or missing cover leaves exposed parts.
• Helps eliminate rattles or gaps caused by broken or loose trim pieces.
• Prevents accidental contact with moving parts or electrical connections behind the cover.

• Disconnect power to the appliance before starting any work.
• Most installs require removing adjacent trim or fasteners; keep screws and clips for reassembly.
• Handle plastic clips and tabs carefully—damaged clips may require replacement.
• If alignment is difficult, check for obstructing components or bent mounting tabs before forcing the part into place.

Replacement insulation for range oven doors. Installs between door panels to retain heat and improve efficiency. Replace if compressed, torn, or missing.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

This is the electric heating element located inside the warming drawer of a range. It provides low, steady heat to keep cooked food warm until serving. Replace this element if the warming drawer no longer heats, heats unevenly, or if the element is visibly damaged or burned out.

Oven not heating to set temperature or heating too slowly? This thermostat controls oven temperature cycling. Test for continuity to diagnose the issue.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Replace your range's control panel if the original is cracked, damaged, or showing wear. This panel mounts to the front and houses control components.

Decorative finishing panel that covers exposed edges on your range for a clean appearance. Replaces cracked, broken, or missing trim to restore look.

Decorative trim piece that covers mounting edges on your range door or control panel. Replaces scratched, dented, or missing trim for a clean finish.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.
