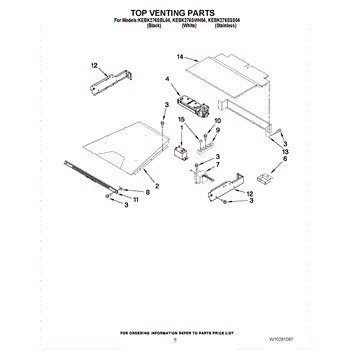

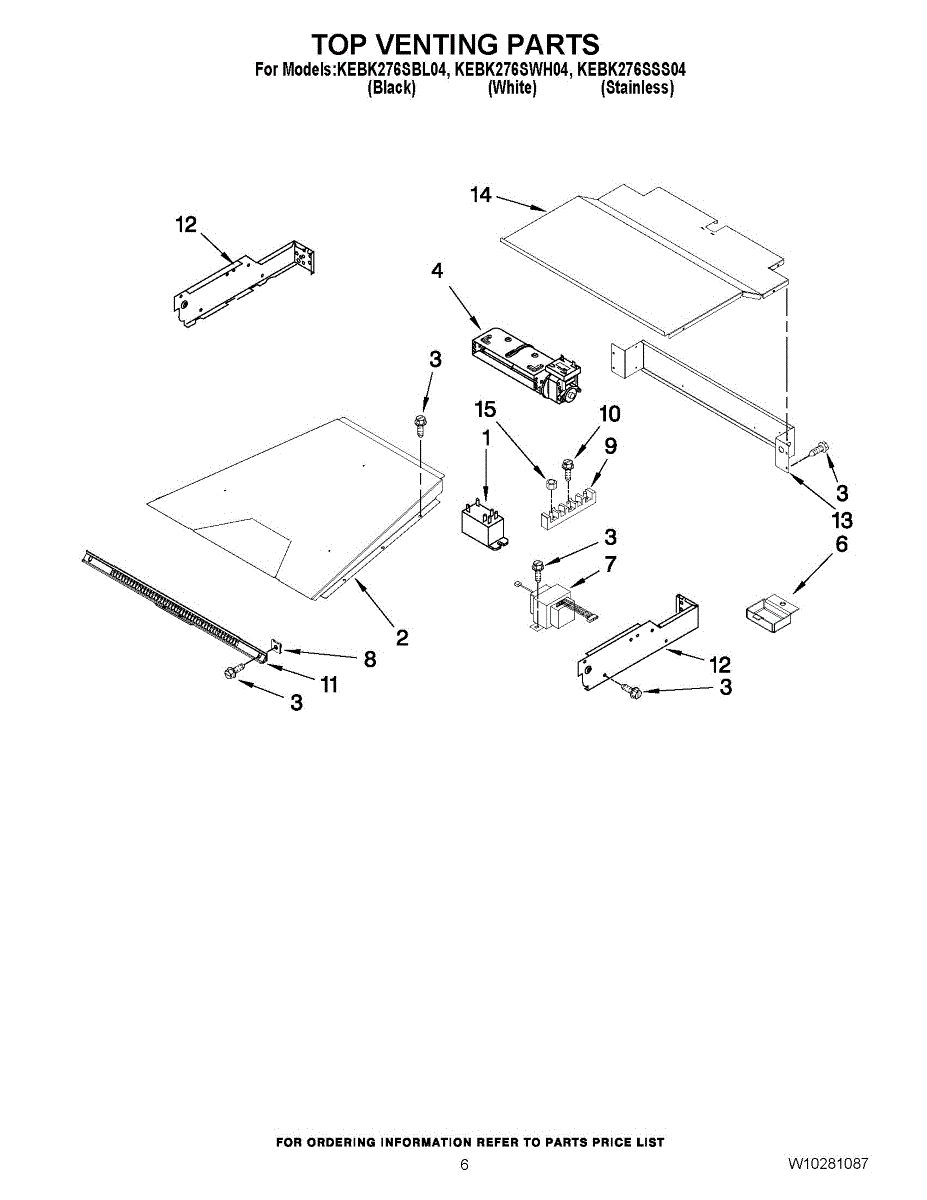

Parts for Kitchenaid KEBK276SBL04: 05 - Top Venting Parts

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This part is a cooling fan assembly that is made for wall ovens. The primary function of this part is to circulate the air throughout the oven control area. This keeps the controls, wiring, and other components cool while the oven is in use.In the vent that the control panel itself becomes hot while the oven is running, it is likely that the cooling fan is not working. Some users report a loud rattling noise when this part has gone bad. Be sure to let the oven cool completely before replacing this part. Disconnect the wall oven from its power source before attempting to replace this part. Allow the appliance plenty of time to cool down before starting. Wear work gloves for safety.This specific cooling fan assembly is compatible with wall ovens that are manufactured by the Whirlpool brand, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper. It is sold individually and is sourced from the manufacturer.

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

This control transformer reduces incoming line voltage to the low voltage required by the appliance's control circuit or lighting. Replacing a failed transformer restores proper power to the controls so the unit operates as designed. What it does:

• Steps down household line power to low voltage for control boards, relays, or lighting circuits
• Provides electrical isolation to help protect sensitive control components
• A failed transformer may leave the control/display dead or make low-voltage features (like lights) inoperative; may also blow a fuse

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram; transfer wires one at a time to the matching terminals
• Mount securely in the original location; keep wires clear of sharp edges and heat sources
• If a fuse opened, inspect wiring and downstream loads for shorts before restoring power

U-type clip

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block
