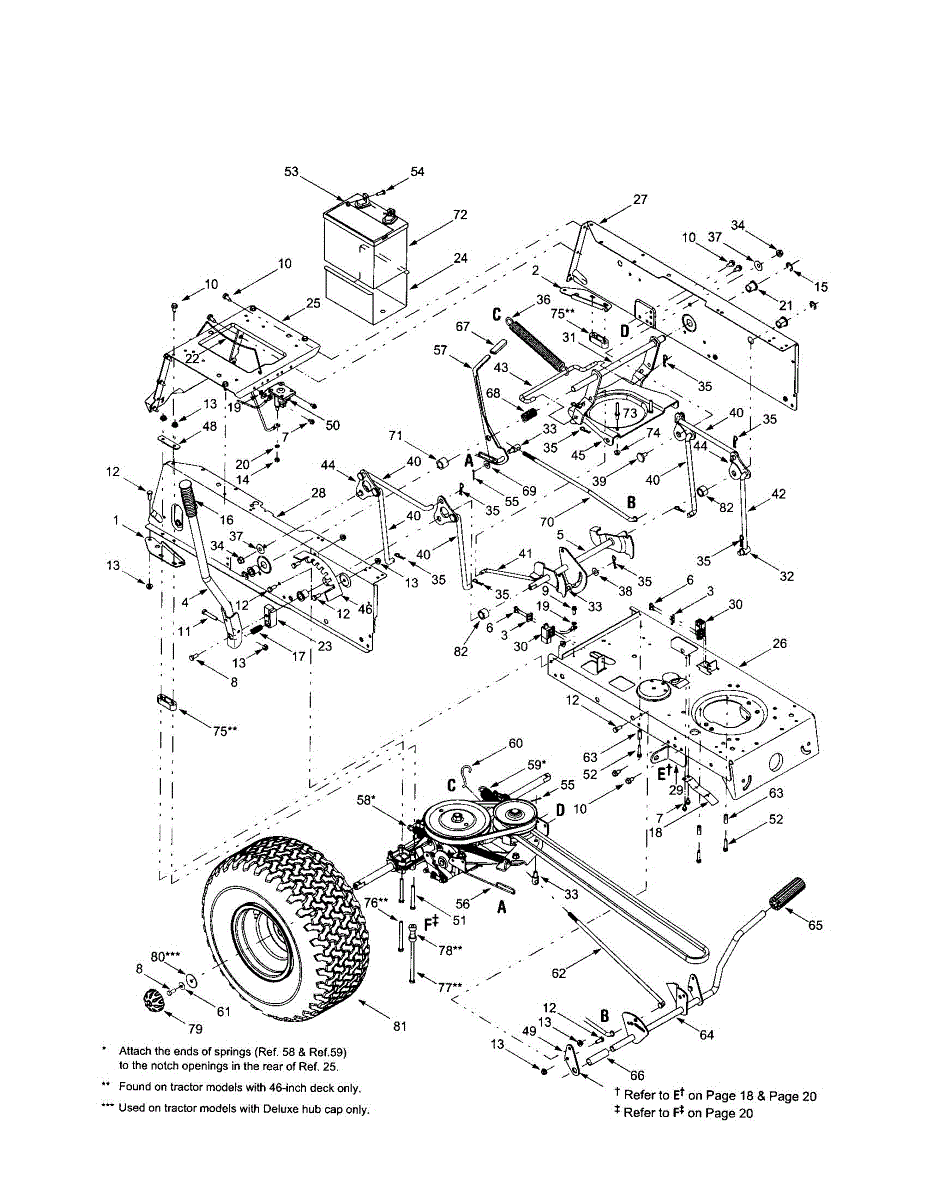

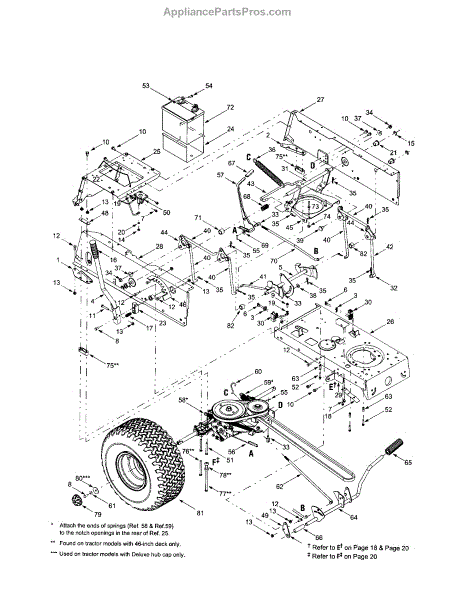

Parts for Mtd 688: Transaxle Parts

This replacement part is a shaft assembly. It is a genuine replacement part made by MTD. This part is responsible for helping the user control the gears and other functions in the machine.A new shaft assembly might be needed if the user notices that the current part is damaged in any way. If the shaft assembly is dented, cracked, or chipped, it might be a good idea to replace this part. If the user is unable to operate this part they might be unable to control the different gears in the machine. If this is the case it will not operate effectively. Be sure the engine is completely powered down before replacing this part. This shaft assembly is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This genuine OEM replacement part is a flange bearing designed to be used with a wide range of lawn tractors. A bearing is a mechanical part made to restrict movement and prevent other parts from shifting about in the tractor. This is a flange bearing, referring to its particular shape. The bearing slides into place while the flange creates an added layer of protection around the connection. While restricting motion, bearings experience a lot of friction. After a long period, a bearing may eventually begin to wear away and other parts may start to feel loose or pull apart. This can cause more widespread damage in a lawn tractor, such as a broken suspension or disconnected lower deck. The difficulty of this repair will depend largely on where the flange bearing that needs replacing is located. The odds are that any repair will require a socket wrench set, a screwdriver, and a pair of pliers to access any flange bearing. This replacement flange bearing is sourced from its original manufacturer and will fit tractors made by Ryobi, MTD, Bolens, Troy-Bilt, Cub Cadet, Yard Man, and Yard Machines. This part does not include any additional hardware.

This battery tray is a genuine Husqvarna part, sold individually. This battery tray can be used as a replacement part in a lawn mower. This part holds the battery in the mower.The battery tray could be dented, cracked, punctured, warped, or eroded, and may not be able to hold the battery safely in place. If this occurs, the battery tray should be removed and replaced by this genuine OEM replacement part in accordance with the proper set of instructions sourced from a relevant appliance manual.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This battery tray is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Ryobi, Yard Machines, and Bolens.

This is a ferrule that can be used as a replacement part for repairing or adjusting compatible mowers. A ferrule is a fastener that can be used to join two pieces together and is typically connected with a cotter pin. It can be found in latch assemblies and variable speed pulley brackets. It is not to be confused with wire ferrules that are crimp wires.If this part becomes damaged or corroded, it should be replaced. The replacement process is simple. Wear gloves for safety. Make sure that the mower is off and cool before starting a replacement.The ferrule is for use with some models of mowers from MTD, Ryobi, Yard-Man, Troy-Bilt, Husky, Bolens, and Yard Machines. The piece is sold individually and is a genuine OEM replacement part.

This replacement part is a cotter pin. This is a genuine replacement part made by MTD. This part is small but important to the overall workings of different equipment. Cotter pins are able to secure certain parts in place so that they are safe and effective during use. A new cotter pin might be needed if the current one has become logged in place or is missing altogether. If the pin has been bent, it is possible that it is no longer working effectively. It is also possible that the pin can become lodged into place over time due to normal wear and tear. Wear work gloves when working with small parts. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

This extension spring is a genuine MTD part, sold individually. This extension spring can be used as a replacement part in a lawn mower. The purpose of an extension spring in a lawn mower is to hold components in place while still allowing for movement.If the extension spring loses its tension or if an accident warps the component so that it can no longer function as a fastening part, the extension spring should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This extension spring is compatible with the following outdoor appliance brands: MTD, Ryobi, Yard Machines, Troy-Bilt, and Bolens.

This replacement part is a rear stabilizer rod. This is a genuine replacement part made by MTD. This part is commonly found in different types of lawn mowers and is used to ensure the stability of the entire machine during use. A new rear stabilizer rod might be needed if the current one is not working properly. This can mean that the part is off balance and can no longer keep the machine stable. This can cause other issues down the line, so it is recommended that it be replaced right away. Be sure the engine is turned completely off before beginning this repair. Work gloves are also recommended when working closely to the engine. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use. This part is sold individually and is sourced directly from the manufacturer.

This is a deck lift index bracket replacement for lawnmowers. The piece is used on mowers to help make it easier to adjust the height of the mower deck. This allows users to achieve different heights when cutting grass. The piece attaches to the upper frame of the mower. If it is not functioning properly, it will not be possible to change the height of the mower deck.The bracket is made from durable metal, but it could still have issues over time. Parts of the bracket could break or bend. there is also the chance that it could become corroded and could break. If this happens, it should be replaced as soon as possible. To replace the bracket, a wrench.This replacement deck lift index bracket is compatible with models of mowers from MTD, Ryobi, Yard Machines, Bolens, Yard-Man, Troy-Bilt, and Husky. It is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

This replacement part is a brake spring. This is a genuine replacement part made by MTD. Brake springs assist in ensuring that the brake is able to properly stop the equipment. A new brake spring might be needed if the current one is missing or damaged in any way. Due to the nature of the spring, it could become brittle and snap after years of normal use. If this is the case, be sure to replace this spring as soon as possible. Work gloves are recommended as this part can be dangerous if handled improperly. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in a lawnmower. The purpose of a spacer in a lawnmower is to attach to the deck shell and create a space between one or more components such that friction can be reduced during use.The spacer in a lawnmower is a small fastening component that can be easily lost or misplaced; additionally, the spacer can be damaged during the standard lifespan of the lawnmower that can render it beyond functionality. If the spacer is lost or misplaced, or if the spacer is punctured, dented, warped, eroded, or otherwise damaged, the spacer should be removed and replaced by this genuine OEM replacement part as soon as possible. A replacement will ensure that the appliance continues to function as usual.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, Ryobi, Bolens, Yard-Man, Cub Cadet, and Husky.

This replacement part is a grip shift handle. It is intended for use in lawn mowers and allows the user to shift from the seated position. The grip shift reduces the amount of pressure the pedals experience. If the user cannot grip this part, it is best to replace it so that the machine can return to working order. If the user noticed that the equipment is unable to shift smoothly, the grip shift may have become worn down over time. This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

Battery does NOT contain battery acid

Battery does NOT contain battery acid

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.
