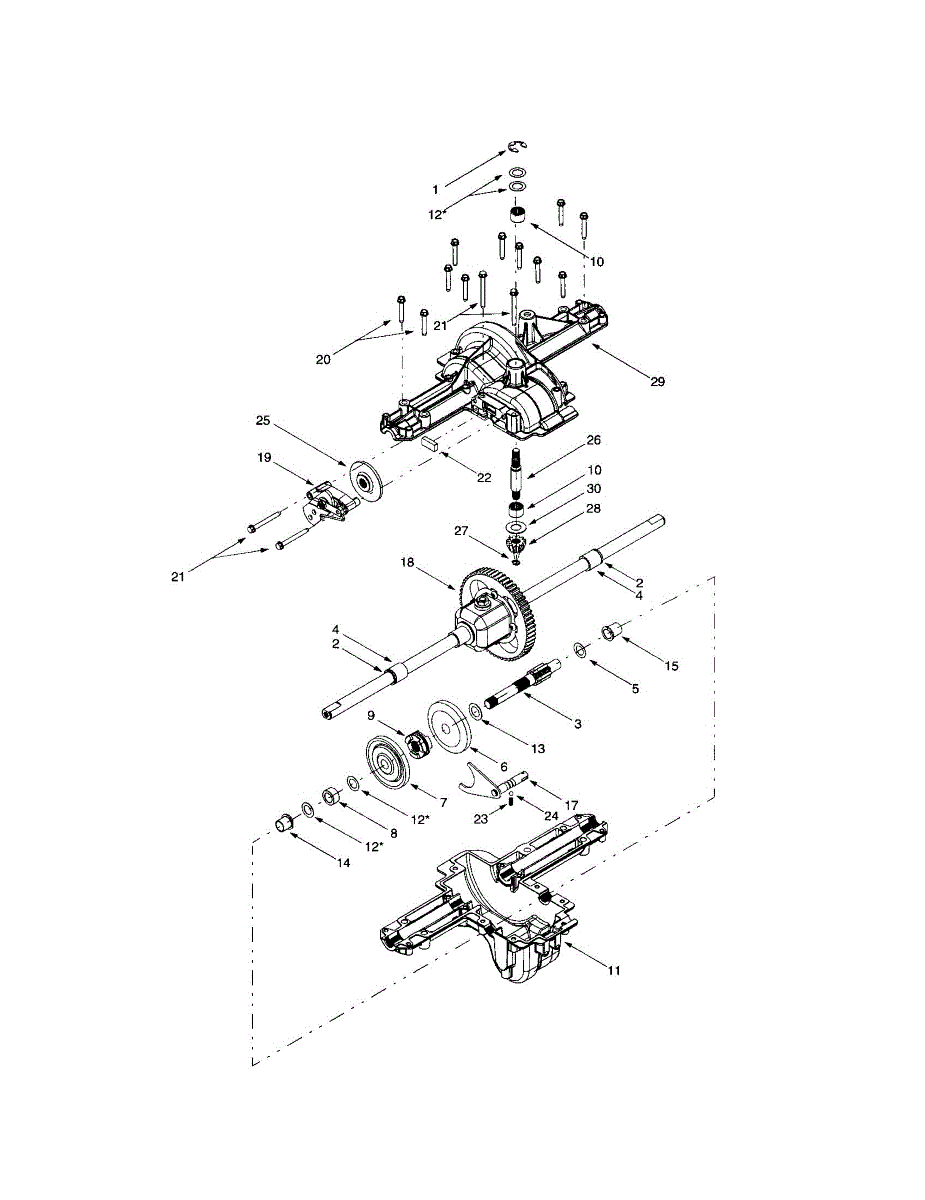

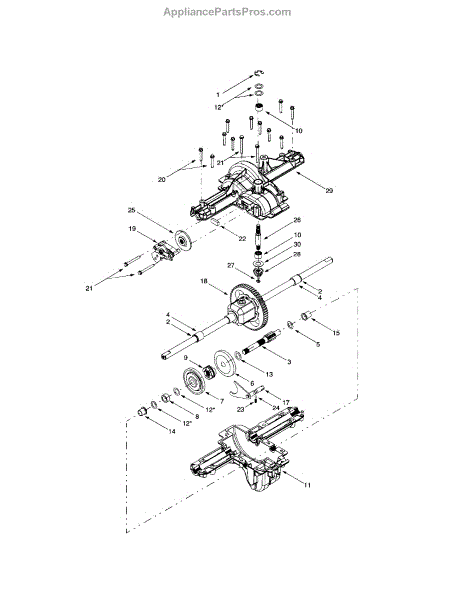

Parts for Troy-Bilt 13AY609H063: Transaxle Parts

Retaining ring for lawn tractors and mowers. Secures components in place on axles, shafts, or assemblies. Replace if missing, damaged, or worn.

Connects headlight wiring to enable on/off control. Replace if lights fail, wires are damaged, or connections are corroded. Confirm fit with your model.

Fix electrical issues on your lawn tractor with this wiring harness assembly. Restores proper connections between engine, ignition, and controls.

The bearing sleeve is an authentic part designed for use with lawn tractors of the riding variety. This bearing sleeve is located on the transmission shaft and used to assist in securing the bearing in its place. The location of this part means that it is susceptible to constant vibrations and other threats. This part can wear down over time and eventually require a replacement, or need to be replaced as a result of damage or a direct impact. Using a genuine product like this replacement bearing sleeve will provide an exact fit for compatible models. This genuine OEM bearing sleeve is manufactured to specific standards by MTD. It is compatible with tractors from MTD, RYOBI, Bolens, Yard Machines, Cub Cadet, HUSKEE, Yard Man, and Troy-Bilt. There are hundreds of tractors that can use this specific bearing sleeve. It is made of durable metal and sold as an individual unit. A wrench will be required for this part replacement, but it is an easy task that should not take a lot of time. Always disengage the engine before starting any repairs and ensure that it is not hot to avoid burns or causing potential damage.

Engine thrust washer for lawn tractors and mowers. Provides critical spacing between engine components. Replace if worn or damaged to prevent friction issues.

Fix lawn tractor drive issues with this bevel gear. Reverses shaft rotation for proper wheel engagement. Common repair for loss of forward motion.

If your lawn tractor won't engage properly or makes grinding noises, a worn bevel gear may be the cause. This gear transmits power within the drive system.

This clutch collar is an authentic OEM part sourced directly from the manufacturer for use in lawnmowers and lawn tractors. If there are problems with the lawnmower jerking and sputtering after changing gears, the clutch collar should be removed and replaced to keep the lawnmower running properly. The clutch collar is part of the clutch bearing. The clutch collar is used between bevel gears as spacers and allows them to move in sync with the pinion gear. If the clutch collar is deteriorated, broken, or missing, a new one should be installed.Make sure the lawnmower is on a flat surface. Remove the spark plug and disconnect the battery. A screwdriver, pliers, socket set, wrench set, and nut driver are required to make this repair. Take the transmission out of the lawnmower. Open the case on the transmission and remove the broken clutch collar. Install the new clutch collar. Reverse the process to reassemble the lawnmower. This clutch collar is a high tensile metal part that is sold individually. It is designed for use in lawn tractors manufactured by Craftsman.

This washer is compatible with most lawn mowers and lawn tractors. The smooth, round edges fit perfectly with 5/8-inch bolts to attach the bolts to parts on the mower, as necessary. The washer provides a buffer between the bolt and the surface that it is being attached to. They are highly recommended for protecting parts that are being fastened together.The lack of a washer can cause permanent damage to the piece that the bolt is attached to. If the bolt does not have a washer to prevent it from moving and rusting, it can cause the bolt to fail. With products such as lawn mowers, this can spell disaster for both the appliance and its handler. These washers are high-quality and will prevent excess corrosion for the bolt. However, moisture and residue left after use can cause the washers to fail. In this case, a replacement will be necessary. This replacement part is compatible with most lawn mowers and tractors. This includes Ace, Ryobi, and MTD. This is an OEM replacement part sourced directly from the manufacturer. Sold individually.

Small metal washer that installs with screws and nuts to secure parts on lawn tractors and outdoor power equipment. Replace if worn, damaged, or missing.

Flat washer for lawn mowers and outdoor power equipment. Replace if washer is missing, damaged, or corroded to ensure proper fastening and fit.

Replacement washer for lawn tractors and mowers. Secures parts by working with screws and nuts. Replace if worn, missing, or damaged during maintenance.

Flange bearing for lawn tractors and walk-behind mowers. Replace when you notice excessive noise, wobbling, or difficulty with blade rotation. Verify fit with your model number before ordering.

Flange bearing for lawn tractors and walk-behind mowers. Replace if you notice excessive noise, vibration, or wheel wobble. Verify fit with your model number.

Lawn tractor detent shaft assembly fixes gear shifting problems and loose transmission engagement. Direct replacement part for precise shift control.

Differential assembly for lawn tractors. Installs in the transmission system to control wheel speed. Replace if cracked, leaking, or worn gears are present.

This is a left hand brake assembly made for use with lawnmowers. The purpose of this part is to create pressure on the pulley so that the blades stop turning when the user turns on the brakes. The part is made of durable materials but contains several small parts. Any of the parts can break or become damaged and cause the brake to need to be replaced. This should be done as soon as possible since brakes that do not work appropriately can be a safety hazard.A basic set of tools and a pair of work gloves are useful for replacing the left hand brake assembly. Take the lawnmower and turn it off before placing it on a steady surface. The spark plug wire should be disconnected for safety. Lower the deck on the mower and remove the mount points before replacing the mower brake on the left side. Test the part before using the tool.The left hand brake assembly is designed to be used with several lawnmowers manufactured by MTD and Cub Cadet. It is an authentic OEM replacement part that is sourced directly from the manufacturer. This part is sold individually.

Hex screw fastener for lawn tractors and outdoor power equipment. Secures components throughout the machine. Replace if stripped, overtightened, or missing.

If your lawn tractor won't stop properly or brakes feel weak, this brake puck creates pressure on the brake disk when you push the pedal. Essential safety part.

Detent shaft spring for lawn tractors and tillers. Replaces worn, broken, or missing springs. Installs on the shift mechanism shaft assembly.

This ball detent is a genuine MTD replacement part for appliances operated by small engines, including lawn tractors, lawn mowers, snowblowers, leaf blowers, chipper shredders, and tillers. The function of a ball detent is to temporarily keep two parts in place relative to one another, as one or both of the parts rotate.A ball detent might have to be replaced in the event that it suffers damage over time or is lost or misplaced. It is possible for ball detents to fall out of their spot, meaning that the parts that it ordinarily holds in place will not be able to rotate properly. Additionally, a ball detent might have to be replaced if there is material deterioration. If this occurs, a replacement ball detent part should be ordered and secured to the small engine appliance immediately. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This ball detent is compatible with the following brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

Fixes weak or no braking on lawn tractors and riding mowers. This brake disc restores stopping power when brakes drag, squeal, or fail to engage properly.

This replacement part is an input shaft for lawnmowers. The input shaft transfers torque from the clutch disk to the countershaft allowing for the lawnmower to switch gears. If the mower is no longer shifting properly, the input shaft might need to be replaced. Luckily replacing an input shaft is a relatively simple process.Before beginning, make sure that the mower engine has cooled. Open the hood cover, and locate the gearbox. Remove the mounting screws that attach the gearbox to the mower. Once removed, remove the gearbox and locate the damaged input shaft. Using a pipe wrench remove the old shaft by rotating it till it comes undone. Once removed, rethread the new input shaft into its proper position. Reattach the gearbox to the mower. After replacing, make sure to power the mower to see if the gears switch properly.This genuine OEM part is sold individually and is compatible with MTD brand lawnmowers.

Snap ring fastener for lawn tractors and garden equipment. Secures internal components. Replace if broken, missing, or worn to maintain proper assembly.

Lawn tractor input pinion gear that transfers power to drive components. Metal gear that wears over time causing loss of forward motion or grinding noise.

This replacement part is a transmission kit. This is a genuine replacement part made by MTD. This kit is used to assist the transmission and allow the part to work properly while the engine is in use. A new transmission kit might be needed if the engine is no longer starting as efficiently as before. This can be due to a worn down transmission and should be replaced. The transmission is a frequently used part in a machine and can easily become damaged after years of normal use. Refer to the proper user guide for more specific instructions on how to replace or repair this part. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

Small metal washer that installs with screws and nuts to secure parts on lawn tractors and outdoor power equipment. Replace if worn, damaged, or missing.
