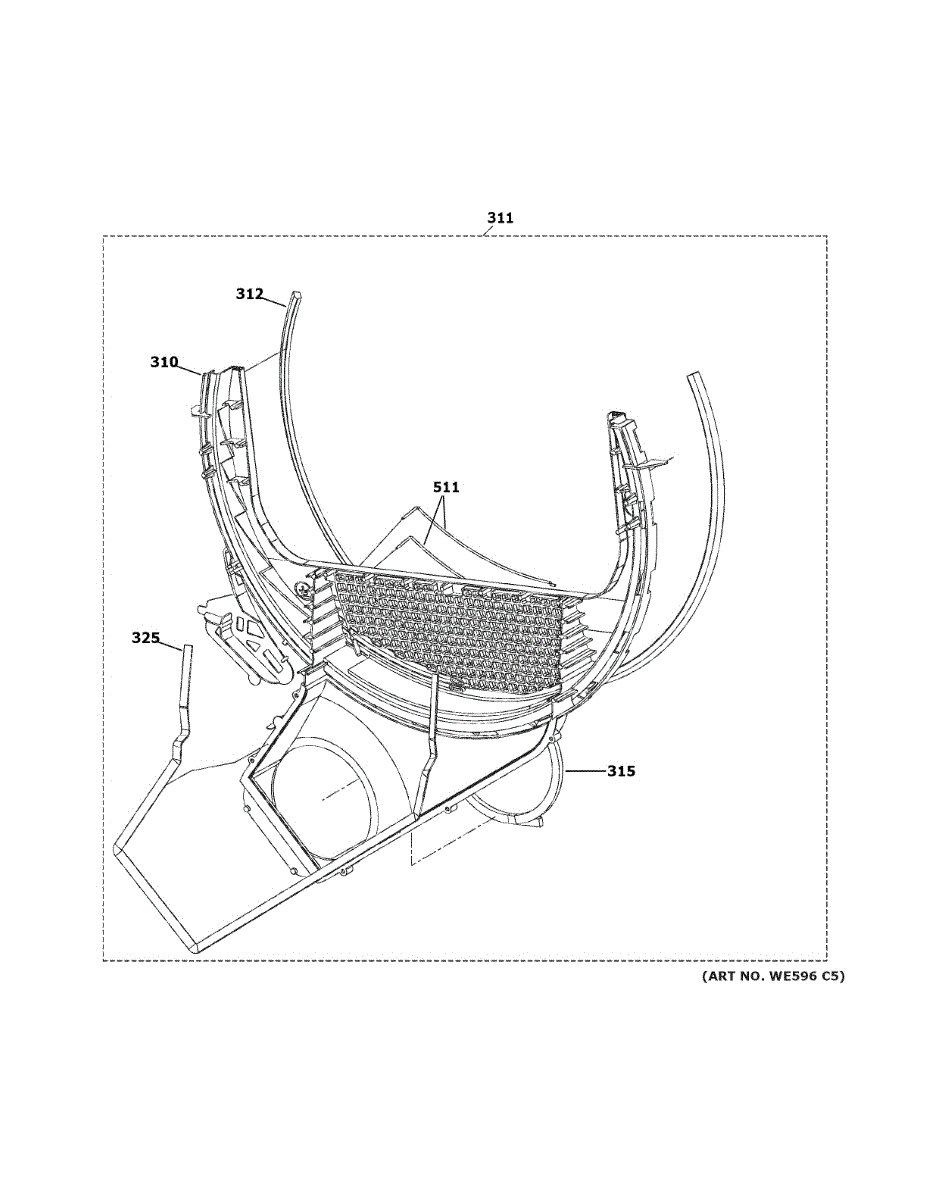

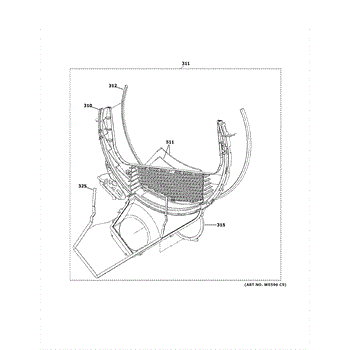

Parts for Ge GTD84ECPN1DG: Trap Duct Assembly Parts

The Lower Drum Felt seal is an OEM replacement part for GE dryers. The Lower drum felt seal is responsible for creating a seal between the drum and the front panel of the dryer.

This part fixes the following symptoms:

• Air leaking from the dryer drum
• Reduced dryer efficiency and increased energy costs
• Clothes becoming caught in the gap between the drum and front panel
• Potential damage or snags to clothes or the dryer

Causes of a bad Lower Drum Felt Seal can range from normal wear and tear, which degrades the felt material over time, to excessive load sizes that strain the drum and seal. Additionally, over time, the seal can become compressed or damaged, leading to a less effective seal and the potential for heat loss and inefficiency in the drying process.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This gasket is a direct-fit door seal that restores the appliance's airtight closure to help maintain proper temperature and reduce energy loss. It replaces worn, torn, or compressed seals to improve performance. What it does:

• Creates an airtight seal around the door to keep conditioned air inside
• Helps prevent warm air intrusion, frost buildup, and excess cycling
• Reduces condensation and keeps food at intended temperatures
• Restores efficient operation when the original seal is cracked or deformed

• One door gasket

• High-level replacement: remove the old gasket, clean the gasket channel, then align and press the new gasket into the channel until fully seated
• Inspect gasket mounting tabs or retainer channels and reuse any clips or screws if applicable
• Work with the appliance powered off; unplug or switch off power for safety where appropriate
• If the gasket feels stiff, warm it gently for easier fitting; avoid sharp tools that could damage the new gasket

The Lint Screen Housing Seal is an OEM part for GE dryers. This seal is designed to fit around the housing of the lint screen, ensuring a tight seal that prevents lint and small particles from bypassing the filter and entering the dryer's internal components. This seal measures approximately 36” long.

Symptoms of a failing lint screen housing seal include:

• Increased accumulation of lint inside the dryer cabinet
• Decreased drying efficiency, requiring longer cycles to dry clothes
• Visible wear or gaps in the seal

Causes of wear or failure of the lint screen housing seal often include regular use, which can stretch or tear the material, exposure to high temperatures which can degrade the rubber or foam, and improper installation which can lead to a poor fit.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
