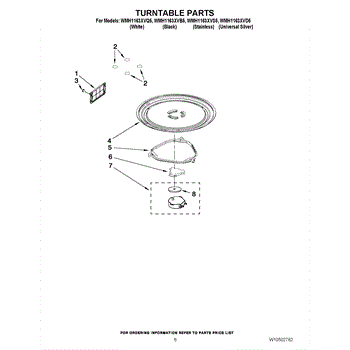

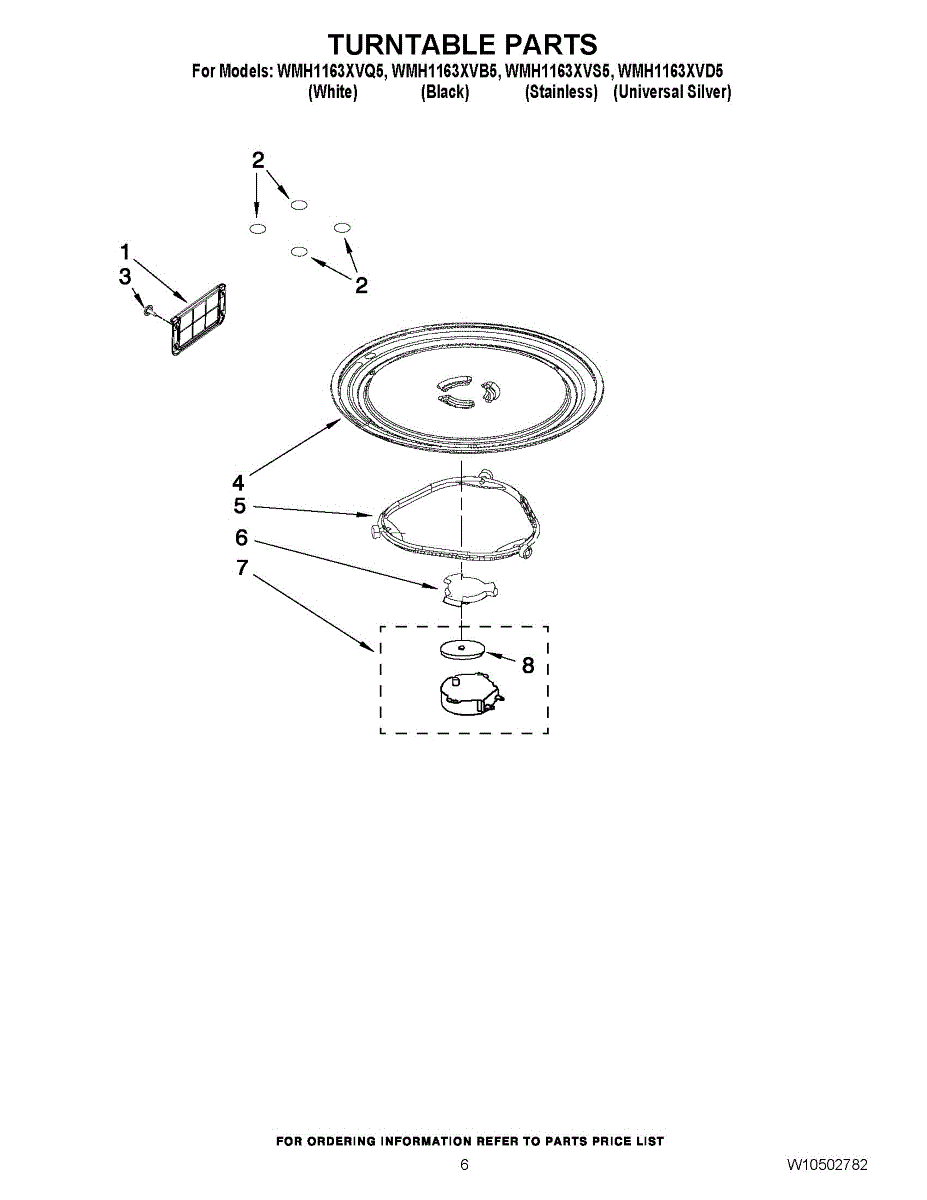

Parts for Whirlpool WMH1163XVB5: 05 - Turntable Parts

This inlet cover protects and conceals the appliance's inlet area, keeping wiring and connections secure and helping prevent debris from entering. It restores a clean, safe inlet opening and supports proper component alignment. What it does:

• Shields the inlet opening and nearby connections from dust and debris
• Holds inlet components in position to reduce movement and wear
• Helps prevent snagging or accidental contact with inlet wiring or fittings
• Visible damage or a loose/misaligned cover can expose connections and lead to leaks or electrical issues

• One inlet cover

• Disconnect power and shut off water supply before beginning work
• Remove the appropriate access panel or trim to reach the inlet area
• Replace cover, securing with the original screws or clips; do not overtighten
• Inspect nearby gaskets, fittings and wiring while replacing the cover

*** Note: This glass tray has 3 triangles to engage the coupler. In some cases, the factory used a tray that has 3 partial-circles. For that glass tray use part# 4393799. ***

The Glass Tray is an OEM part for Whirlpool built-in microwaves. This heat-resistant glass plate helps distribute incoming microwave energy evenly throughout cooking cycles.

Causes include normal thermal stress cracks from rapidly changing microwave temperatures daily. Accidental impact damage is also possible if rack assemblies are mishandled.

Symptoms of a problematic glass tray include:

• Inconsistent or inadequate microwaving of certain foods
• Hotter or cooler areas noticed depending on placement
• Visible corrosion, cracks or pitting of the tray surface over time
• Sparking, arcing or strange noises from inside the microwave cavity

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ring-Turn is an OEM part for Whirlpool microwaves. Designed with precision, this component plays a crucial role in the microwave's turntable system, supporting the glass plate and ensuring it rotates smoothly during operation. The ring-turn's seamless integration with the microwave design allows for the even distribution of microwave energy, which is essential for consistent cooking and heating results.

Causes of a bad Turntable Ring can include cracks or breaks developing from years of use rotating the turntable back and forth under high heat levels.

Symptoms of a bad Ring-Turn include:

• The microwave turntable not rotating properly
• Unusual noises during operation, indicating a misalignment or damage
• The glass plate not sitting flat or slipping during use
• Uneven or partially cooked food, resulting from improper rotation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Microwave Coupler is an OEM part for Whirlpool microwaves. This component connects the microwave’s turntable motor to the turntable tray, allowing the tray to rotate and ensure even cooking of food. The coupler is a small but vital part that ensures the proper movement of the turntable, contributing to the microwave's overall efficiency.

Causes of a bad coupler can include wear and tear from regular use, accidental damage from heavy items placed on the turntable, or misalignment issues. A malfunctioning coupler can lead to uneven cooking and potential damage to the microwave’s internal components.

Symptoms of a bad microwave coupler include:

• The turntable not rotating
• Uneven cooking or heating of food
• Grinding or clicking noises during operation
• The turntable tray wobbling or not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Turntable Motor is an OEM part for Whirlpool microwaves. This motor is responsible for rotating the microwave turntable, ensuring even heating of food by allowing it to rotate during the cooking process. It is located beneath the turntable and engages with the turntable coupler to facilitate smooth rotation. Installation of this motor may need a Torx driver. If a small stud is present in the center of the Torx screw, a security torx bit will be necessary for the replacement of those screws.

Causes of a bad turntable motor can include wear and tear from regular use, electrical failures, or physical damage due to overloading or mishandling. These issues can result in the turntable not rotating properly, leading to uneven heating.

Symptoms of a bad turntable motor include:

• Turntable not rotating
• Uneven cooking or heating of food
• Unusual noises coming from the motor area
• The microwave displaying error codes related to the turntable

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Motor Spacer is an OEM part for Whirlpool microwaves. It is designed to support and position the turntable motor, ensuring it stays aligned and functions correctly. This spacer helps maintain the stability of the turntable, allowing even and consistent heating of food.

Causes of a bad motor spacer can include wear and tear over time, physical damage from heavy use, or misalignment due to accidental impacts. Regular inspection and maintenance can help identify issues before they lead to motor malfunction.

Symptoms of a bad motor spacer include:

• The turntable not rotating properly
• Unusual noises coming from the turntable area
• Inconsistent heating or cooking of food
• The turntable being unsteady or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
