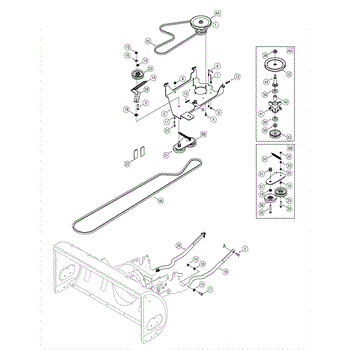

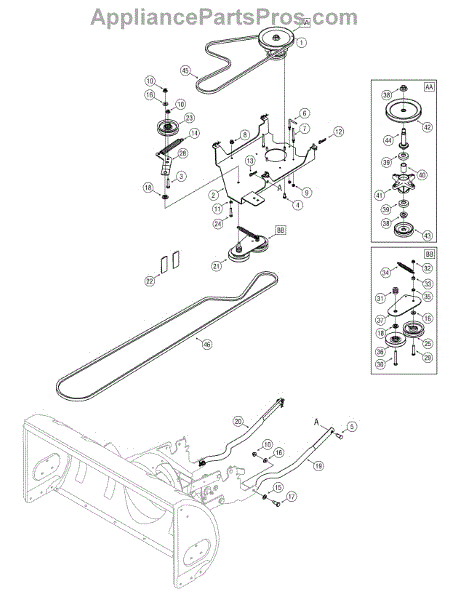

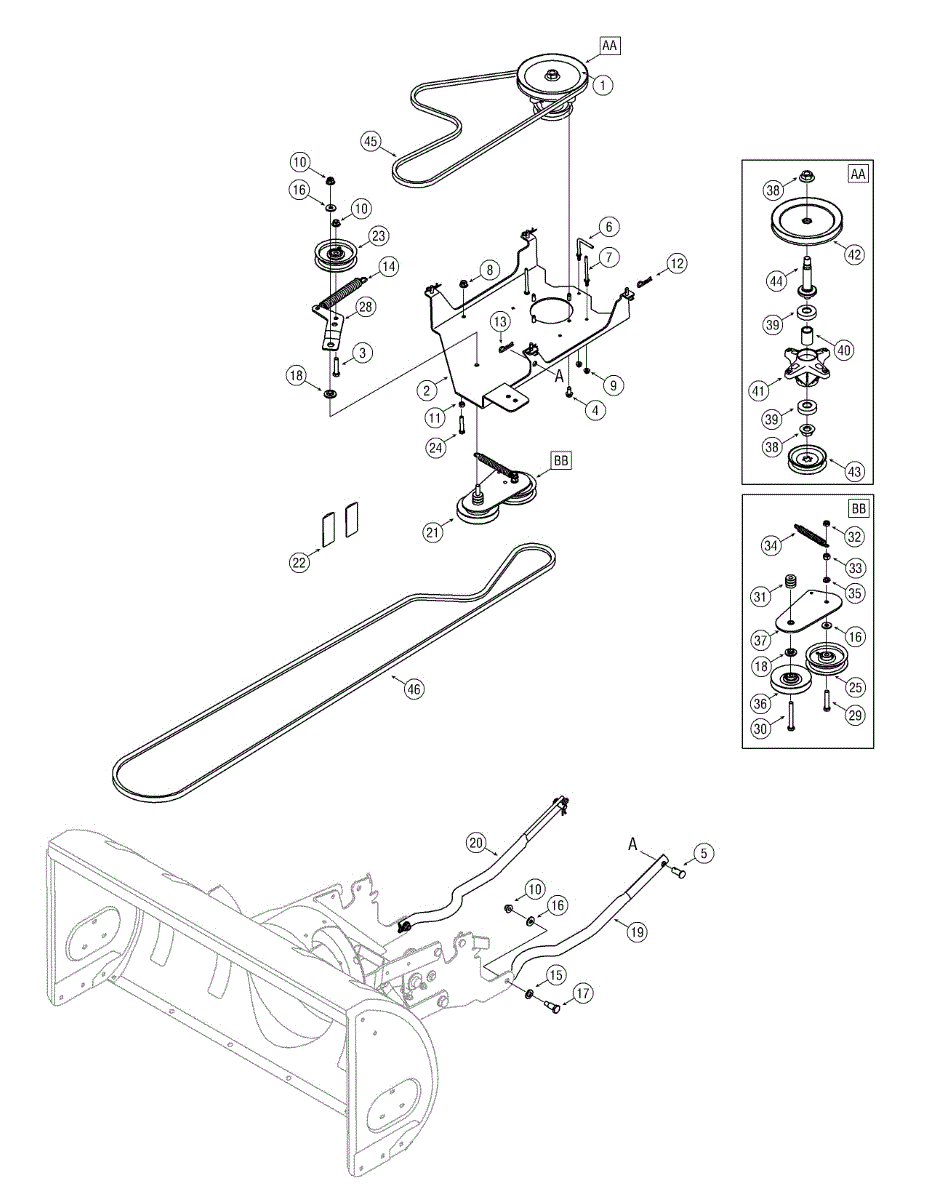

Parts for Oem-Attachments 19A70009OEM: Undercarriage Assembly Parts

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

Click pins are used in various lawn equipment machines to hold the wheels on. For larger riding lawn mowers, click pins are only used on the smaller front wheels. The click pin penetrates through the axle spindle to hold the tire in place. The part can get lost, damaged, or wear out with regular use. It's also possible to misplace the click pin when changing a tire because it has to be removed first before working on the wheel. A missing, damaged, or worn click pin must be replaced.Click pins are very easy to replace with only a pair of pliers. Wear gloves when making the repair. Start by pulling out the old click pin from its location with the pliers. Insert the new click pin back into the hole located in the spindle.This click pin is a genuine OEM replacement part. It is made with durable, high-quality metal. It is supplied by the manufacturer. It is compatible with both MTD and Murray brands. The equipment the click pin can be used with includes lawn tractors, lawn machines, and other lawn equipment. It is sold as an individual unit.

This part is a replacement washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective, broken, or lost washer in outdoor power equipment.Washers are a standard piece of hardware that provide a larger bearing surface for screws and bolts, allowing them to securely fix comonents together more efficiently. They may become lost or worn, requiring replacement. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This is a replacement isomount washer that works with a range of lawn and garden equipment. The flat metal washer can be used to attach to the idler arm bracket in certain machines. Washers are beneficial for ensuring there is a tight, proper connection between various pieces in a machine. They can also help to protect the surface of the connected parts.Washers are made to last, but they can still wear down over time. The metal could start to corrode, and the washer might break. It could also become bent. there is also the risk of losing a washer when working on other parts of the machine. They should be replaced when needed. Replacement is simple and will often require a wrench.The replacement washer can be used with models of lawn and garden tools such as snow blowers, lawnmowers, and lawn tractors from MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky. It is a genuine OEM replacement part from the manufacturer. It is sold individually. Owners might want to buy several to have available.

A flat idler pulley is a crucial piece of hardware designed for use with many different models of lawn mowers and snowblowers. It is compatible with products by brands such as Craftsman, Yard Machines, Yard Man, MTD, and Troy-Bilt.The flat idler pulley part is crucial for the proper functioning of the lawn mower because it connects to the idler bracket. The purpose of the flat idler pulley is to apply tension to the v-belt. The replacement process of the flat idler pulley will require a wrench.This flat idler pulley is made out of metal. It is sold individually. The flat idler pulley is an original OEM part sourced directly from the manufacturer, MTD.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

A flat idler pulley is a crucial piece of hardware designed for use with many different models of lawn mowers and snowblowers. It is compatible with products by brands such as Craftsman, Yard Machines, Yard Man, MTD, and Troy-Bilt.The flat idler pulley part is crucial for the proper functioning of the lawn mower because it connects to the idler bracket. The purpose of the flat idler pulley is to apply tension to the v-belt. The replacement process of the flat idler pulley will require a wrench.This flat idler pulley is made out of metal. It is sold individually. The flat idler pulley is an original OEM part sourced directly from the manufacturer, MTD.

This part is a replacement idler bracket. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or defective idler bracket in lawn tractors.The idler bracket secures the engine's idler in place and is a critical equipment component. It should be replaced if dented, bent, detached, or otherwise rendered ineffective. t's important when working on or near an engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this ball bearing, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality metal. This idler bracket can be used with different models of lawn tractors that have been manufactured by MTD, Craftsman, and other brands. Part sold individually.

This hex screw is a genuine MTD part, sold individually. A hex screw can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, tillers, and wood chippers. This genuine OEM part is a small fastening component.The hex screw in a outdoor appliance might need to be replaced if it has been lost or damaged. If the screw has been damaged and cannot serve its typical function, it should be removed and replaced by this genuine OEM replacement part in a timely fashion.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

This pulley is a genuine MTD part, sold individually. This pulley can be used as a replacement part in a lawn mower or a snowblower. The purpose of the pulley in a lawn mower or a snowblower is to regulate the amount of tension that is placed and exerted on the drive belt during use. The pulley could be damaged to the point that it cannot properly maintain tension on the drive belt, in which case it should be removed and replaced by this genuine OEM replacement part. The replacement process in a pulley will require a wrench. Refer to the equipment manual for full installation instructions.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This pulley is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, and Yard Man.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This v belt is a genuine MTD part, sold individually. This v belt can be used as a replacement part in a lawn mower or a snowblower. The v belt helps to propel the snowblower forward.If the v belt frequently slips out of place or if the teeth of the belt are permanently damaged, it should be removed and replaced by this genuine OEM replacement part before using the lawn mower again. Always unplug the appliance before performing any kind of repair or replacement.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This v belt is compatible with the following outdoor appliance brands: MTD and Cub Cadet.

The hex lock nut is found on many different types of outdoor lawn equipment, as well as other types of equipment. The lock nut works to secure bolted joints by adding friction to the bolt threads. The nut has flat sides, which can easily be gripped by a wrench to be tightened or loosened as needed. These types of nuts are common, as they provide easy assembly and disassembly of various parts. Buyers may need a new hex lock nut for a range of reasons. The nut that is currently on the equipment could have become damaged or lost while working on the machine. It is vital for all of the nuts to be in place and properly secured on the equipment before use. This is an authentic OEM part. Some of the products that use hex lock nuts include lawn mowers, snowblowers, tillers, edgers, string trimmers, and log splitters. Common equipment brands using these nuts include Craftsman, Toro, Cub Cadet, Yard Machines, and Troy-Bilt.
