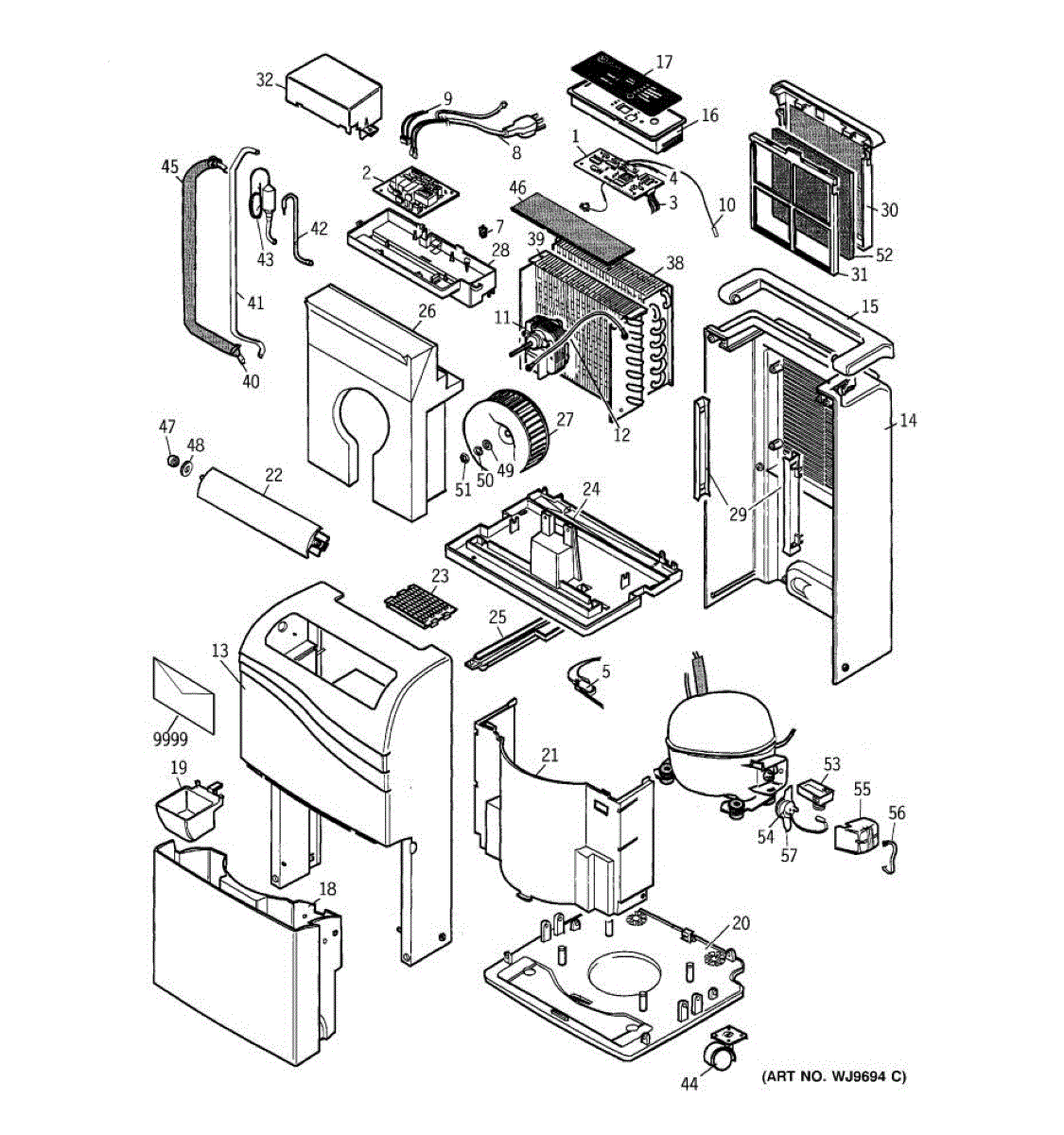

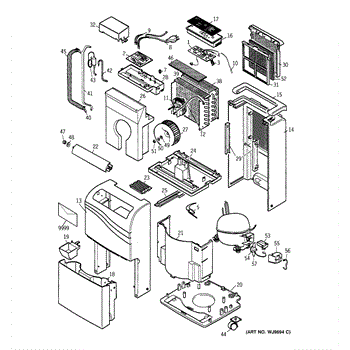

Parts for Ge AHG20LAS1: 01 - Section1 Parts

This front case is the outer housing that restores the appliance's original appearance and secures the control components behind the panel. It provides a neat, finished front and helps protect internal parts from everyday wear. What it does

• Replaces a cracked, warped, or damaged front housing to improve appearance and protect internal components
• Provides mounting attachment points and alignment for the control panel and trim
• Helps keep dust and debris out of the control area to maintain reliable operation
• Restores proper fit and finish so doors, controls, and trim align correctly

• One front case housing

• Disconnect power (unplug or shut off breaker) before starting any repair
• Installation typically requires removing exterior trim and control panel screws; keep hardware organized
• Some models may require light alignment or assistance to seat the front case evenly—have a second person available if needed

Replacement water bucket for your dehumidifier. Installs in the front base to collect condensation. Order a new bucket if yours is cracked or missing.

This air outlet grid directs airflow inside the refrigerator compartment to help maintain even cooling and protect the fan opening. It replaces a cracked or missing vent to restore proper air circulation and appearance. What it does:

• Covers and protects the compartment fan/air channel while directing cold air into the fresh food area
• Promotes even temperature distribution for better cooling performance
• Helps prevent items from blocking the fan opening
• Common symptom fix: cracked, broken, or missing vent visible on shelf wall or ceiling

• Disconnect power to the appliance before starting any repair
• Typically secures with plastic clips or screws—inspect existing fasteners and save them for reinstallation
• Align the grid with locating tabs and press or fasten until it seats securely; avoid forcing to prevent breakage

This drain light passage directs the dishwasher's drain light or sensor signal through the tub to the drain area, helping the appliance detect and indicate drain status. Replaces a cracked or missing passage to restore proper light routing. What it does

• Guides the drain/light sensor or light path from the tub to the drain area
• Helps ensure the appliance can accurately detect or indicate drain status
• Prevents leaks or misrouting caused by damaged or broken passages
• Reduces false drain/sensor indications caused by a compromised passage

• Designed for direct replacement
• Handle gently to avoid cracking plastic during installation
• Disconnect power and water supply before servicing the appliance

This filter guide is the replacement housing bracket that secures the refrigerator water filter cartridge in place, ensuring a proper seal and stable connection for reliable water flow and filtration performance. What it does:

• Holds and aligns the water filter cartridge so it seats correctly in the filter head
• Helps maintain a secure seal to reduce leaks and prevent filter movement or rattling
• Restores proper water flow when a damaged or broken guide prevents full engagement
• Supports safe, leak-free operation of the refrigerator's water/ice system

• One filter guide

• Turn off the refrigerator water supply and dispense any remaining water before replacing
• Remove the old guide and inspect the filter O-rings; replace O-rings or filter if worn
• Hand-tighten the filter and guide per manufacturer instructions; avoid over-tightening

This adhesive foam seal pad cushions and seals appliance panels and openings to reduce vibration, block drafts, and help prevent debris and moisture intrusion. It restores a snug, finished fit where the original pad has worn or fallen off. What it does:

• Provides a compressible barrier between panels or trim to dampen rattles and vibration.
• Helps block air drafts, steam, and small debris from entering seams and gaps.
• Restores proper spacing and support where an original foam seal is degraded or missing.
• Commonly replaced when the existing pad is flattened, torn, hardened, or no longer adheres.

• One adhesive foam seal pad, as shown.

• Surface-mount style: clean and dry mounting surface thoroughly before applying for best adhesion.
• Peel backing and press firmly; allow adhesive to set per ambient temperature for a secure bond.
• Use gentle trimming only if part must be shortened to fit; replace with identical material where possible.
• Always disconnect power before servicing nearby components.
