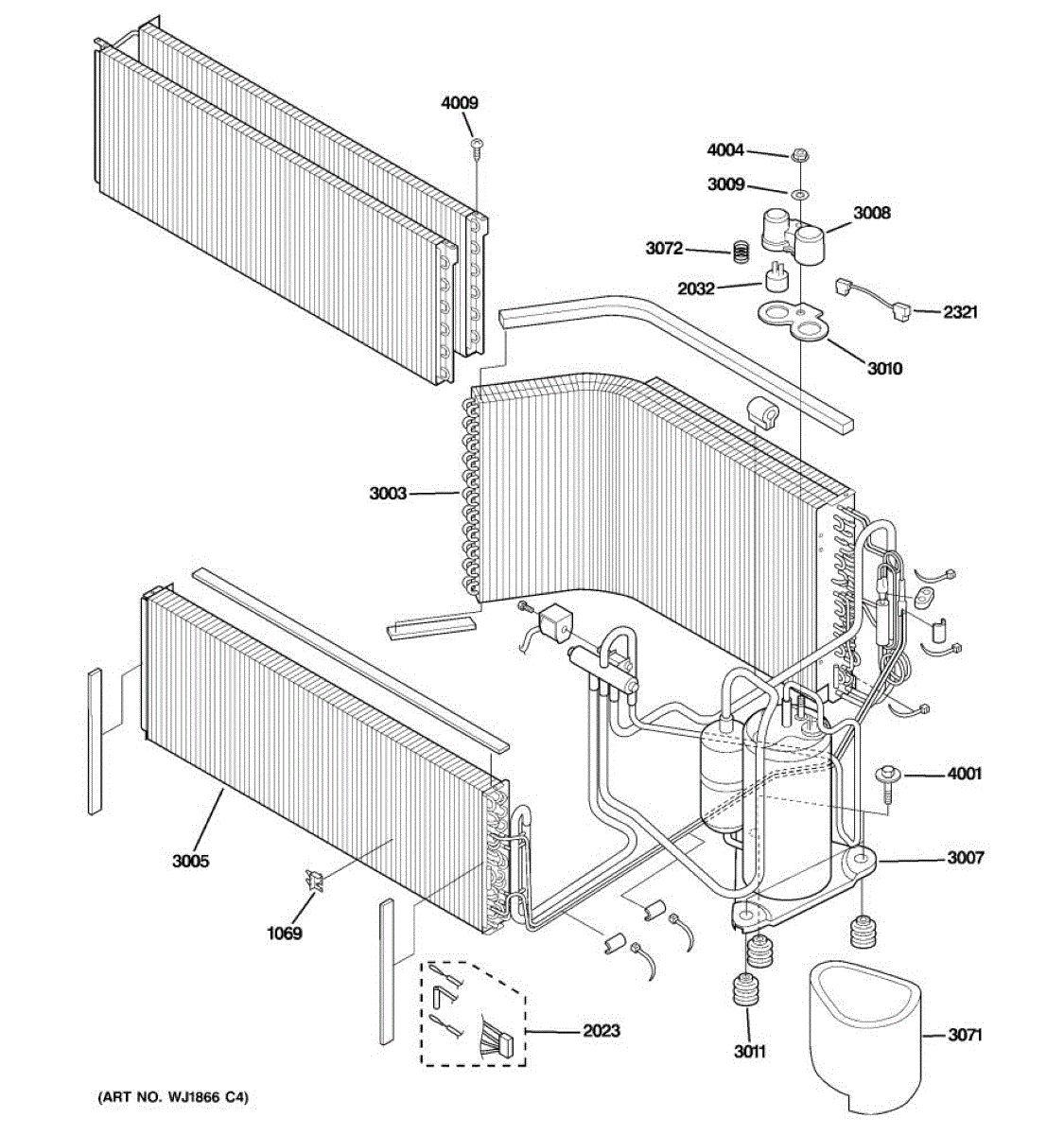

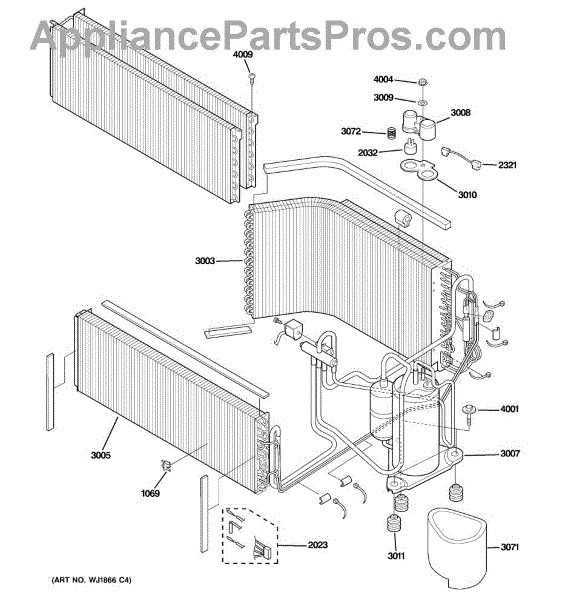

Parts for Ge AZ38H09DABM3: 04 - Unit Parts

Fix an air conditioner that won't cool properly or cycles on and off. This thermistor holder secures the temperature sensor for accurate readings.

Compressor protector for air conditioner units. Mounts to the compressor housing to shield electrical connections. Replace if cracked, broken, or missing.

Fix an air conditioner compressor that won't start with a new overload protector. This thermal safety device prevents motor damage. DIY-friendly repair.

Internal wire for air conditioner electrical connections. Replace if wire is frayed, damaged, or has broken connectors affecting unit assembly.

This condenser assembly replaces the refrigerator's condenser coil to help dissipate heat from the cooling system and maintain proper cooling performance. It's a direct-fit service part used during condenser or cooling repairs. What it does:

• Condenses refrigerant from gas to liquid so the refrigerator can reject heat
• Helps maintain correct operating temperature by allowing efficient heat transfer
• Commonly replaced when condenser damage, corrosion, or restricted airflow impairs cooling
• Can reduce compressor run time and improve cooling consistency when functioning properly

• One condenser assembly

• Ensure power is disconnected before service
• Handle coils carefully to avoid bending fins or causing punctures to refrigerant lines
• May require removal of rear access panels and reconnection of mounting brackets; follow OEM service instructions

Rubber cushion that mounts under the compressor to isolate vibration and prevent metal contact. Replace if worn, cracked, missing, or fallen off.

Replacement compressor cushion for air conditioners. Absorbs vibrations and reduces operational noise. Install when original is cracked or worn out.

This compressor cover is a molded protective housing that fits over the refrigerator compressor to shield components and help manage airflow. It restores a finished appearance and helps keep debris and pests away from the compressor area. What it does:

• Protects the compressor and electrical connections from dust, dirt and accidental contact
• Helps direct airflow around the compressor for proper ventilation
• Reduces exposure that can allow pests or debris to interfere with components
• Addresses symptoms like an exposed/cracked cover, rattling from loose or damaged housing, or visible compressor components

• One compressor cover (1 pc) as shown

• Disconnect power to the appliance before accessing the rear lower compartment
• Move the refrigerator away from the wall to access the compressor area; two people may be needed for safe handling
• Remove any mounting clips or screws before lifting the old cover off; align and secure the replacement until clips engage
• Wear gloves and eye protection; avoid bending or forcing the cover to prevent breakage

Protective cover that shields the compressor unit on outdoor air conditioners. Replace when cracked, broken, or missing to protect internal components.

Replacement protector spring for room air conditioners. Secures internal components and absorbs vibration. Install if original is broken or missing.

Replacement stud bolt for air conditioner units. Secures internal components and housing panels. Order a new bolt if yours is stripped, broken, or missing.

Stud bolt for air conditioner chassis and component mounting. Replace if threaded portion is stripped, bent, or broken. Secures internal parts to frame.

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.
