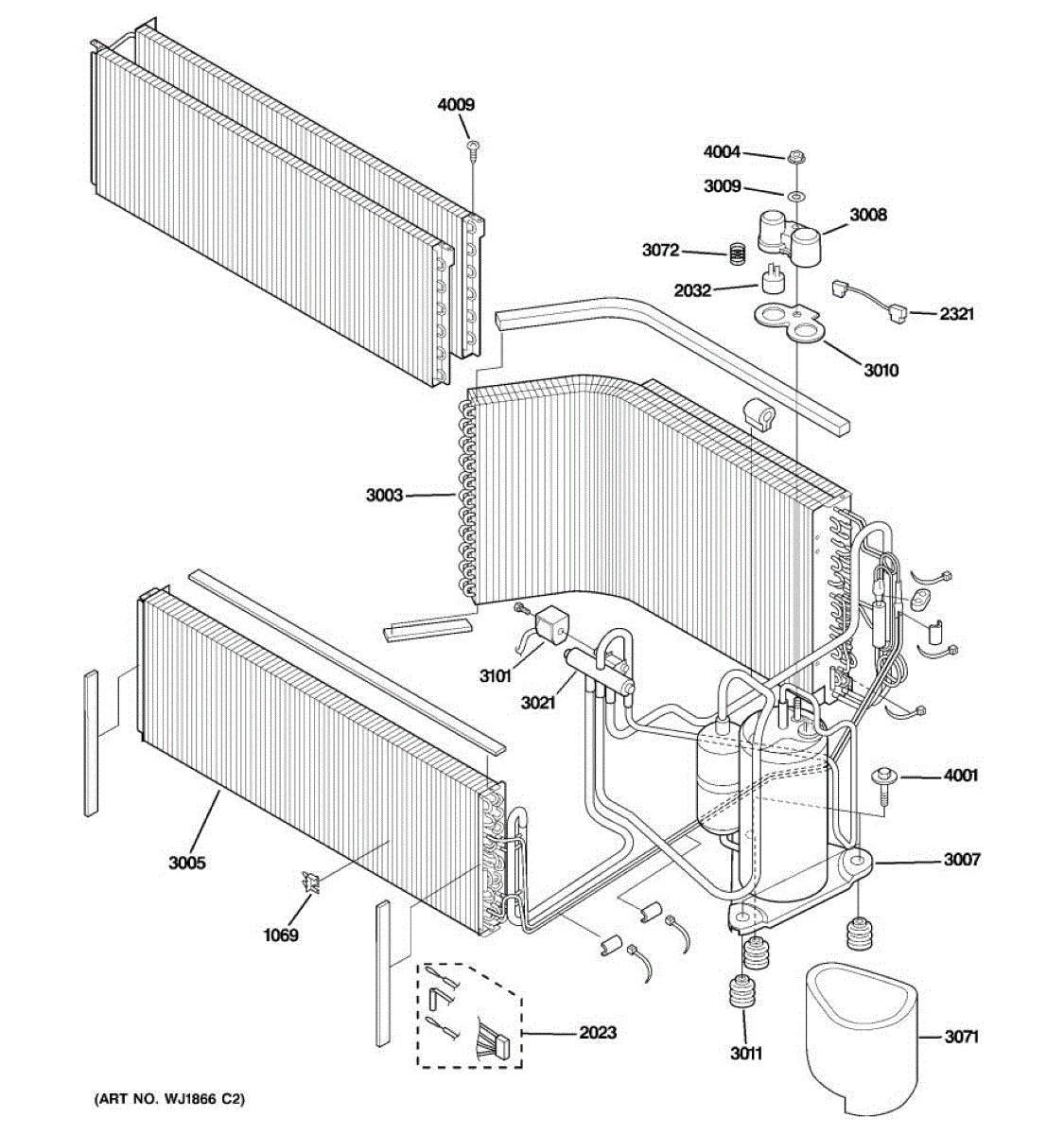

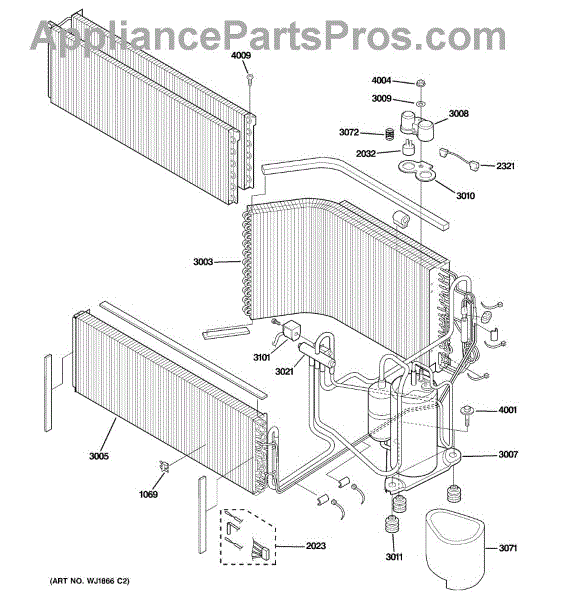

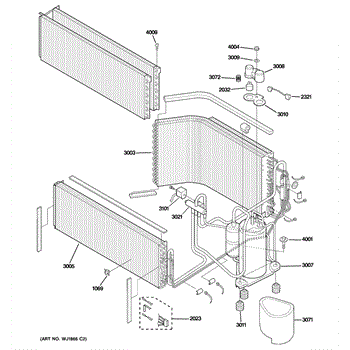

Parts for Ge AZ38H15EABM1: 04 - Unit Parts

This condenser assembly replaces the refrigerator's condenser coil to help dissipate heat from the cooling system and maintain proper cooling performance. It's a direct-fit service part used during condenser or cooling repairs. What it does:

• Condenses refrigerant from gas to liquid so the refrigerator can reject heat
• Helps maintain correct operating temperature by allowing efficient heat transfer
• Commonly replaced when condenser damage, corrosion, or restricted airflow impairs cooling
• Can reduce compressor run time and improve cooling consistency when functioning properly

• One condenser assembly

• Ensure power is disconnected before service
• Handle coils carefully to avoid bending fins or causing punctures to refrigerant lines
• May require removal of rear access panels and reconnection of mounting brackets; follow OEM service instructions

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.
