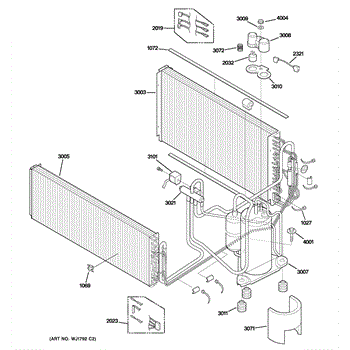

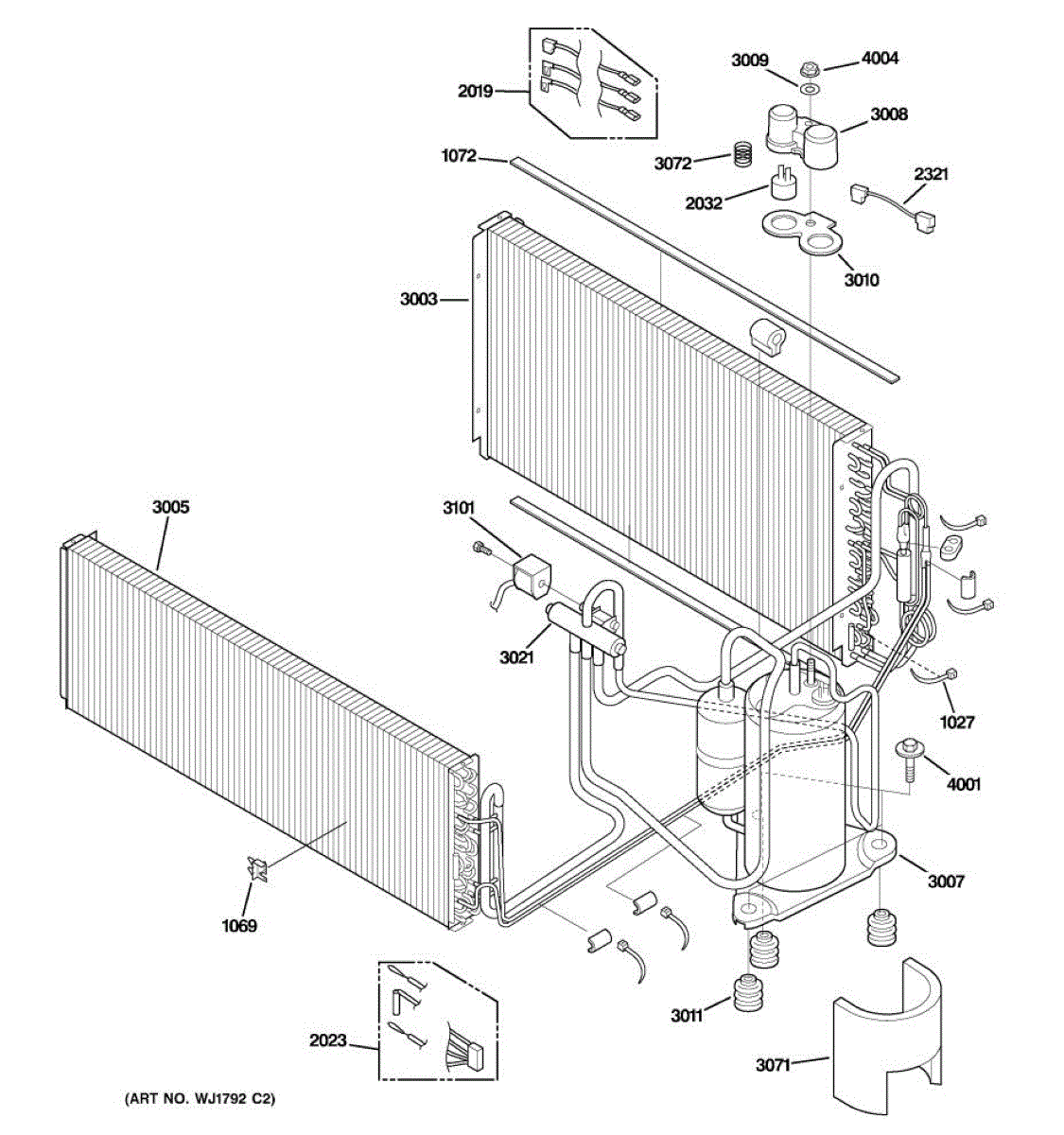

Parts for Ge AZ55H09DADM1: 04 - Unit Parts

This condenser assembly helps remove heat from the refrigerator's cooling system so the appliance can maintain proper temperatures. It replaces a damaged or clogged condenser to restore normal heat dissipation and cooling efficiency. What it does

• Circulates refrigerant through condenser coils to release heat from the system
• Helps the compressor run at normal duty instead of overworking
• Can address noises or visible damage (bent fins, crushed tubing) that impair cooling

• One condenser assembly

• Disconnect power to the appliance before beginning work
• Handle coils and fins carefully — they are sharp and can be easily damaged
• Removal may require access panels and loosening mounting clips or brackets

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.
