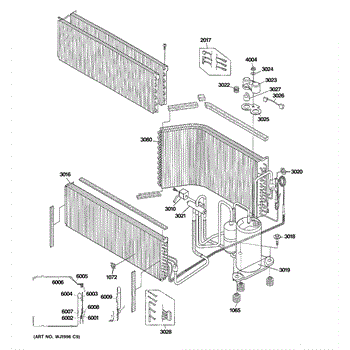

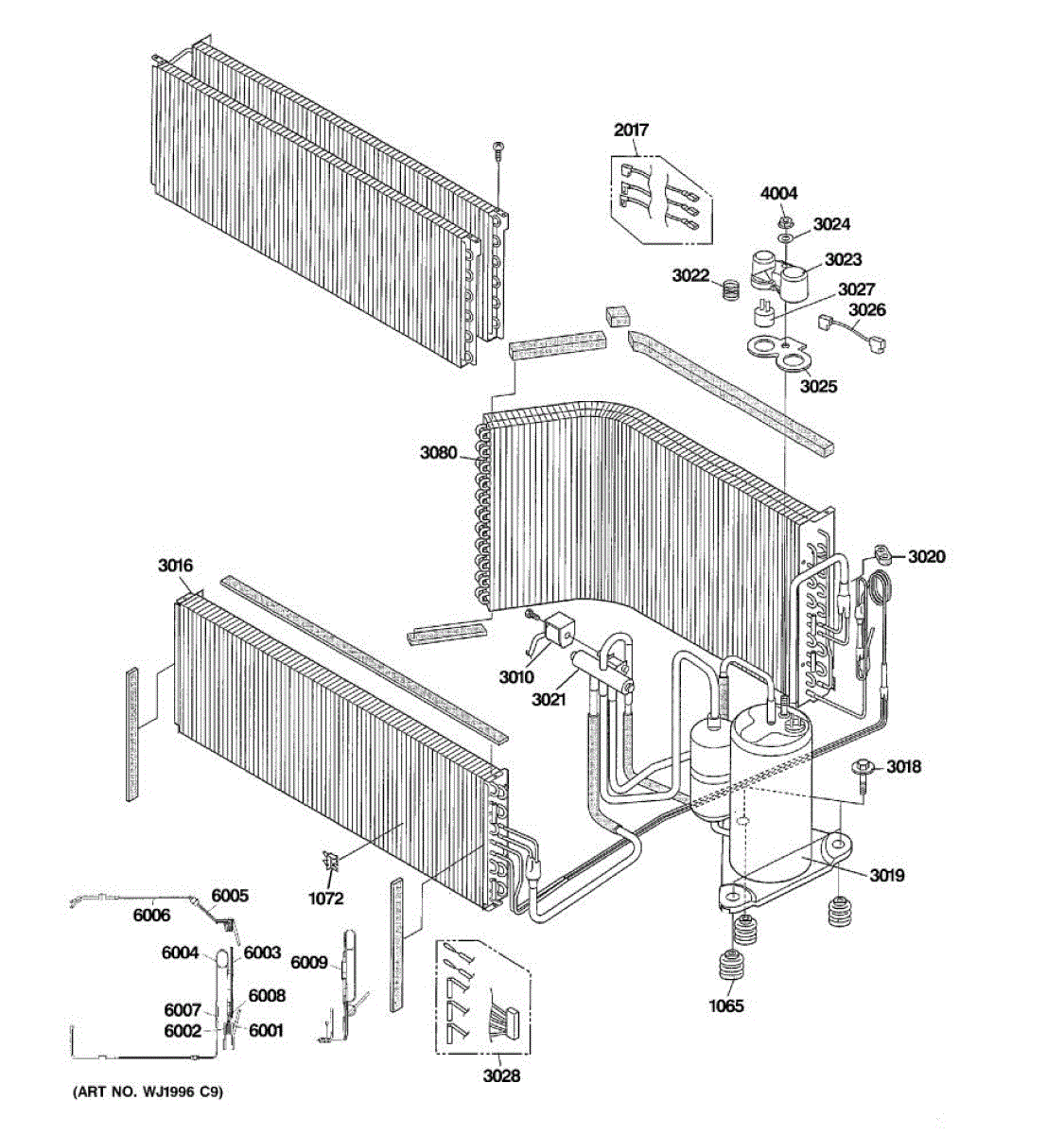

Parts for Ge AZ61H15DABM2: 04 - Unit Parts

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.

This thermistor is the refrigerator temperature sensor that helps the control board monitor and regulate cooling. Replacing a faulty sensor restores accurate temperature readings and consistent cooling performance. What it does:

• Measures internal refrigerator/freezer temperature and sends readings to the control board
• Helps the control board adjust compressor and fan operation for stable temperatures
• Can cause incorrect temperature display or uneven cooling when it fails
• Linked to excessive running, frequent defrost cycles, or poor cooling performance

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring harness carefully; avoid kinking or damaging the lead
• Ensure the connector is fully seated and any mounting clip or bracket is secured
• Some panel removal may be required; follow for access and reassembly

This replacement capillary tape is the insulation/fastening tape used to secure capillary tubing on refrigeration and freezer temperature control assemblies. It helps keep the capillary tube routed and protected for reliable temperature sensing. What it does:

• Secures and insulates capillary tubing so the sensing tube stays in the correct position
• Minimizes heat transfer and vibration that can affect temperature sensing
• Helps prevent kinks, rubbing, or contact with hot/cold surfaces that can cause erratic operation
• Common symptom linkage: used when temperature control is inconsistent, cooling cycles are irregular, or capillary tubing is loose or exposed

• One capillary tape for securing/insulating capillary tubing

• Turn off and unplug the appliance before starting any work
• Handle capillary tubing gently—do not crimp, pinch, or sharply bend the tube
• Re-route and secure the tube following the original path; wrap tape without over-tightening
• If the capillary tube or sensor is damaged, replace the damaged component rather than relying on tape
