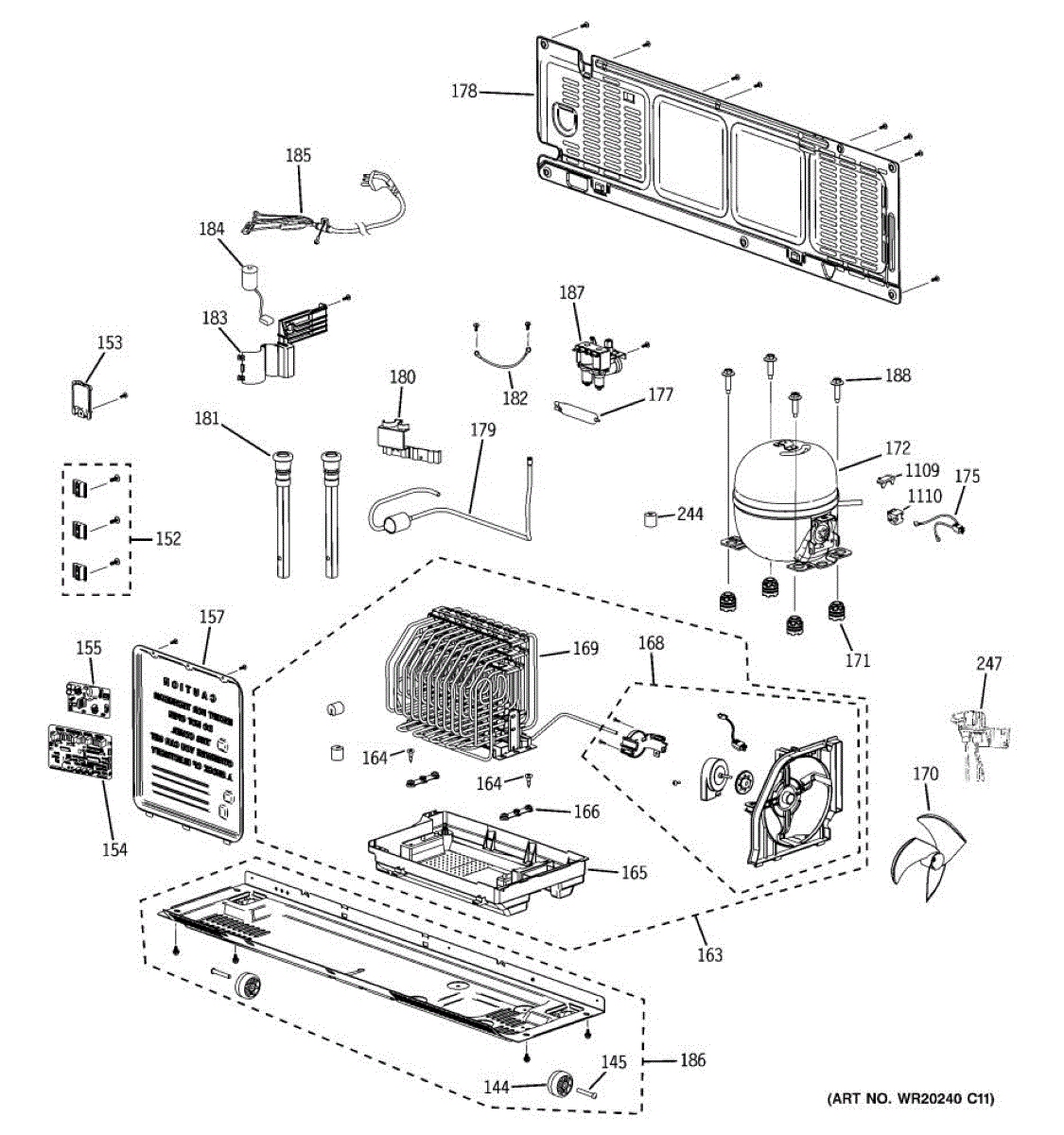

Parts for Ge DFSF9VKBAWW: 09 - Unit Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

This is a small axle pin or rivet that supports a caster or roller wheel on the refrigerator. It allows components such as drawer slides or leveling wheels to roll smoothly. Replace this axle if a wheel wobbles, falls off, or no longer spins freely, causing drawers to stick or the refrigerator to be difficult to move or level.

Fix temperature fluctuations and display issues with this refrigerator main control board. Solves erratic temperature settings and electrical signal problems.

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

This molded rubber condenser grommet cushions and positions the condenser assembly to reduce vibration and wear. It restores proper mounting alignment so the condenser sits securely and operates quietly. What it does:

• Cushions condenser against the cabinet frame to dampen vibration and rattling
• Helps hold the condenser in proper position for correct airflow and clearance
• Prevents metal-to-metal contact that can cause noise or part wear
• Commonly used when the condenser rattles, vibrates, or sits loose after impact or age

• One condenser grommet

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access the condenser from the back or lower rear, remove any service panels as needed
• Remove the old grommet and press the new grommet into place on the condenser mounting post or bracket

The condenser fan motor and bracket assembly circulates air over the condenser coils at the back or bottom of your refrigerator, releasing heat and keeping the refrigeration system running efficiently. The motor and its mounting bracket work together as a single unit to ensure the fan is properly positioned and secured. If your refrigerator is running warm, running constantly, or making a loud humming noise from the back, a failing condenser fan motor is a common culprit.

If your refrigerator isn't cooling properly or runs constantly, a faulty condenser may be the cause. This condenser helps dissipate heat efficiently.

Rubber grommet that cushions and stabilizes the compressor in your refrigerator. Replace if cracked, deteriorated, or missing to restore support.

Ground wire harness for refrigerators. Connects electrical components to ensure proper grounding. Replace if damaged, frayed, or disconnected.

Replacement power cord for your refrigerator. Connects unit to wall outlet. Needed when original cord is damaged, frayed, or missing. Direct fit.

This fitting connects the water supply line to your refrigerator's water inlet valve, typically located at the back of the unit. Replace if you notice water leaks around the connection or reduced water flow to the dispenser or ice maker.

A replacement compressor mounting bolt that secures the refrigerator compressor to the chassis to help keep the compressor stable and reduce vibration. Direct-fit hardware to restore proper compressor attachment and quiet operation. What it does:

• Fastens the compressor to the refrigerator frame or mounting bracket for secure operation
• Keeps the compressor aligned to prevent movement and reduce vibration-related noise
• Helps maintain a stable seal for connected refrigerant lines by preventing compressor shifting
• Appropriate when original bolt is stripped, corroded, or missing

• Disconnect power to the appliance before starting any repair
• Support the compressor or mounting bracket while removing/installing the bolt to prevent strain on lines
• Use correct socket/wrench size and replace with identical hardware; do not overtighten
• Address those issues before reuse

This rubber grommet seals the suction/water pipe where it passes through the appliance cabinet to reduce leaks and dampen vibration. It restores a tight, durable seal to help prevent water intrusion and rattling. What it does:

• Cushions and seals the suction/water pipe where it passes through sheet metal or plastic.
• Reduces vibration and pipe movement that can cause noise or wear.
• Helps prevent water leaks or moisture entry at the cabinet penetration.
• Maintains a proper fit for tubing routing and component alignment.

• One rubber suction pipe grommet.

• Disconnect power and shut off water supply before servicing.
• Remove access panels as needed to reach the pipe penetration; press grommet into opening and route pipe through center.
• Replace any brittle, torn, or deformed grommets; do not force a damaged grommet into place.

The Relay Protector is an OEM part for GE refrigerators. The relay protector monitors voltage input for irregular surges or drops that could harm electronic control boards over time. Upon detection, it immediately redirects excess voltage away from relays to safeguard sensitive circuits.

Causes can be damage from sustained power fluctuations over years of use. Failure allows increased risk of voltage abnormalities affecting parts.

Symptoms of a faulty relay protector include:

• Refrigerator cycles unexpectedly turning off
• Inoperative zones within, like water/ice dispensers
• Frequent component burnouts requiring replacements
• Buzzing noises from the electrical outlet area

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Protective cover that fits over the compressor relay. Shields relay from dirt, moisture, and contact. Replace if cracked, broken, or missing.
