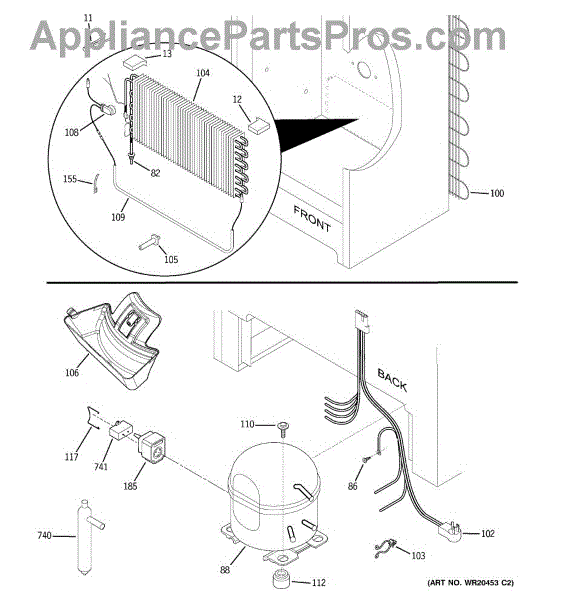

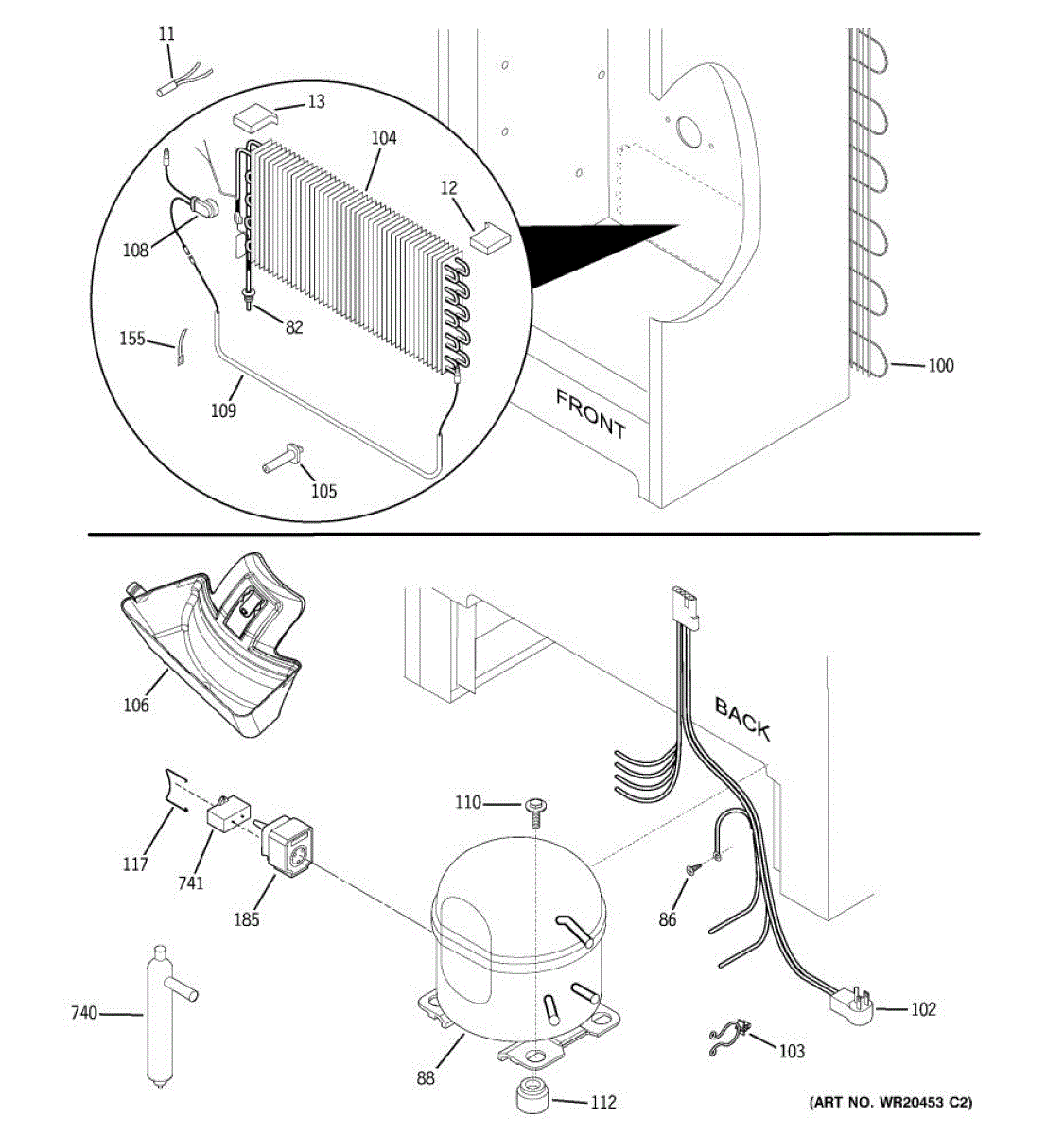

Parts for Ge FUF17SVBRWW: 03 - Unit Parts

Main wire harness for your freezer's internal electrical system. Replacement needed when wires are frayed, damaged, or connections are loose or broken.

This controller clip secures a control board or wiring harness inside the appliance, preventing movement and reducing the chance of loose connections or interference. A simple replacement that restores proper board mounting and stability. What it does

• Holds the control board or harness in place to prevent vibration and movement
• Helps maintain reliable electrical connections by reducing strain on wiring
• Reduces rattling or contact noise caused by loose internal components
• Can prevent intermittent operation caused by a poorly secured board or wires

• One controller clip

• Disconnect power to the appliance before starting any repair.
• Access the control area per your model's service instructions; remove panels carefully to reach the clip.
• Handle the control board and connectors by their edges; avoid touching circuit traces or components.

Aluminum retaining strap secures evaporator heater assembly inside freezer compartment. Replace if bent, broken, or missing to properly mount heater.

Freezer not cooling or compressor won't start? This compressor control module manages start/stop functions to restore proper cooling performance.

This 250 VA run capacitor provides the phase shift needed for single-phase appliance motors to start and run efficiently, helping restore reliable motor operation and consistent performance. What it does:

• Supplies the necessary electrical phase shift to support motor starting and continuous operation
• Commonly used with compressor and fan motors in refrigeration and similar appliances
• Fails can cause motor humming, slow or no-start conditions, or intermittent operation
• Replacing a weak or failed capacitor can return normal motor function and reduce stress on the motor

• Disconnect appliance power at the breaker before servicing
• Capacitors can hold charge—discharge safely using insulated tools
• Verify terminal wiring and secure connections; match mounting orientation to the original
