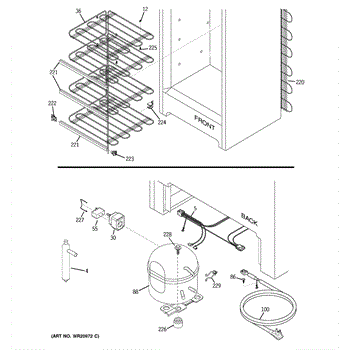

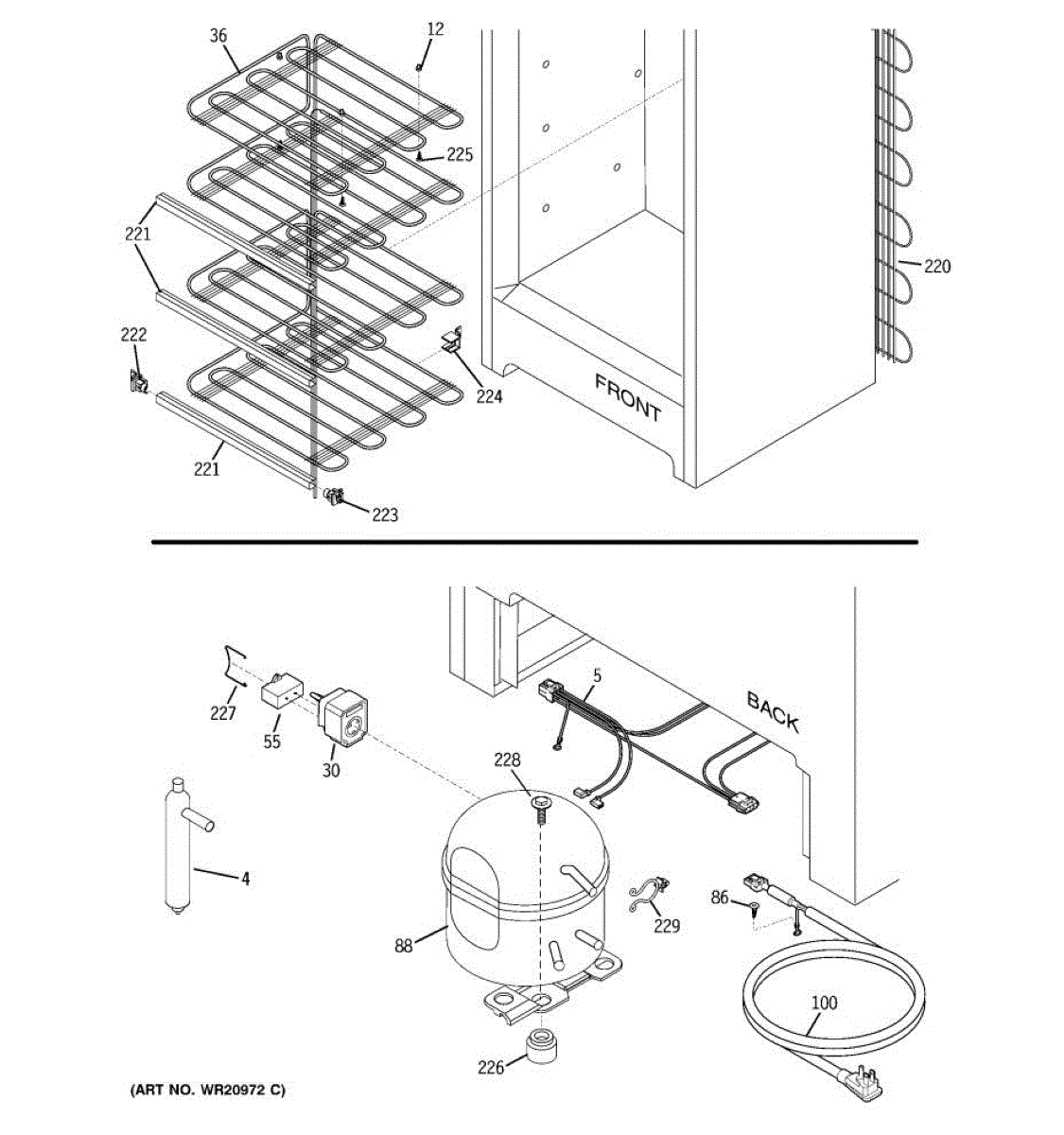

Parts for Ge FUM17SVDRWW: 03 - Unit Parts

This compressor controller is the electronic control module that manages compressor start/stop functions to help the refrigerator maintain proper cooling performance. It replaces a failed controller to restore normal compressor operation. What it does:

• Monitors and controls compressor start/stop cycles for stable cooling
• Resolves symptoms such as the compressor not running, intermittent cooling, or frequent compressor cycling
• Works with the appliance's existing wiring and mounting points to perform control functions
• Does not service sealed refrigerant components; intended only for electrical control of the compressor

• Always unplug the appliance before servicing to avoid electrical shock
• Verify power is disconnected and use a multimeter to confirm before touching wiring
• Handle the module and connectors carefully to avoid ESD or connector damage

This 250 VA run capacitor provides the phase shift needed for single-phase appliance motors to start and run efficiently, helping restore reliable motor operation and consistent performance. What it does:

• Supplies the necessary electrical phase shift to support motor starting and continuous operation
• Commonly used with compressor and fan motors in refrigeration and similar appliances
• Fails can cause motor humming, slow or no-start conditions, or intermittent operation
• Replacing a weak or failed capacitor can return normal motor function and reduce stress on the motor

• Disconnect appliance power at the breaker before servicing
• Capacitors can hold charge—discharge safely using insulated tools
• Verify terminal wiring and secure connections; match mounting orientation to the original

This evaporator shelf trim replaces a damaged or missing front edge trim to restore a clean shelf profile and help keep food from sliding off. Fits the evaporator shelf to maintain a finished look and secure edge. What it does:

• Replaces cracked, broken, or missing front shelf trim that can snag bags or produce
• Restores the shelf's finished front edge for safer loading and unloading
• Helps keep small items from rolling off the evaporator shelf opening
• Matches OEM fit to snap into the existing shelf mounting points

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove the shelf per your model's instructions, align the trim with the shelf edge, and press until it snaps into place
• Handle edges carefully and wear gloves if needed; do not force part into place
• If fasteners are present, retain and reuse only OEM-specified hardware

This controller clip secures a control board or wiring harness inside the appliance, preventing movement and reducing the chance of loose connections or interference. A simple replacement that restores proper board mounting and stability. What it does

• Holds the control board or harness in place to prevent vibration and movement
• Helps maintain reliable electrical connections by reducing strain on wiring
• Reduces rattling or contact noise caused by loose internal components
• Can prevent intermittent operation caused by a poorly secured board or wires

• One controller clip

• Disconnect power to the appliance before starting any repair.
• Access the control area per your model's service instructions; remove panels carefully to reach the clip.
• Handle the control board and connectors by their edges; avoid touching circuit traces or components.

A replacement mounting wire clip that secures refrigerator or appliance wiring harnesses to the cabinet or chassis to prevent rubbing and strain. Helps restore correct wire routing and reduces the risk of chafing or intermittent connections. What it does:

• Clips wiring harnesses or individual wires to the frame or panels to keep wires held securely in place
• Prevents wires from contacting sharp edges, heating elements, or moving parts
• Reduces vibration-related noise and intermittent electrical connections
• Useful when original clips are broken, cracked, or missing

• Disconnect power before accessing wiring or removing panels
• Remove any required access panels or trim to reach the clip location; keep fasteners for reassembly
• Slide the harness into the clip or snap the clip into the mounting hole until fully seated; avoid forcing to prevent breakage
• Inspect adjacent wire insulation and replace or re-route damaged wiring before restoring power
