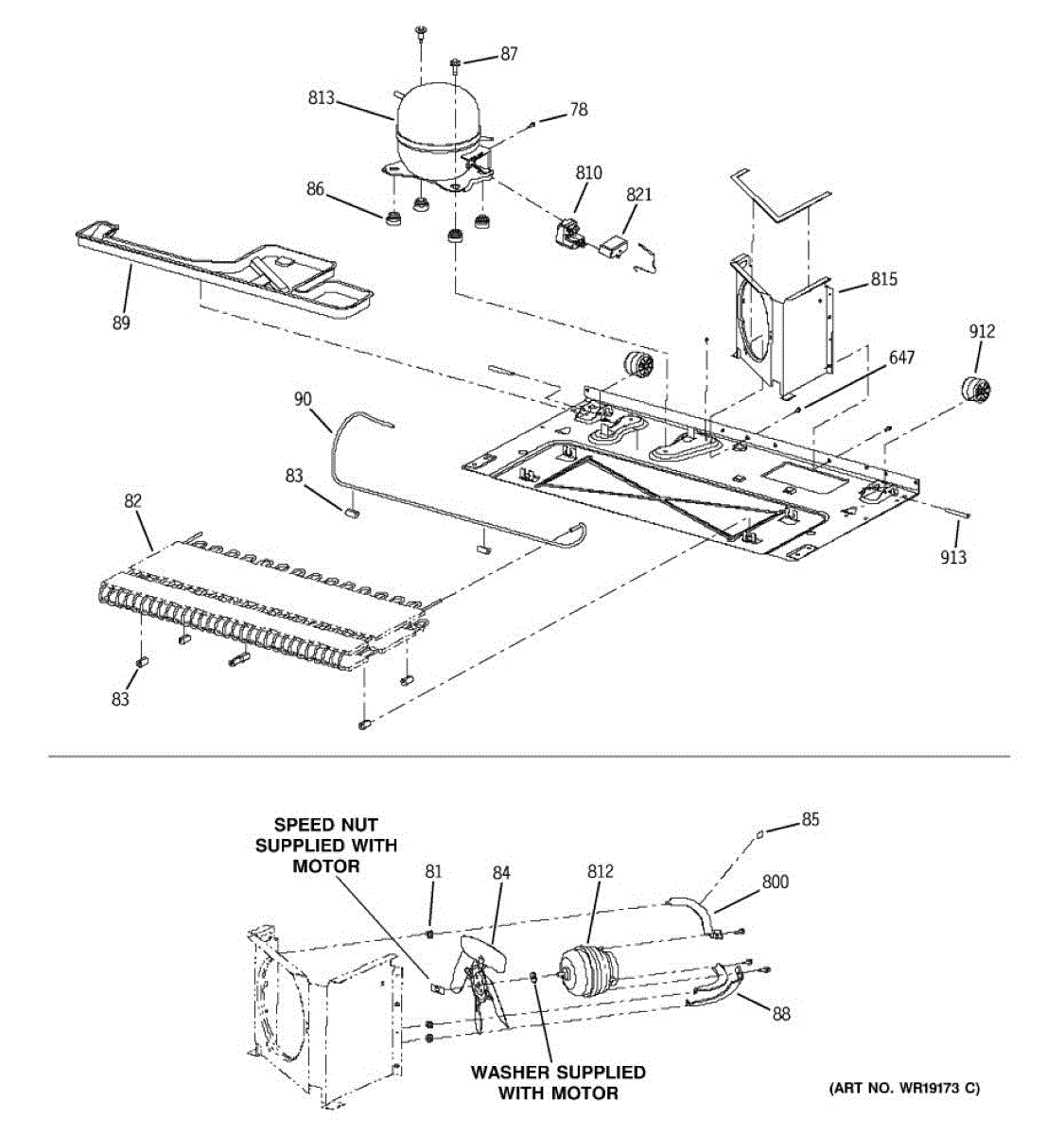

Parts for Ge PDS22LBNACC: 09 - Unit Parts

This compressor grommet cushions and isolates the compressor mounting to reduce vibration and noise, helping components sit securely and preventing metal-to-metal contact. Fits the compressor mounting boss as a direct replacement part. What it does:

• Absorbs compressor vibration to help reduce rattling and operational noise
• Keeps the compressor mounted securely to prevent movement during operation
• Provides a buffer between the compressor and chassis to reduce wear on mounting points
• Helps maintain proper alignment of compressor mounting hardware

• One compressor grommet

• Always unplug the appliance and disconnect power before servicing
• Support the compressor before removing mounting hardware to avoid strain or damage
• Replace grommets one at a time with the correct size and orientation for proper fit
• Inspect adjacent mounts and hardware; replace if cracked, worn, or corroded

This condenser motor bracket secures the condenser/fan motor to the refrigerator chassis, keeping the motor stable and aligned so the fan can cool the condenser effectively and help maintain proper cooling performance. What it does:

• Holds the condenser/fan motor in the correct position to prevent wobble or misalignment
• Reduces motor vibration and rattling that can cause noise
• Helps ensure the condenser fan blade clears surrounding parts for proper airflow
• Restores secure motor mounting when old bracket is cracked, bent, or broken

• Disconnect power before servicing to avoid electrical shock.
• Basic hand tools typically required; access usually via the rear lower service panel.
• Inspect motor mounting screws and fan blade for damage and replace as needed.
