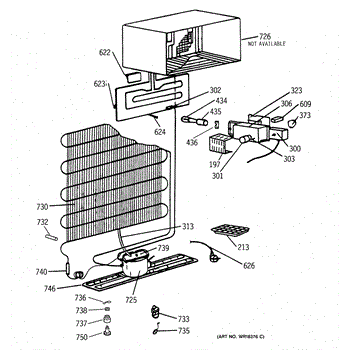

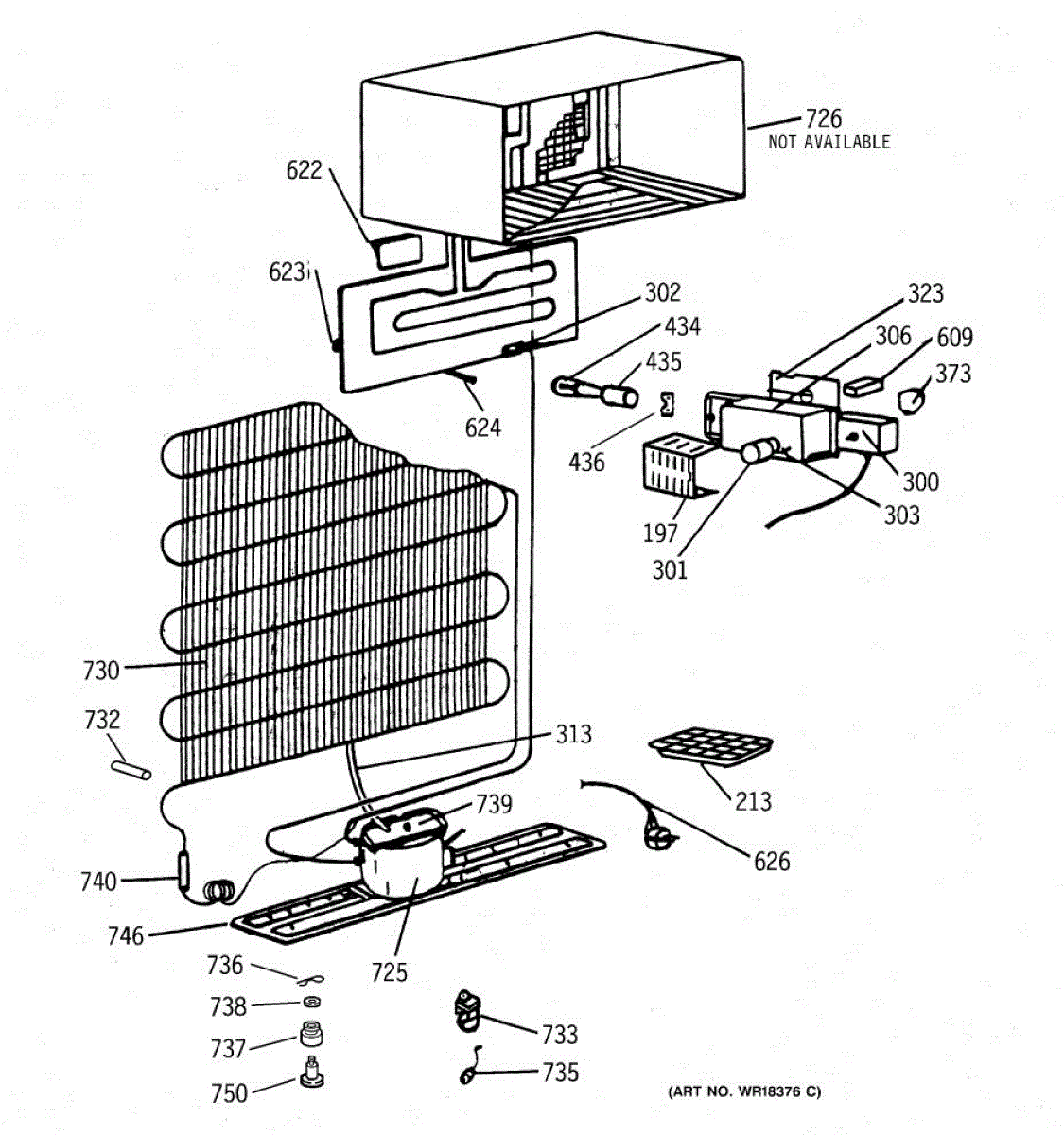

Parts for Ge TDX9SNXBRWH: 03 - Unit Parts

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This replacement drip tray catches and channels condensation or defrost water away from the refrigerator base to help prevent pooling and floor damage. It restores proper drainage and keeps the cabinet area drier. What it does

• Collects defrost and condensation water from the evaporator area and directs it to the drain or evaporator pan
• Helps prevent water pooling under the fridge or inside lower compartments
• Replaces cracked, warped, or missing trays that cause leaks or odors
• Compatible with models that use a fitted rectangular drip tray in the freezer/refrigerator base

• One drip tray

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove lower kickplate or access panel per your model's service instructions to reach the tray
• Replace the tray by sliding it into the molded guides; ensure proper seating for correct drainage
• Check and clear the drain tube before reassembly

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
