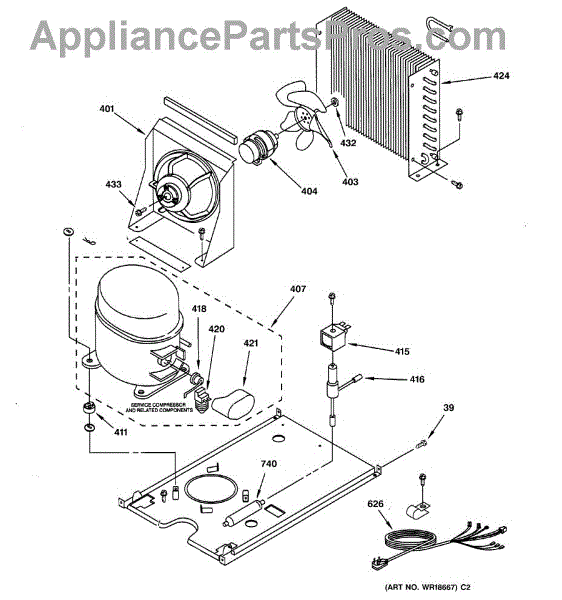

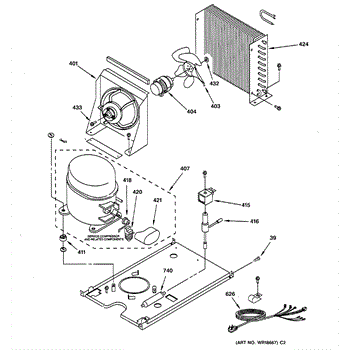

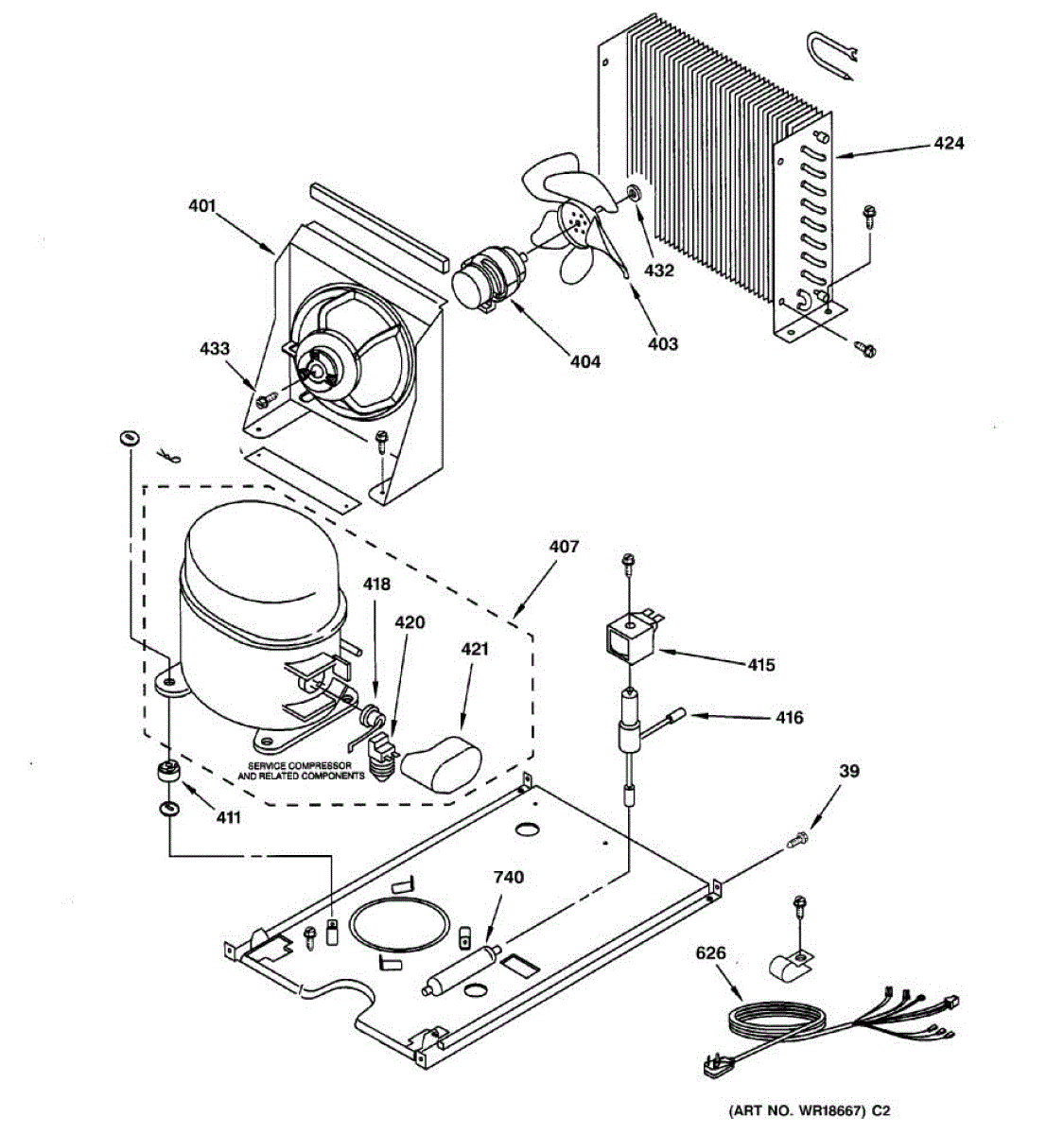

Parts for Ge ZDI15CBBM: 05 - Unit Parts

This plastic condenser fan blade replaces the damaged or broken blade that moves air across the condenser coil to help remove heat. Restores proper airflow to improve condenser cooling and reduce fan noise when working correctly. What it does:

• Replaces a cracked, chipped, or missing condenser fan blade that can cause poor cooling
• Restores balanced airflow across the condenser coil to help the refrigeration system run efficiently
• Stops rubbing or wobbling that can create vibration or abnormal fan noise
• Works with the condenser fan motor assembly to move heat away from the compressor area

• One plastic condenser fan blade

• Turn off power to the appliance before attempting any service to avoid electrical shock
• Inspect the fan motor shaft and mounting hardware; replace any worn parts to prevent repeat failure
• Tighten securely to the motor shaft and verify blade clears the shroud/case before restoring power

This valve and tube kit is a direct-style replacement that controls and supplies water to your appliance's ice maker and dispenser, restoring proper water flow and helping maintain ice production and fill cycles. What it does:

• Replaces a faulty water inlet valve and attached tubing that delivers water to the ice maker/dispenser
• Stops leaks and drips when the valve or connection tubing fail
• Restores water flow when an appliance has weak or no water delivery to the ice maker or dispenser
• Helps correct intermittent filling or inconsistent ice production linked to valve/tube faults

• Turn off the appliance power and shut off the household water supply before starting
• Use basic hand tools; avoid overtightening fittings to prevent leaks
• Inspect and replace any worn seals or clamps during installation
• After installation, restore water and power, then test for leaks and proper fill operation

This condenser coil removes heat from the refrigerator's sealed cooling system so the appliance can maintain proper temperatures. Replacing a damaged or clogged condenser helps restore efficient heat transfer and cooling performance. What it does:

• Circulates refrigerant through the condenser fins to release heat from the cooling circuit
• Helps lower compressor operating temperature by improving heat dissipation
• Commonly used when the fridge runs constantly, is unusually warm, or shows reduced cooling efficiency
• Restores proper airflow and can prevent compressor overwork when coils are damaged or obstructed

• One condenser coil

• Disconnect power to the appliance before starting work
• Expect sharp edges; wear gloves and eye protection
• May require moving or tilting the appliance for access—have a helper if needed
• If the sealed refrigerant circuit is compromised, refrigerant handling or brazing may be required.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
