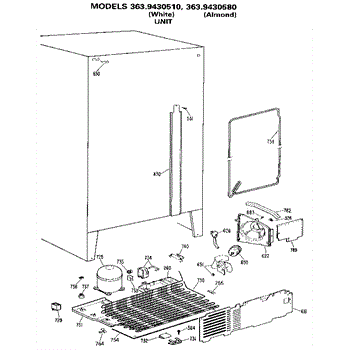

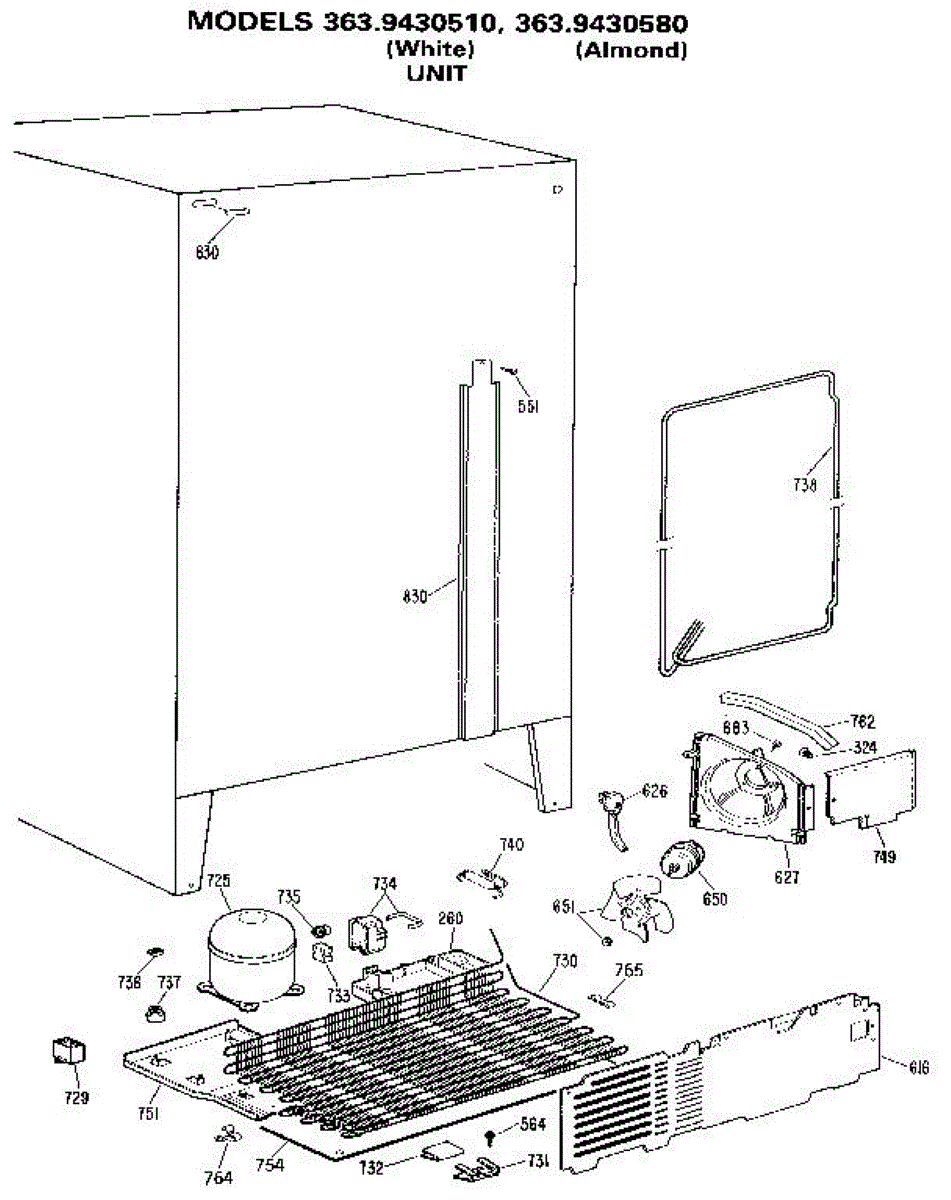

Parts for Kenmore 363.9430510 (3639430510, 363 9430510): Unit Parts

Plastic plug button insert for refrigerator shelves and interior panels. Replaces missing, cracked, or broken plug inserts that leave exposed holes.

Package of 12

Sealer plug for refrigerators. Seals unused holes or openings in cabinet panels. Replace if cracked, broken, or missing to maintain proper appearance.

Compressor for refrigerators and freezers. This core cooling component may need replacement if damaged or failed. Installs in the sealed system.

This evaporator fan blade mounts on the fan motor and circulates cold air across the evaporator coils and throughout the compartments. Replacing a cracked, warped, or loose blade restores proper airflow and stable temperatures.

• Moves air across the evaporator to distribute cooled air evenly
• Helps maintain consistent refrigerator and freezer temperatures
• Common symptoms include weak or no airflow, warm spots, frost buildup on the evaporator cover, and rattling/scraping noises
• Replace if the blade is damaged or spins loosely on the motor shaft

• Disconnect power before servicing
• Remove shelves/bins and the rear evaporator cover to access the fan
• Note blade orientation and seating depth; pull the old blade straight off the motor shaft
• Press the new blade on until fully seated; verify free spin and proper clearance before reassembly

Compressor clicks on and off or won't start? This PTC start relay energizes the compressor start winding to restore consistent cooling. DIY-friendly repair.

This part has been discontinued by the manufacturer and is no longer available.

This is a small clip used to secure the condenser tubing or coil in place on the back or underside of a refrigerator. It keeps the condenser components properly positioned for efficient heat dissipation. Replace this clip if it is broken or missing, which can allow condenser tubing to shift, vibrate, or contact other parts and cause rattling noises.

Stamped steel plate that secures the compressor to the refrigerator cabinet. Replace if cracked, bent, or rusted to restore stability and reduce vibration.

This condenser clip secures the refrigerator condenser coil to the cabinet, helping keep the coil stable and properly spaced for efficient cooling. It's a small but important mount/retainer for condenser assemblies. What it does

• Holds condenser coil or condenser assembly in place to prevent vibration and movement
• Maintains correct coil spacing for proper airflow and heat transfer
• Helps reduce rattling or knocking noises caused by loose condenser components
• Prevents coil damage from contact with cabinet or other components

• Inspect surrounding sheet metal and wiring before installation; replace if damaged
• Install with the correct fastener or tab engagement; do not force or bend the clip beyond its design
• Disconnect power to the appliance before accessing condenser area to avoid electrical or sharp-edge hazards
• Replace all affected retainers for stable mounting

Please note: You may also need to order an adapter. For the adapter to convert the male connector from rectangular to oval use part number WR29X10049. Water valve in kit is part# WR57X10033.
