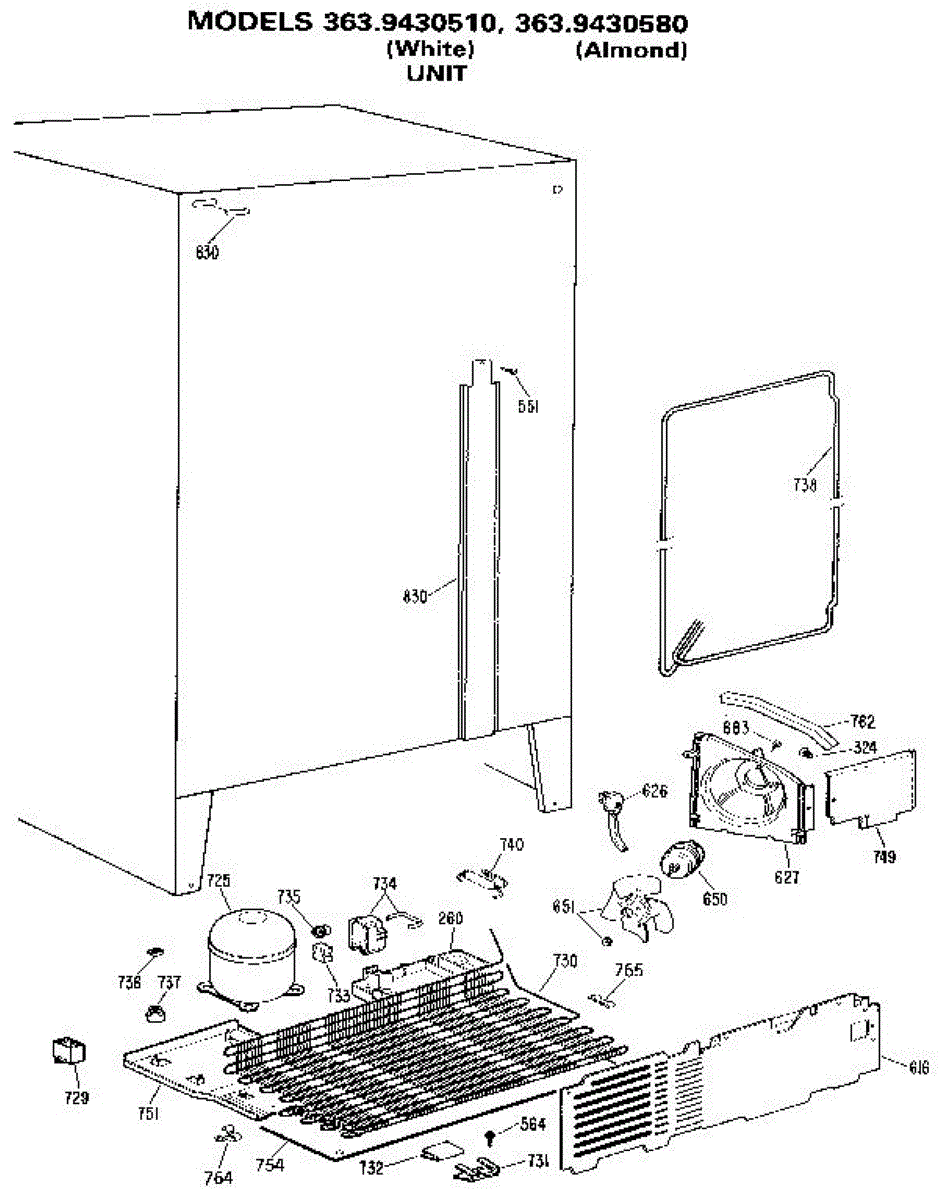

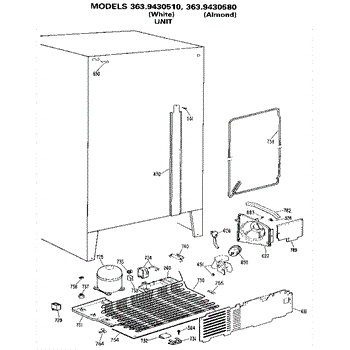

Parts for Kenmore 363.9430580 (3639430580, 363 9430580): Unit Parts

Package of 12

This evaporator fan blade mounts on the fan motor and circulates cold air across the evaporator coils and throughout the compartments. Replacing a cracked, warped, or loose blade restores proper airflow and stable temperatures.

• Moves air across the evaporator to distribute cooled air evenly
• Helps maintain consistent refrigerator and freezer temperatures
• Common symptoms include weak or no airflow, warm spots, frost buildup on the evaporator cover, and rattling/scraping noises
• Replace if the blade is damaged or spins loosely on the motor shaft

• Disconnect power before servicing
• Remove shelves/bins and the rear evaporator cover to access the fan
• Note blade orientation and seating depth; pull the old blade straight off the motor shaft
• Press the new blade on until fully seated; verify free spin and proper clearance before reassembly

This PTC start relay mounts on the refrigerator compressor and briefly energizes the start winding, then automatically opens as it warms. Replacing a weak relay helps restore reliable compressor starts and consistent cooling. What it does:

• Provides momentary power to the compressor's start winding at startup; the PTC element opens as it heats
• Helps ensure smooth compressor starts and reduces repeated start attempts
• Signs of a failed start device can include no cooling because the compressor won't run
• Clicking or buzzing from the compressor area every few minutes
• Compressor starts intermittently or stops shortly after starting

• Includes: 1 PTC start relay

• Disconnect power and pull the refrigerator forward to access the rear service area
• Remove the rear panel to reach the compressor compartment
• Unplug the wire harness and pull the old relay straight off the compressor terminals; note its orientation
• Push the new relay fully onto the compressor prongs, reconnect the harness, reinstall the panel, and restore power

This part has been discontinued by the manufacturer and is no longer available.

A stamped mounting plate that secures the compressor to the refrigerator cabinet, helping keep the compressor stable and reducing vibration during operation. Fits original-equipment compressor assemblies. What it does:

• Provides a secure mounting surface to fasten the compressor to the cabinet frame
• Dampens and reduces compressor vibration that can cause noise or movement
• Keeps the compressor properly aligned for reliable refrigerant line routing
• Helps prevent stress on compressor mounts and surrounding components

• One compressor mounting plate

• Disconnect power to the appliance before starting any repair
• Support the compressor while removing and installing the plate to avoid strain on refrigerant lines
• Use the original mounting hardware when possible; replacement fasteners if needed

This condenser clip secures the refrigerator condenser coil to the cabinet, helping keep the coil stable and properly spaced for efficient cooling. It's a small but important mount/retainer for condenser assemblies. What it does

• Holds condenser coil or condenser assembly in place to prevent vibration and movement
• Maintains correct coil spacing for proper airflow and heat transfer
• Helps reduce rattling or knocking noises caused by loose condenser components
• Prevents coil damage from contact with cabinet or other components

• Inspect surrounding sheet metal and wiring before installation; replace if damaged
• Install with the correct fastener or tab engagement; do not force or bend the clip beyond its design
• Disconnect power to the appliance before accessing condenser area to avoid electrical or sharp-edge hazards
• Replace all affected retainers for stable mounting

Please note: You may also need to order an adapter. For the adapter to convert the male connector from rectangular to oval use part number WR29X10049. Water valve in kit is part# WR57X10033.
