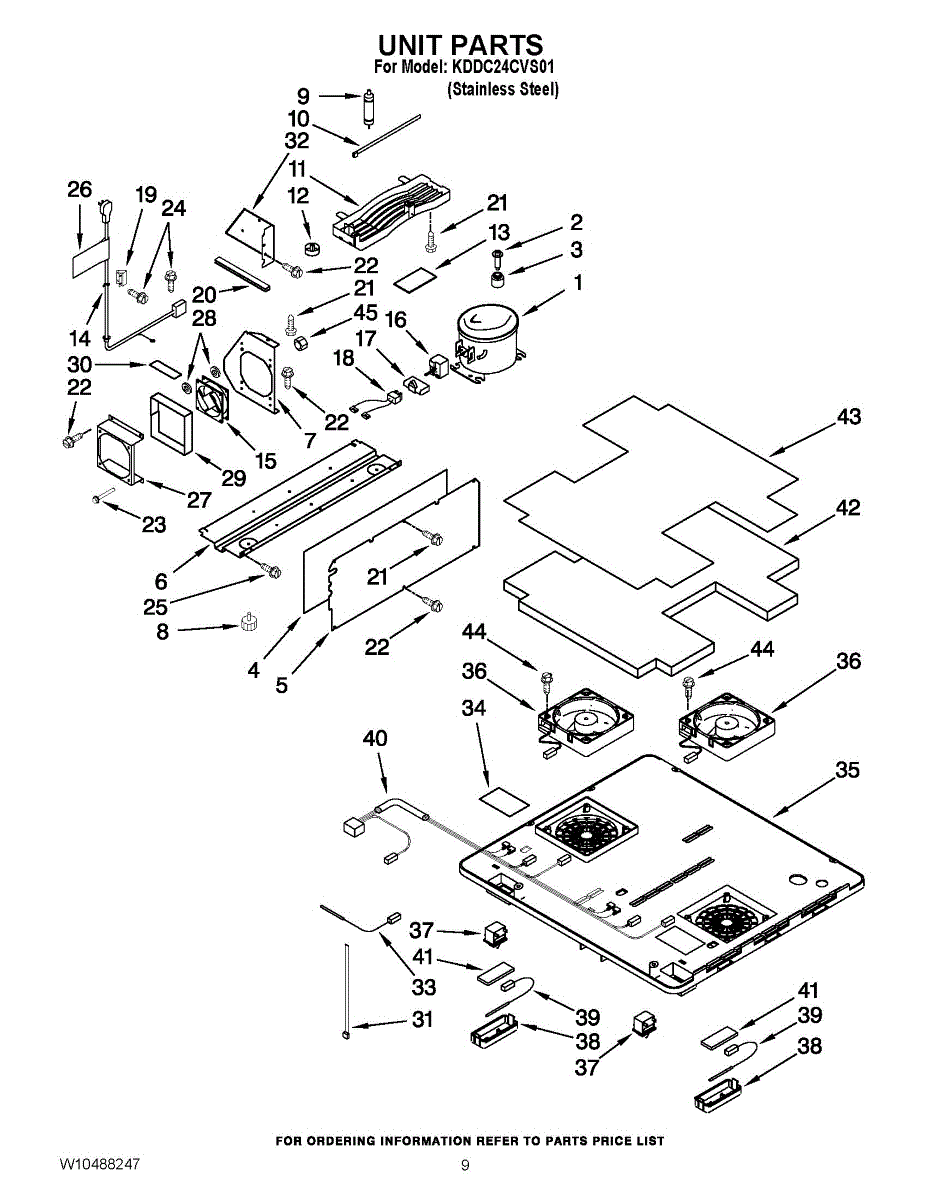

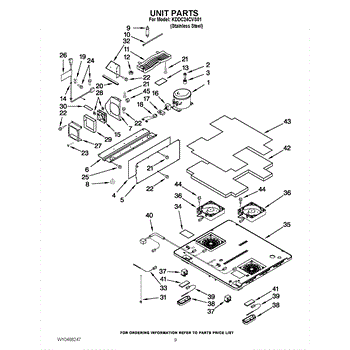

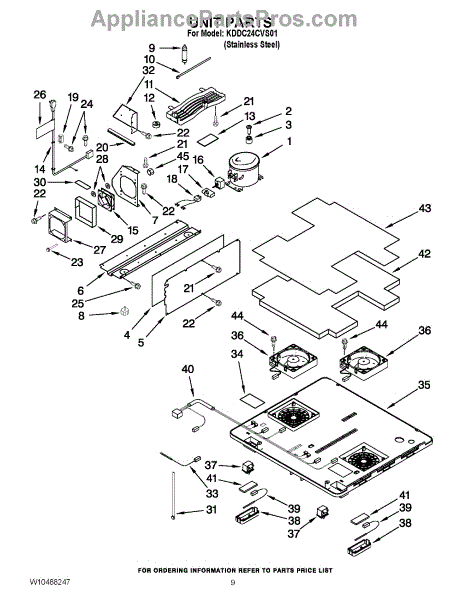

Parts for Kitchenaid KDDC24CVS01: 05 - Unit Parts

The Whirlpool EveryDrop Refrigerator Water Filter 6 is an OEM part for Whirlpool refrigerators. This water filter is designed to reduce contaminants in the water supply, such as chlorine, lead, and other harmful substances, ensuring clean and safe drinking water and ice. It provides up to six months of filtration before needing replacement.

Causes of a bad water filter can include the end of its lifespan, clogging from excessive contaminants, or damage from improper installation. Over time, filters lose their effectiveness as they reach their capacity to absorb impurities.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in water and ice
• Cloudy or discolored water
• The filter indicator light on the refrigerator signaling a replacement

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement dryer tube channels heated air from the dryer cabinet to the lint filter/blower and exhaust path, restoring proper airflow and helping the cycle dry clothes efficiently. Use it when the original tube is cracked, crushed, or blocked. What it does

• Directs dryer airflow from the drum/blower chamber to the lint trap and exhaust.
• Helps maintain proper venting to prevent overheating and inefficient drying.
• Reduces air leaks that can cause longer dry times or hot spots.
• Minimizes lint buildup in the cabinet by providing a smooth, routed path for debris to the lint filter.

• One dryer tube

• Disconnect power (and gas supply if applicable) before servicing; ensure the dryer is completely powered off.
• Remove front or rear access panel as required to reach and replace the tube; keep fasteners for reassembly.
• Inspect adjacent seals and clamps; replace any damaged gaskets or worn clamps for a secure fit.
• Use gloves to avoid sharp sheet-metal edges and run a short test cycle to ensure proper airflow and quiet operation.

This genuine replacement power cord restores safe, reliable electrical connection for compatible ranges and ovens. It replaces a damaged or frayed cord so the appliance can receive mains power without safety hazards. What it does

• Delivers AC mains power to the appliance via the factory connector and terminal block
• Replaces cords with exposed wires, scorch marks, melting, or broken insulation
• Stops intermittent power loss caused by damaged or loose cord connections
• Prevents arcing and reduces fire risk from compromised power leads

• One replacement power cord

• Always disconnect household power at the breaker before servicing the appliance
• Verify the cord matches your appliance's terminal block and local electrical code; a licensed electrician may be required
• Inspect and reuse or replace the strain relief and terminal block screws as needed for a safe connection
• Do not attempt repairs if wiring or terminals are corroded—replace damaged components

This motor capacitor helps the dryer motor start and keep running smoothly by providing the electrical boost the motor needs. Replacing a failing capacitor restores normal motor operation and reliable drying performance. What it does:

• Provides the start/run electrical boost required for the dryer motor to spin
• Helps prevent motor stalling, slow spin, or intermittent operation
• A failed capacitor can cause humming, no-start, or the drum not to turn
• Restoring the correct capacitor value protects the motor from stress and overheating

• Disconnect power to the appliance before service to avoid shock
• Discharge the capacitor safely before removing (use insulated tools and follow OEM guidance)
• Replace with the same part number/specification; secure terminals and mounting

The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This wire harness cover protects and organizes appliance wiring, helping prevent abrasion and accidental contact for safer, more reliable operation. It keeps wiring routed and out of the way of moving parts. What it does:

• Shields wiring from rubbing, chafing and heat exposure that can cause shorts
• Helps keep harnesses routed neatly to reduce strain and interference
• Can stop intermittent electrical issues when worn covers expose wiring
• Commonly replaced when cover is cracked, melted, or missing

• Disconnect power (unplug or shut off breaker) before starting work
• Remove access panels as required; secure the harness under the cover and fasten per factory locations
• Use basic hand tools (screwdriver/socket) and avoid forcing clips to prevent breakage
• Repair or replace the harness before reassembling

This evaporator fan motor drives the freezer fan that circulates cold air across the evaporator coils and through the ducts. Replacing a weak or noisy motor restores proper airflow for consistent cooling and defrost performance.

• Circulates cold air from the evaporator through the freezer and fresh food compartments
• Helps maintain even temperatures and quicker recovery after door openings
• Common failure symptoms: warm refrigerator section, little/no airflow from vents, loud humming/squealing or intermittent fan operation, and frost/ice buildup on the freezer's rear panel
• Also known as the freezer fan motor or "Motor-Evap"

• Disconnect power; remove shelves/drawers and the rear interior freezer panel to access the fan
• Note wiring and mounting orientation; unplug connectors and remove the old motor
• Transfer the fan blade and any rubber isolators/mounting hardware from the original motor if needed
• Ensure blade orientation and wire routing clear the blades; test operation before reassembly

This is the appliance control box — the electrical assembly that manages cycle selection, timing and power distribution so your appliance responds correctly to user commands. Replacing a faulty control box restores normal control and cycle operation. What it does:

• Receives inputs from the user interface and controls cycle timing and sequences
• Switches power to motors, valves, heaters or other components as directed
• Sends/receives signals to control indicators and status displays
• Can cause no-start, unresponsive controls, error codes, or incorrect cycles when faulty

• Disconnect all power before attempting replacement to avoid electrical shock
• Handle the board carefully and avoid static discharge; use ESD protection if available
• Reinstall all covers and wire connectors securely; test appliance functions after power is restored

A single replacement mounting screw used to secure appliance panels and components for a stable fit and quiet operation. Use this screw to replace missing or damaged fasteners and restore proper panel alignment and function. What it does:

• Secures panels, trim, and internal brackets to prevent movement and rattling
• Restores proper alignment where a lost or stripped screw allowed gaps
• Helps maintain electrical and mechanical component positioning for safe operation
• Suitable as a direct replacement when the original screw is damaged or missing

• One replacement mounting screw

• Turn off and unplug the appliance before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug—do not overtighten to prevent thread or part damage
• If threads are damaged, replace the mating captive nut or insert as needed
