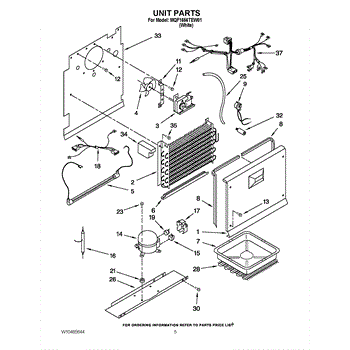

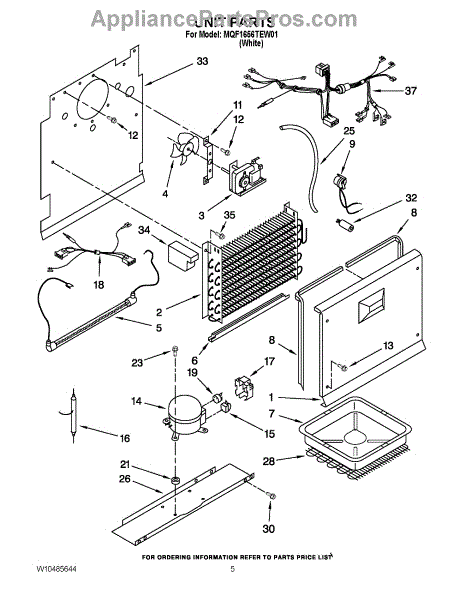

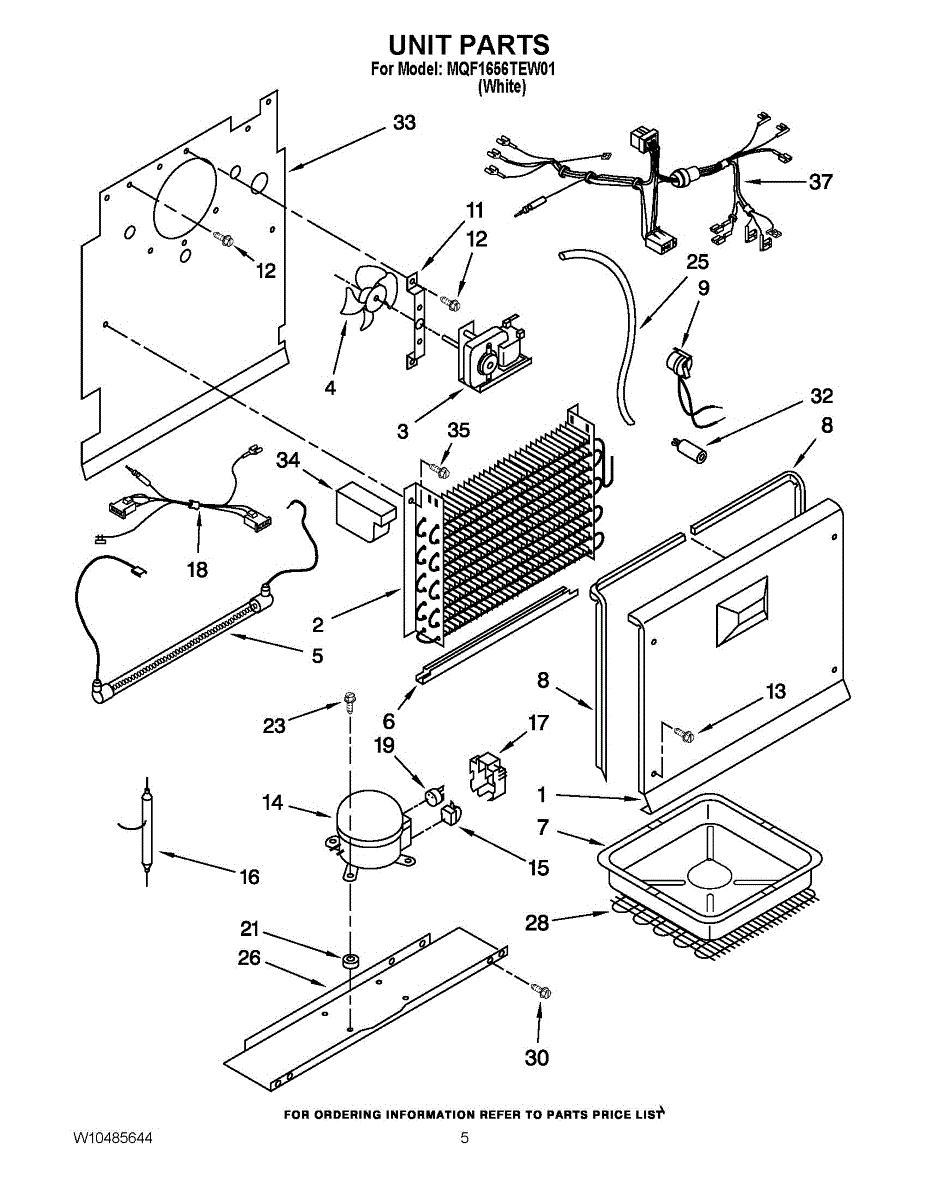

Parts for Maytag MQF1656TEW01: 03 - Unit Parts

The Evaporator Motor is an OEM replacement part for Whirlpool refrigerators. This small but powerful motor circulates cold air inside the fridge and freezer compartments.

Causes of a bad evaporator motor include bearings seizing up or windings burning out due to age. Without proper lubrication, motors can quickly fail in refrigeration applications.

Symptoms of a bad evaporator motor include:

• Inefficient or fluctuating cooling inside the fridge and freezer
• Buzzing or grinding noises from cooling ventilation
• Frost developing unevenly or melting unexpectedly

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, and some Kenmore refrigeration units as well.

The Fan Blade and Spring Clip is an OEM part for Whirlpool refrigerators. This component is responsible for circulating air within the refrigerator, ensuring even cooling throughout the compartments. The fan blade moves the air, while the spring clip secures it in place, maintaining optimal airflow.

Causes of a bad fan blade and spring clip can include wear and tear over time, damage from debris or food particles, or issues with the motor that cause the blade to malfunction. If the fan blade is not working correctly, it can lead to inadequate cooling and uneven temperatures in the refrigerator.

Symptoms of a bad fan blade and spring clip include:

• Unusual noises from the fan area
• Inconsistent temperatures inside the refrigerator
• The refrigerator running constantly or not cooling properly
• Visible damage or wear to the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This defrost thermostat is a bi-metal switch that senses evaporator temperature during defrost and opens to stop heater power once the coil warms. Replacing a failed thermostat restores proper defrost, reducing ice buildup and airflow-related cooling problems.

• Monitors evaporator coil temperature during defrost
• Opens the heater circuit at a set temperature; recloses when cold for the next defrost
• Helps protect against overheating and ensures consistent defrost operation
• Common symptoms: heavy frost on the evaporator, weak airflow/warm fresh food section, repeated ice buildup after manual defrost

• Disconnect power before servicing; wear cut-resistant gloves
• Access the thermostat at the evaporator behind the freezer's rear panel
• Move wires one-for-one from the old part; mount in firm contact with the coil/tubing and secure leads away from the fan
• After installation, the thermostat should show continuity when cold and open circuit when warm

Size: 8 x 1/2 ab.

This PTC motor start relay provides the temporary start circuit needed for the motor to spin up, restoring normal starting on appliances with a failed start relay. Simple replacement for appliances that won't start or hum at power-up. What it does

• Supplies a temporary current path to the motor's start winding during startup.
• Drops out once the motor reaches running speed so the motor operates on its run winding.
• Commonly used when an appliance won't start, hums but won't spin, or has intermittent start problems.
• Works with the motor and start circuitry; does not include a motor or harness.

• Disconnect power before servicing to avoid shock or injury.
• Access usually requires removing an access panel—keep track of screws and mounting hardware.
• Replace with the exact part number shown on your appliance or parts list; ensure correct orientation and secure connections.

This terminal cover protects the appliance's power connection area, keeping wiring and terminals enclosed to reduce shock and short risks. It's a direct-replacement trim piece that restores the factory protective barrier around the terminal block. What it does:

• Covers and shields the terminal block where the power cord connects, helping prevent accidental contact.
• Helps reduce the risk of shorting or arcing at exposed power connections.
• Addresses symptoms like visible exposed terminals, loose or unprotected wiring at the power entry area, or a missing/broken cover.
• Restores the appliance's intended safety enclosure after repair or shipping damage.

• One terminal cover

• Always disconnect all power (unplug or shut off breaker) before accessing the terminal block.
• Remove the old cover and position the replacement over the terminal area so mounting holes align; secure with the original screw(s).
• Inspect terminal screws and wiring for tightness and damage while cover is off; do not attempt electrical repairs.
• If terminals or wiring are damaged, replace or repair those components before reinstalling the cover.

This wire harness routes electrical signals between the appliance control and internal components, restoring reliable communication and power paths. It replaces damaged or burned wiring to help resolve intermittent or failed control functions. What it does:

• Reconnects control board circuits to motors, switches, sensors, or terminal blocks
• Restores proper signal and power flow when wiring is damaged or shorted
• Helps stop intermittent operation, unexplained shutdowns, or control non-responsiveness
• Provides OEM-style replacement wiring and connector fit for direct swap

• Always disconnect power (unplug or shut off circuit breaker) before installing
• Handle connectors by the housing; avoid pulling on individual wires
• Confirm connector orientation and secure all clips and fasteners for strain relief
