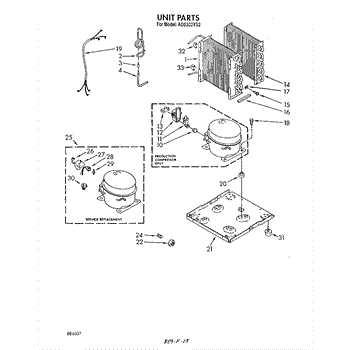

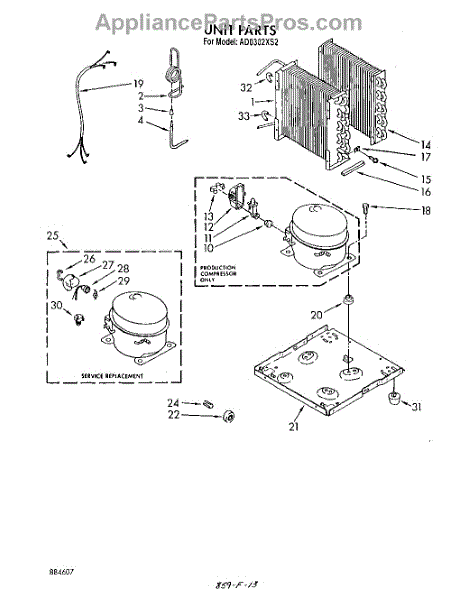

Parts for Whirlpool AD0302XS2: 02 - Section Parts

02 - Section
Dehumidifier

Parts for Whirlpool AD0302XS2: 02 - Section Parts

Location on Diagram
Part Description
Price & Availability
1

Condenser

By: Whirlpool
Part Number: 1159231

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo

Tube - Restr

By: Whirlpool
Part Number: WP484323

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo

Tube & Outlet (Includes Illus. 24)

By: Whirlpool
Part Number: 484230

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Tube, Outlet (Includes No.3)

By: Whirlpool
Part Number: 1159239

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Overload (Production)

By: Whirlpool
Part Number: 1158790

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Relay, Start (Production)

By: Whirlpool
Part Number: 1156815

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Cover Terminal (Production)

By: Whirlpool
Part Number: 1157582

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Clamp

By: Whirlpool
Part Number: 938384

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Evaporator

By: Whirlpool
Part Number: 1159235

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Screw

By: Whirlpool
Part Number: 4159456

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Seal - Strip

By: Whirlpool
Part Number: 853915

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
Product photo

Appliance Fastener Nut

By: Whirlpool
Part Number: 488660

Replacement fastener nut for securing panels, brackets, and components in various appliances. Needed when original nut is stripped, missing, or corroded.

More
$8.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Product photo

Sail Switch

By: Bosch
Part Number: 00488400

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Harness Wiring (Compressor Service)

By: Whirlpool
Part Number: 484136

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Grommet

By: Whirlpool
Part Number: 1156748

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Base

By: Whirlpool
Part Number: 1157584

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Wheel

By: Whirlpool
Part Number: 998726

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Roller Pin

By: Whirlpool
Part Number: 489015

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25
Product photo

Compressor

By: Whirlpool
Part Number: W10619807

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26

Strap

By: Whirlpool
Part Number: 549342

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Cover - Terminal

By: Whirlpool
Part Number: 4387271

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Overload

By: Whirlpool
Part Number: 876686

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Spring

By: Whirlpool
Part Number: 549086

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30

Relay - Curr

By: Whirlpool
Part Number: 598215

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31

Glide - Natural

By: Whirlpool
Part Number: 951886

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Bend

By: Whirlpool
Part Number: WP855199

More
$5.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
33

Return Bend Replacement Kit (3/8`` Tube)

By: Whirlpool
Part Number: 4388785

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
