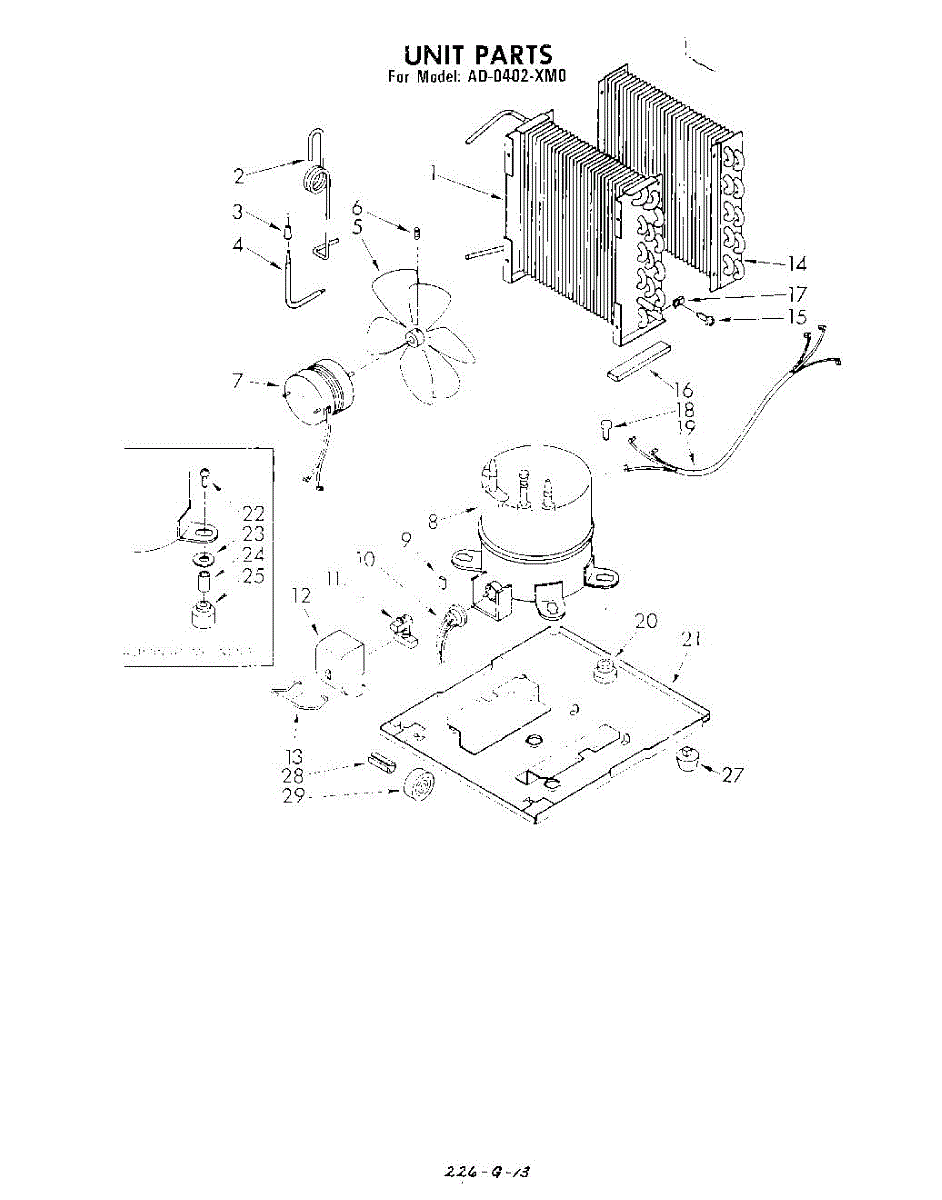

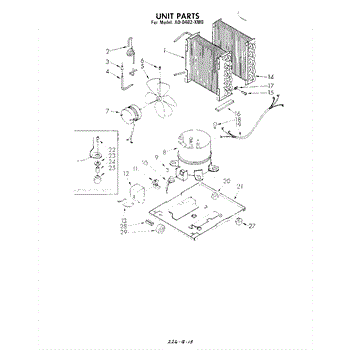

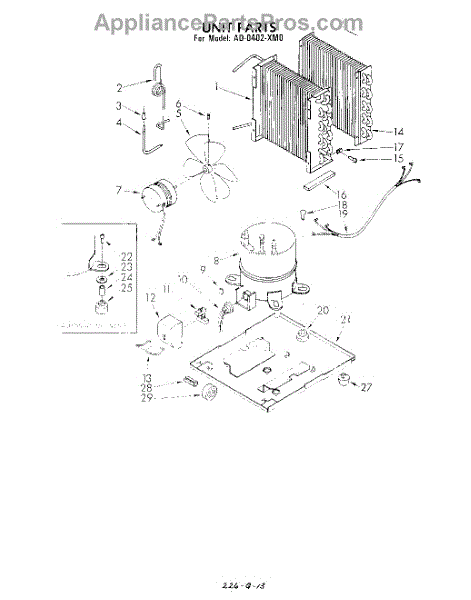

Parts for Whirlpool AD0402XM0: 02 - Section Parts

02 - Section
Dehumidifier

Parts for Whirlpool AD0402XM0: 02 - Section Parts

Location on Diagram
Part Description
Price & Availability
1

Condenser

By: Whirlpool
Part Number: 951345

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo

Tube - Restr

By: Whirlpool
Part Number: WP484323

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo

Tube & Outlet (Includes Illus. 24)

By: Whirlpool
Part Number: 484230

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
Product photo

Tube & Outlet (Includes Illus. 24)

By: Whirlpool
Part Number: 484230

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Blade - Fan

By: Whirlpool
Part Number: 949645

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Screw

By: Whirlpool
Part Number: 90196

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Fan Motor

By: Whirlpool
Part Number: 1162508

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Compressor

By: Whirlpool
Part Number: 876715

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Bumper

By: Whirlpool
Part Number: 547272

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Overload No Longer Available.

By: Whirlpool
Part Number: 998788

This part has been discontinued and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
Product photo

Start Relay (Compressor)

5.0 (1)
By: Whirlpool
Part Number: 4318083

Start relay for refrigerator compressors that helps the compressor begin running at power-up. Replacing a failed relay can restore normal starting behavior and resolve common startup symptoms. What it does

  • Provides the initial start current path to the compressor during startup.
  • Allows the compressor to reach running speed, then drops out once the motor is running.
  • Common symptoms a bad relay may cause: compressor clicking, humming without starting, intermittent cooling or frequent cycling.
  • Installed as the electrical component used only on compatible compressor assemblies.
What's included Includes one start relay. Install notes
  • Disconnect power to the appliance before servicing to avoid electrical shock.
  • Access the relay at the compressor; remove and replace the relay only after confirming diagnostics.
  • Dispose of the old electrical part per local regulations.

More
$67.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12

Cover

By: Whirlpool
Part Number: 549945

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Strap

By: Whirlpool
Part Number: 531318

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Evaporator

By: Whirlpool
Part Number: 1159235

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Screw

By: Whirlpool
Part Number: 4159456

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Seal - Strip

By: Whirlpool
Part Number: 853915

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
Product photo

Appliance Fastener Nut

By: Whirlpool
Part Number: 488660

Replacement fastener nut for securing panels, brackets, and components in various appliances. Needed when original nut is stripped, missing, or corroded.

More
$8.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Product photo

Sail Switch

By: Bosch
Part Number: 00488400

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Harness Wiring (Compressor Service)

By: Whirlpool
Part Number: 484136

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Grommet

By: Whirlpool
Part Number: 547283

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Base

By: Whirlpool
Part Number: 998720

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Xscrew, 1/4 - 28 X 1 - 1/4

By: Whirlpool
Part Number: 489027

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Xwasher, Cup

By: Whirlpool
Part Number: 489030

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Sleeve (Service Only)

By: Whirlpool
Part Number: 4387559

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Compressor Grommet

By: Whirlpool
Part Number: WP469581

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Foot - Glide

By: Whirlpool
Part Number: 813604

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Roller Pin

By: Whirlpool
Part Number: 489015

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Wheel

By: Whirlpool
Part Number: 998726

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
