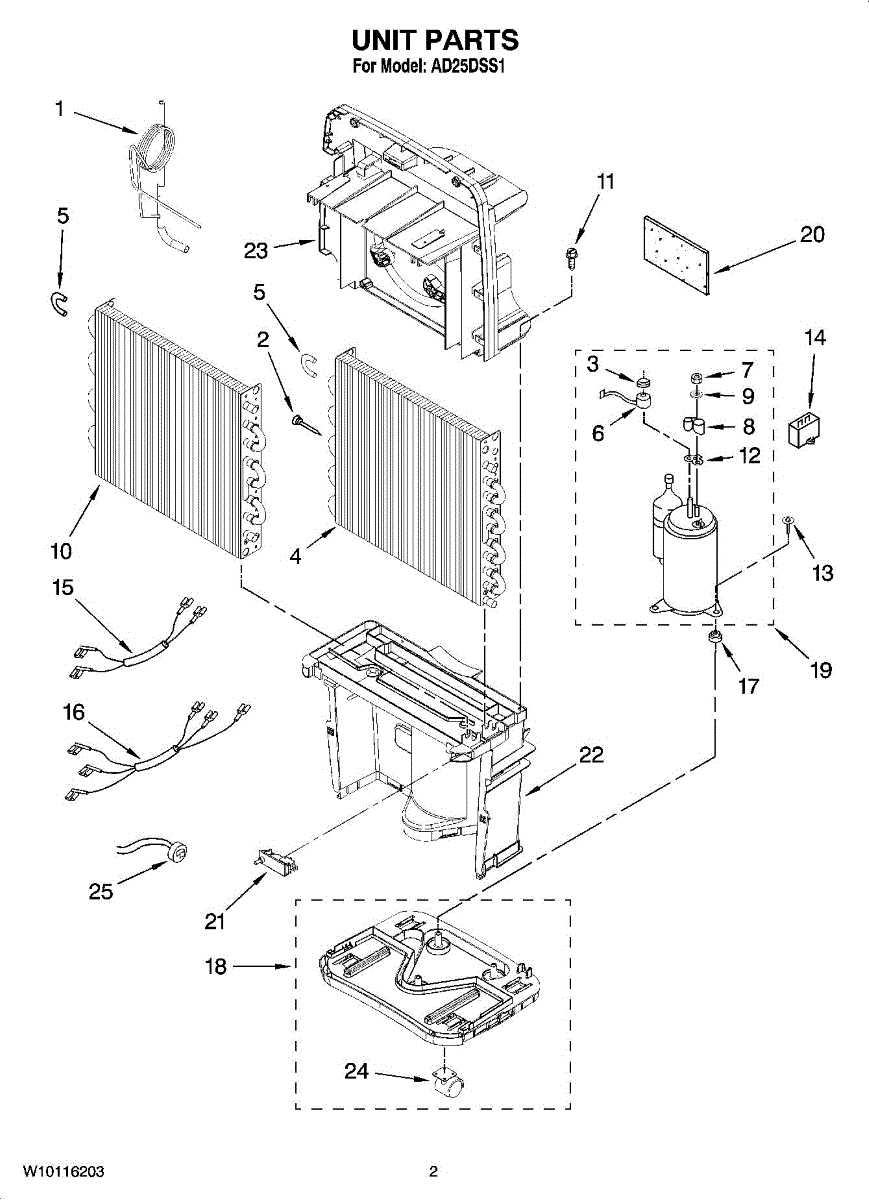

Parts for Whirlpool AD25DSS1: 02 - Unit Parts

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This water level pressure switch senses tub water height and tells the washer control when to stop filling for correct load levels. Replaces a failed or intermittent pressure sensor to restore proper fill control and cycle operation. What it does

• Detects water level changes via air pressure from the drain/tub to signal the control board.
• Stops filling when the correct water level is reached to prevent overfill.
• Resolves symptoms like overfilling, underfilling, or washer that won't advance cycles when caused by a faulty switch.
• Works with the washer's control system—does not include hoses or wiring harness.

• One water level pressure switch (one complete switch assembly).

• Disconnect power and turn off the water supply before replacing the switch.
• Verify location and routing of the pressure hose; replace any cracked or collapsed hose that can cause false readings.
• Handle electrical connectors and the pressure port carefully—avoid pulling wires or forcing tabs.
• Test operation after installation by running a fill/drain cycle and observing fill level.
