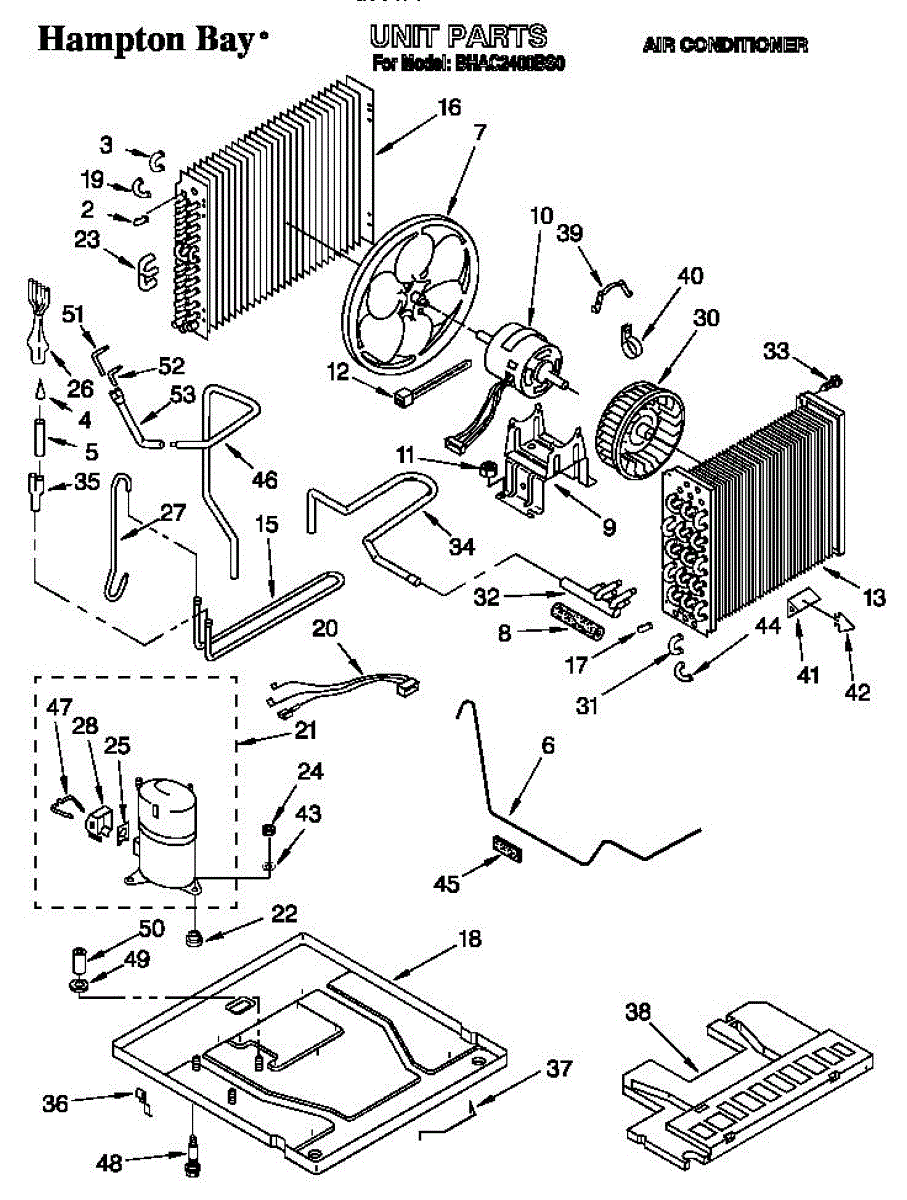

Parts for Whirlpool BHAC02400BS0: Unit Parts

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This motor clip secures a motor to its mounting bracket or housing, keeping it aligned and stable during operation. Replacing a bent, broken, or missing clip helps stop rattling and prevents the motor from shifting. What it does:

• Retains the motor on its mounting bracket or frame
• Helps maintain alignment to reduce vibration and noise
• Prevents movement that can cause rubbing or wire strain
• Direct replacement when the original clip is damaged or missing

• One motor clip

• Disconnect power before servicing; allow all moving parts to stop
• Access the motor area, note the clip's orientation, and remove the damaged clip
• Seat the motor fully, then install the new clip to secure it to the bracket
• Inspect related mounts/grommets and wiring for wear; verify clearances before restoring power

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
