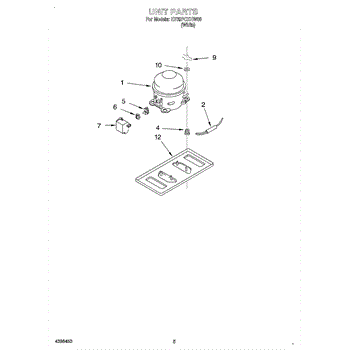

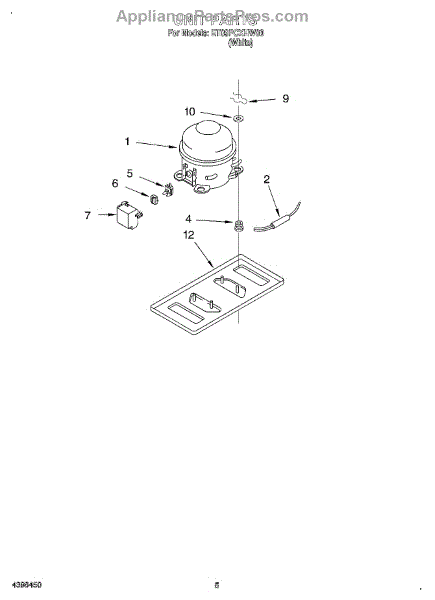

Parts for Whirlpool ET09PCXHW00: 03 - Unit Parts

This refrigerator compressor circulates refrigerant to cool the appliance and restore proper temperatures. Replaces a failed compressor to help the refrigerator maintain set temperatures when the cooling system is compromised. What it does:

• Pumps refrigerant through the sealed cooling system to enable heat exchange and cooling.
• Runs the refrigeration cycle so the refrigerator and freezer can reach and hold target temperatures.
• Common symptom linkage: fridge not cooling, compressor humming or not running, or frequent cycling.
• Can cause system pressure issues if damaged or leaking.

• One compressor (single sealed unit)

• Power should be disconnected before beginning work and the refrigerant must be recovered per regulations.
• System evacuation, leak testing, and proper recharge with the correct refrigerant are necessary after replacement.
• May require replacement of mounting hardware, start device, or filter-drier—verify system condition during service.

The Relay and Overload Kit is an OEM replacement part for Whirlpool refrigerators. It is an essential component of the refrigerator's electrical control system, responsible for powering components and protecting circuits from overload.

Causes of a bad relay and overload kit include circuit malfunctions, failed or worn-out components, or improper installation.

Symptoms of a bad relay and overload kit are:

• Refrigerator not cooling or icing
• Components like lights or fans not working
• Buzzing or humming noises from the electrical control area
• Repeated blown fuses

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power
