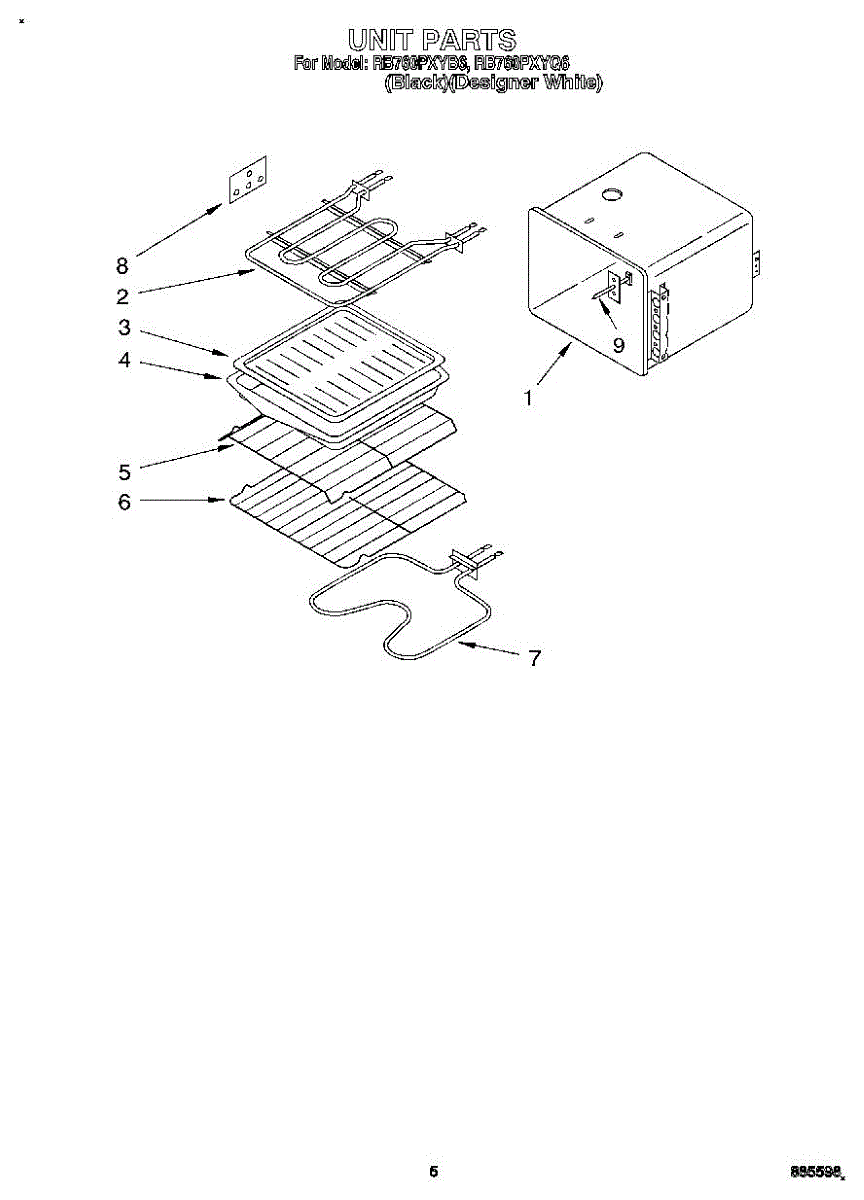

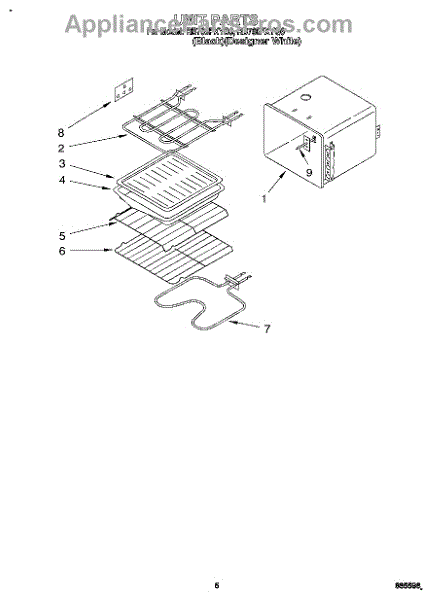

Parts for Whirlpool RB760PXYB6: 04 - Unit Parts

The Broil Element is an OEM component for Whirlpool wall ovens and ranges. Located at the top of the oven cavity, the broil element is responsible for providing intense heat from above for searing and browning foods. The element measures approximately 12" wide x 19" long.

Symptoms of a bad broil element include:

• The broil function not working or heating very little
• Oven takes a long time to preheat

Over many uses, the coil filaments within the broil element can weaken and break from prolonged exposure to high heat. Cracks and breaks in the coil will diminish the element's ability to efficiently produce quality broiling results.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 3/8 inch.

The bake element is the oven's primary lower heat source. Replacing a failed element restores proper preheating and even baking performance when the oven won't heat or struggles to maintain temperature during the bake cycle. What it does

• Provides the main heat for the bake cycle in electric ovens
• Common failure symptoms: no heat on bake, very slow preheat, or uneven baking
• Visible damage such as blistering, cracks, or burn spots on the element indicates replacement is needed
• Helps the oven reach and hold set temperature when functioning correctly

• 1 bake element

• Disconnect power at the breaker before servicing to prevent electrical shock
• Remove oven racks; access the element mounting screws from inside the oven cavity
• Carefully pull the element forward, support the wires, and transfer the connectors one at a time to avoid losing them behind the liner
• Ensure terminals are fully seated; do not overtighten mounting screws, then restore power and test bake

Size: 8 x 3/8 inch.

Size: 8 x 3/8 inch.

Size: 6 inches long. Includes ceramic wire connectors.
