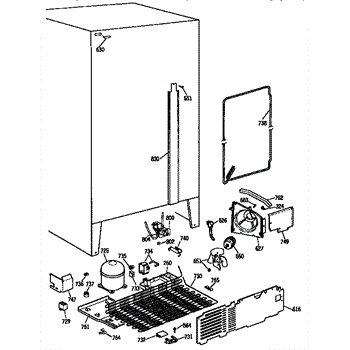

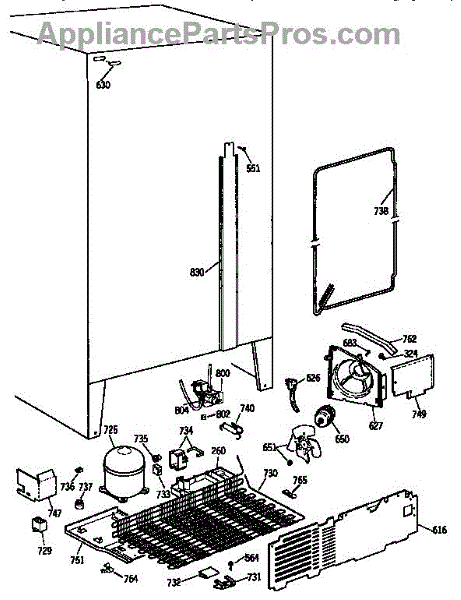

Parts for Kenmore 363.9530583 (3639530583, 363 9530583): Unit Parts

Package of 12

This evaporator fan blade mounts on the fan motor and circulates cold air across the evaporator coils and throughout the compartments. Replacing a cracked, warped, or loose blade restores proper airflow and stable temperatures.

• Moves air across the evaporator to distribute cooled air evenly
• Helps maintain consistent refrigerator and freezer temperatures
• Common symptoms include weak or no airflow, warm spots, frost buildup on the evaporator cover, and rattling/scraping noises
• Replace if the blade is damaged or spins loosely on the motor shaft

• Disconnect power before servicing
• Remove shelves/bins and the rear evaporator cover to access the fan
• Note blade orientation and seating depth; pull the old blade straight off the motor shaft
• Press the new blade on until fully seated; verify free spin and proper clearance before reassembly

This PTC start relay mounts on the refrigerator compressor and briefly energizes the start winding, then automatically opens as it warms. Replacing a weak relay helps restore reliable compressor starts and consistent cooling. What it does:

• Provides momentary power to the compressor's start winding at startup; the PTC element opens as it heats
• Helps ensure smooth compressor starts and reduces repeated start attempts
• Signs of a failed start device can include no cooling because the compressor won't run
• Clicking or buzzing from the compressor area every few minutes
• Compressor starts intermittently or stops shortly after starting

• Includes: 1 PTC start relay

• Disconnect power and pull the refrigerator forward to access the rear service area
• Remove the rear panel to reach the compressor compartment
• Unplug the wire harness and pull the old relay straight off the compressor terminals; note its orientation
• Push the new relay fully onto the compressor prongs, reconnect the harness, reinstall the panel, and restore power

This part has been discontinued by the manufacturer and is no longer available.

This baffle side discharge assembly directs dryer exhaust airflow to the side discharge port, helping maintain proper ventilation and reduce unusual noise from a damaged or misaligned baffle. Fits as a direct replacement for the original assembly. What it does

• Guides dryer exhaust air from the drum to the side discharge opening to maintain airflow.
• Helps prevent rubbing or contact between the drum and housing that can cause squeaks or scraping.
• Reduces the chance of airflow restriction that can extend drying times.
• Restores correct alignment of the exhaust path after damage or wear.

• One baffle side discharge assembly, as shown.

• Disconnect power before starting; for gas dryers, turn off the gas supply and disconnect per local codes.
• Installation typically requires removing access panels and the dryer drum or housing; have basic hand tools ready.
• Handle edges carefully and avoid forcing the part; proper alignment is needed for quiet operation and correct airflow.

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Nut for 1/4 inch tubing.

Please note: You may also need to order an adapter. For the adapter to convert the male connector from rectangular to oval use part number WR29X10049. Water valve in kit is part# WR57X10033.
