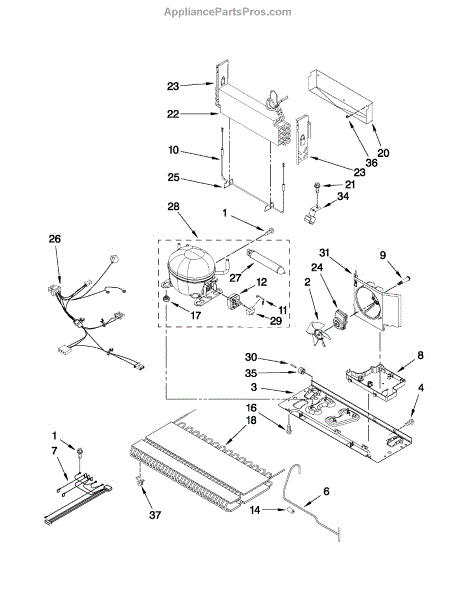

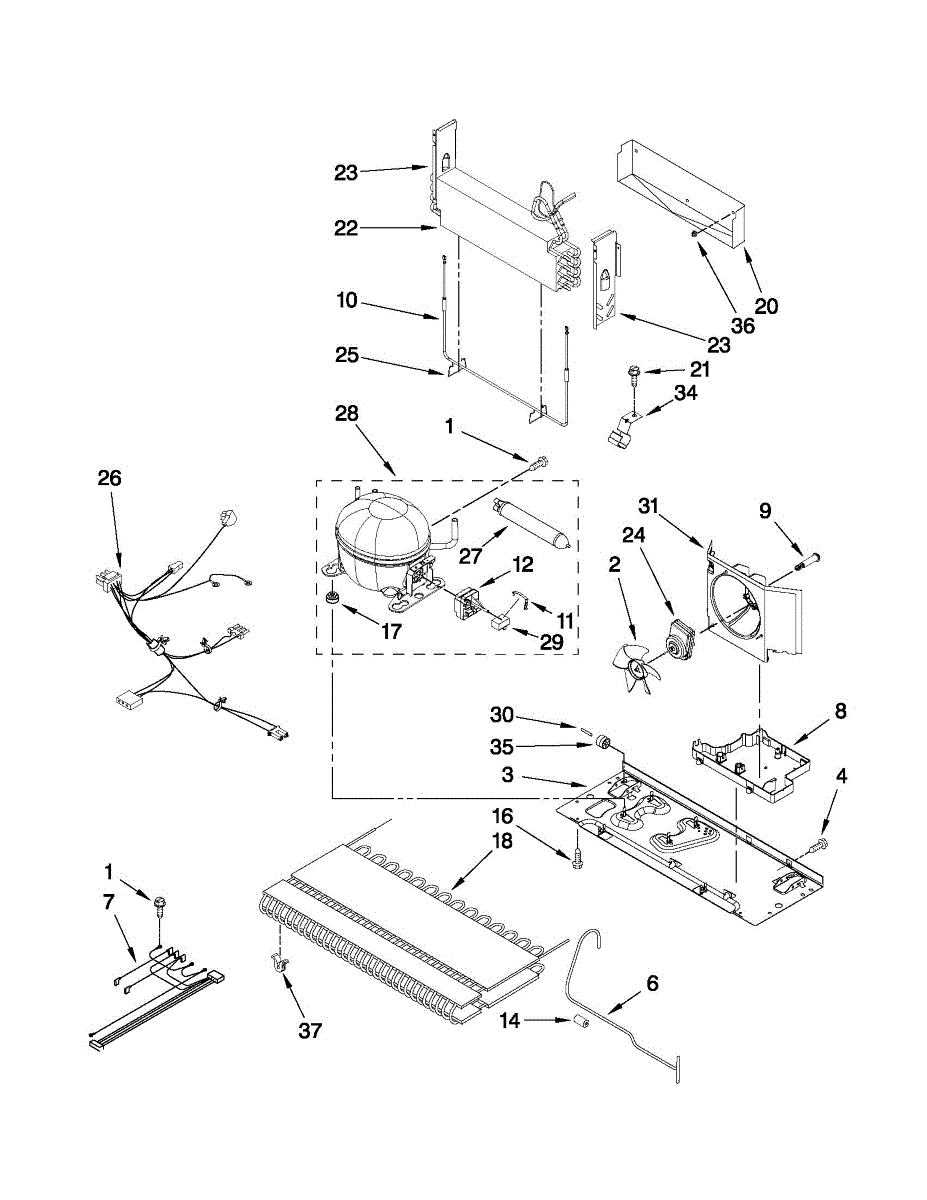

Parts for Kenmore 596.69282012 (59669282012, 596 69282012): Unit Parts

Refrigerator making loud noise or not cooling? A cracked or broken condenser fan blade disrupts airflow. Easy 10-minute DIY fix with our video guide.

Support plate for refrigerators. Mounts inside cabinet to secure components. Replace if cracked, bent, or missing to restore proper structural support.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Freezer not defrosting and refrigerator too warm? This evaporator defrost heater wire harness restores the defrost circuit. Moderate DIY repair fix.

Fix water leaking under your refrigerator with a new drip pan. Catches defrost water to prevent puddles and floor damage. Moderate DIY repair.

Replaces stripped, missing, or damaged mounting screws that secure panels, brackets, and components in your refrigerator. Restores proper assembly.

Freezer icing up or fridge too warm? The defrost heater melts frost from evaporator coils to restore cooling. Typical DIY repair takes 20 minutes-2.5 hours.

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

Refrigerator not cooling or clicking but not starting? The compressor start device initiates cooling. DIY repair in minutes with no tools required.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Fix a refrigerator that's not cooling properly with this condenser coil assembly. Restores efficient heat transfer and stable internal temperatures.

Drip tray for refrigerators. Installs beneath the evaporator coils to collect defrost water. Replace if cracked, broken, or missing to prevent leaks.

Refrigerator not cooling or freezing properly? The evaporator coil absorbs heat to cool your fridge. Moderate DIY repair requires defrosting system first.

Fix a noisy or non-cooling refrigerator with this condenser fan motor. Solves overheating compressor issues. DIY-friendly repair with video guide.

Fix refrigerator controls not responding or ice maker power issues with this control wire harness. Restores electrical connections between components.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Refrigerator not cooling or freezer icing up? A faulty compressor may be the cause. This part is the heart of your cooling system, requiring expertise.

Rear roller that helps move your refrigerator smoothly. Replace if broken, cracked, or wobbling to restore easy mobility. Confirm fit by model number.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

Refrigerator making rattling or vibrating noises? This condenser grommet cushions the condenser assembly to reduce noise and prevent mounting wear.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 inch.
