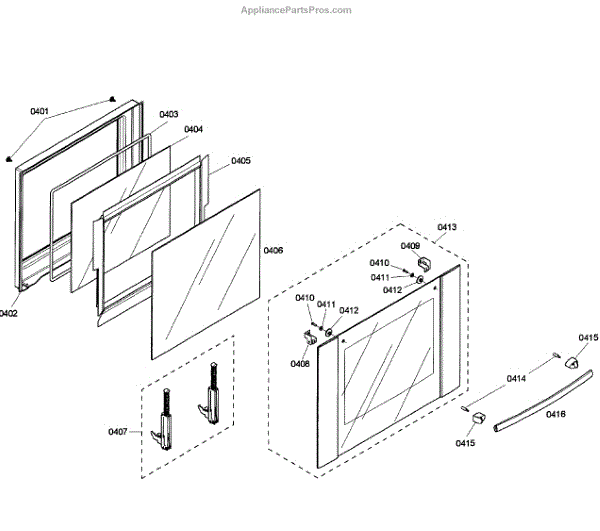

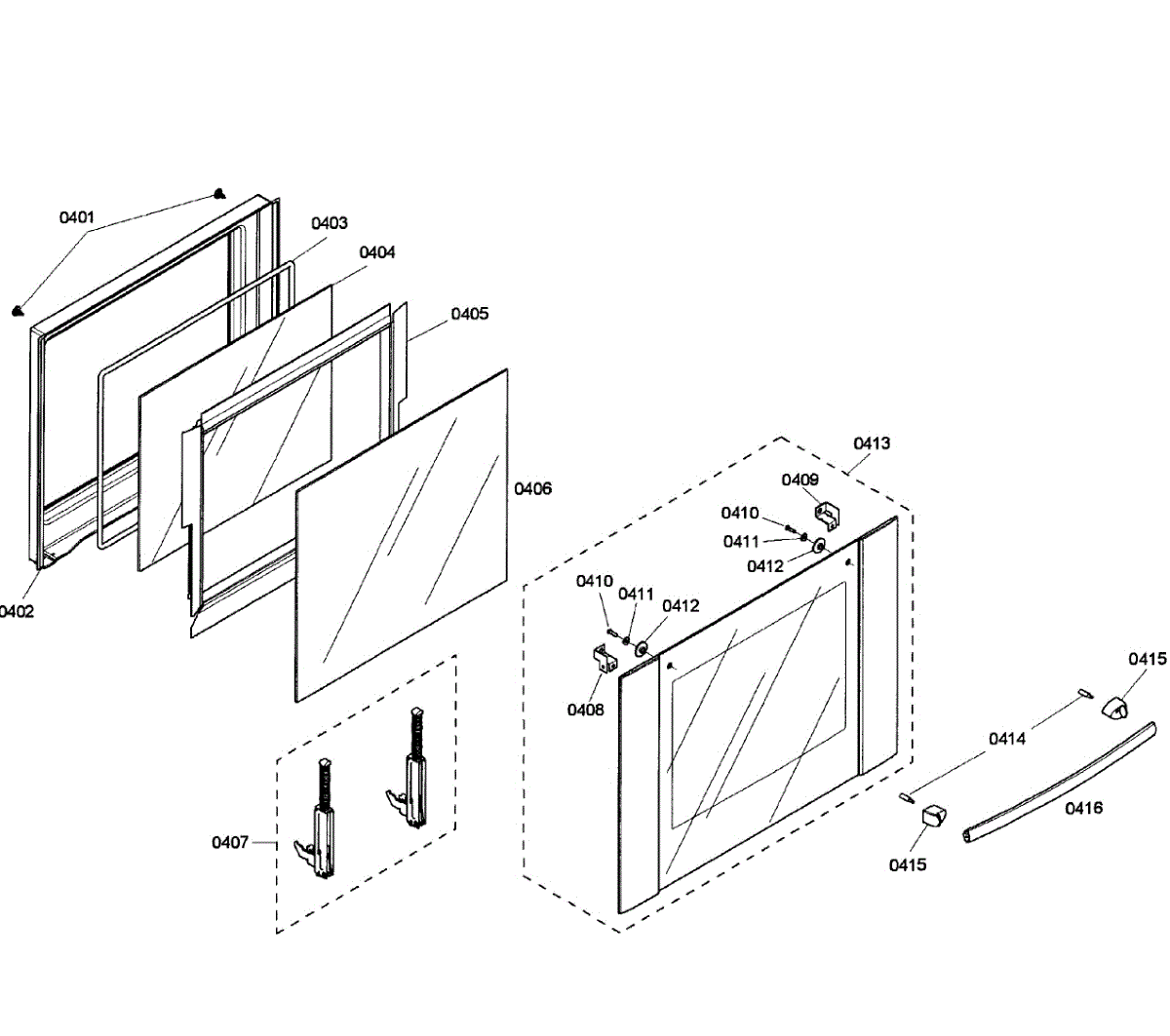

Parts for Bosch HBL5620UC/03: Upper Door Parts

Parts for Bosch HBL5620UC/03: Upper Door Parts

Location on Diagram
Part Description
Price & Availability
401
By: Bosch
Part Number: 93406A194
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

402
By: Bosch
Part Number: 00688561

Replaces the interior door panel of your wall oven. Needed when the inner liner is cracked, dented, or corroded. Restores structural integrity.

More
$317.23

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
403
Product photo
By: Bosch
Part Number: 00144652

Seals the oven door to retain heat and improve efficiency. Replace if you notice heat escaping or uneven cooking. Verify fit with your model number.

More
$37.79

IN STOCK
Ships Today Guaranteed
Add to Cart
404
Product photo
By: Bosch
Part Number: 00770023

Replacement inner door glass panel for wall ovens. Installs between door layers to restore protection when original glass is cracked or shattered.

More
$202.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
405
Product photo
By: Bosch
Part Number: 00247173

Decorative trim plate covers seams between control panels and door edges for a finished look. Replace when damaged or discolored. Confirm fit with model.

More
$182.79

IN STOCK
Ships Today Guaranteed
Add to Cart
406
Product photo
By: Bosch
Part Number: 00478310

Replacement glass panel for wall oven doors. Restores appearance when original glass is cracked, chipped, scratched, or broken. Direct fit part.

More
$162.95

IN STOCK
Ships Today Guaranteed
Add to Cart
407
By: Bosch
Part Number: 00682904
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

408
Product photo
By: Bosch
Part Number: 00613178

This metal mounting bracket secures internal components and panels to restore proper alignment and reduce rattling. It's a straightforward replacement part that helps keep appliance panels and assemblies firmly in place for reliable operation. What it does:

  • Provides a secure attachment point for panels or internal assemblies to prevent movement and vibration
  • Helps correct alignment issues that can cause rubbing, gaps, or noise
  • Restores the original fit where a bent, cracked, or missing bracket caused loose parts
  • Works with the appliance's existing fasteners and mounting points
What's included: One bracket Install notes:
  • Remove power and, if applicable, disconnect the appliance from water before beginning work
  • Use the factory fasteners or OEM replacement screws to secure the bracket in the original location
  • Verify alignment of the attached panel or assembly before fully tightening fasteners

More
$24.45

IN STOCK
Ships Today Guaranteed
Add to Cart
409
Product photo
By: Bosch
Part Number: 00613179

Replace your wall oven's broken or snapped door bracket. This mounting bracket secures the lower oven door panel and attaches door clips for proper alignment.

More
$24.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
410
By: Bosch
Part Number: 00422099
$11.49

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
411
Product photo
By: Bosch
Part Number: 00426300
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

412
By: Bosch
Part Number: 00609084

Replacement washer for electric wall ovens. Installs between components to provide secure spacing and prevent wear. Order if original is missing, damaged, or worn.

More
$34.95

IN STOCK
Ships Today Guaranteed
Add to Cart
413
By: Bosch
Part Number: 00246545
$585.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
414
Product photo
By: Bosch
Part Number: 00609082

Replacement mounting bolt for wall ovens and warming drawers. Secures oven to cabinet or frame. Order if original bolt is missing, stripped, or damaged.

More
$7.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
415
By: Bosch
Part Number: 00614002

This cap is a small protective cover used to shield electrical terminals or connectors, helping prevent accidental contact and reducing exposure to dust and debris. It keeps connections tidy and helps maintain reliable operation. What it does:

  • Covers and protects exposed electrical terminals or connector ends
  • Helps prevent accidental shorts from contact with metal objects
  • Reduces dust and debris accumulation around the connection
  • Keeps wiring routed and secured for a neater installation
What's included: One replacement cap Install notes:
  • Disconnect power to the appliance before inspecting or replacing electrical parts
  • Remove old/damaged cap and snap new cap into place over the terminal or connector until fully seated
  • Use basic hand tools if necessary; avoid forcing the cap to prevent damage
  • If terminals are corroded or damaged, replace those components instead of relying on the cap alone

More
$29.23

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
416
By: Bosch
Part Number: 00665184
$50.62

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
By: Bosch
Part Number: 00423241

Secures trims and seals panels against dust and vibration. Replace when adhesive weakens or components loosen. Confirm fit with your model number.

More
$29.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
