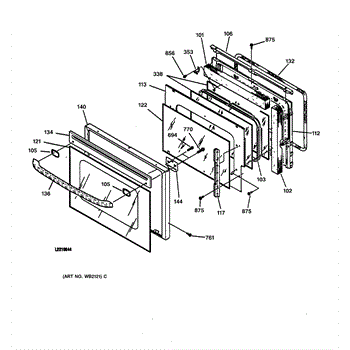

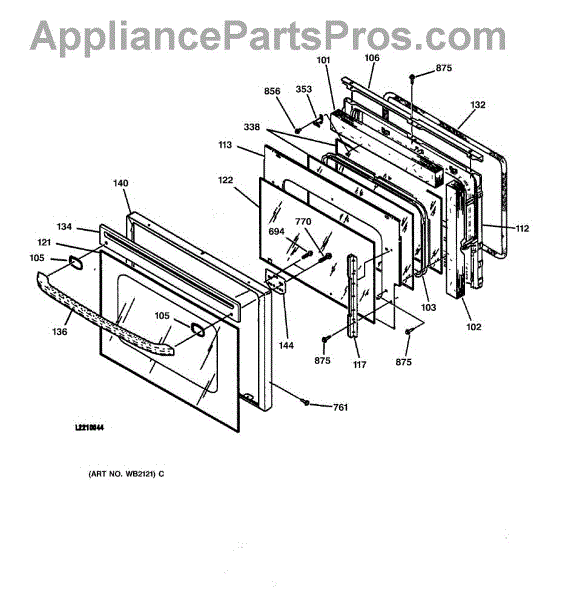

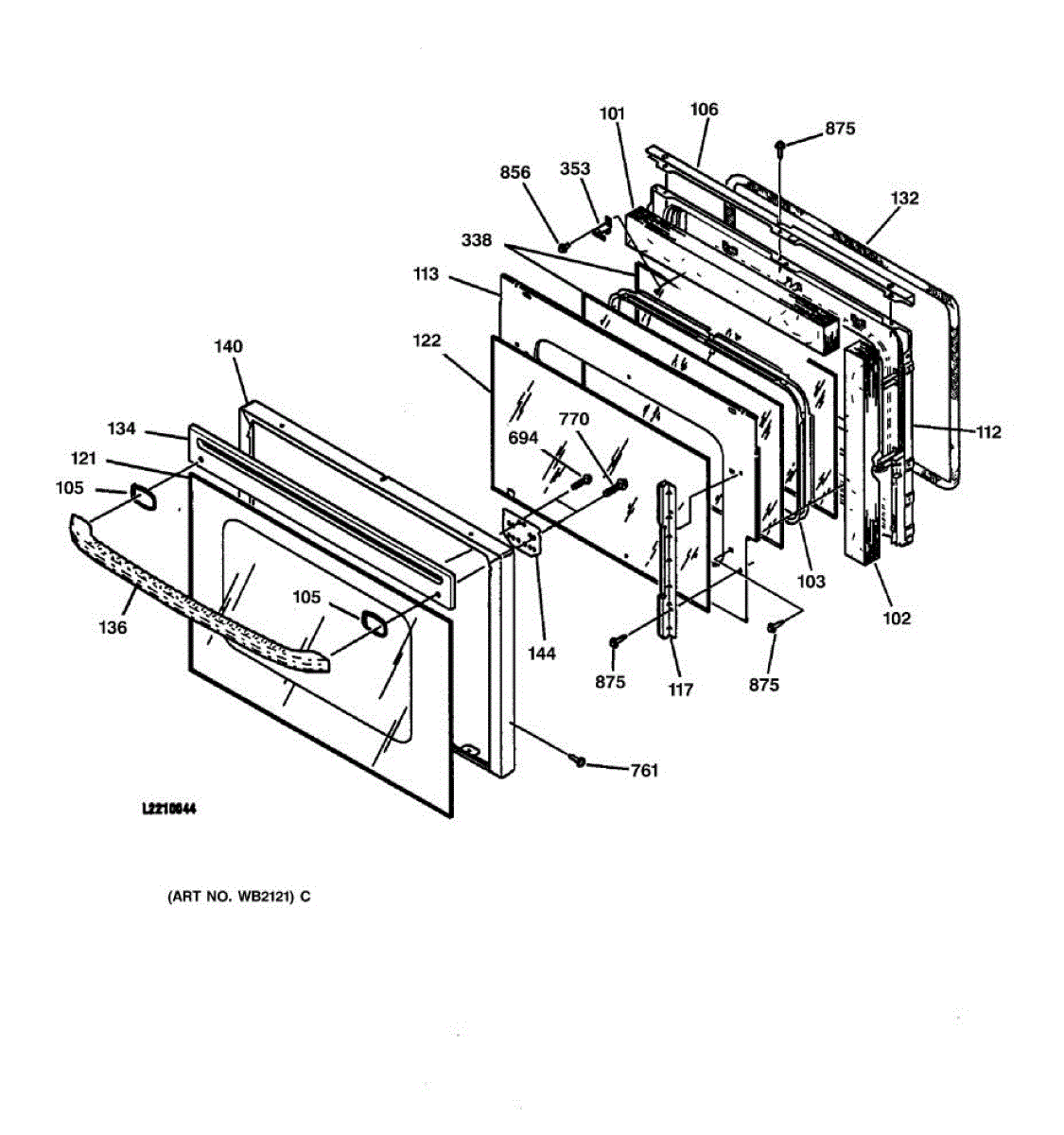

Parts for Ge JKP27WA2WW: 03 - Upper Door Parts

This oven door lining is the inner metal panel that helps protect the door insulation and interior cavity while maintaining proper heat containment and a finished appearance. It restores a secure, clean inner door surface for safe oven use. What it does:

• Forms the inner surface of the oven door, covering insulation and internal components
• Helps retain heat inside the oven cavity for efficient cooking
• Prevents direct contact with insulation and internal door hardware
• Commonly replaced when the lining is dented, cracked, rusted, or warped

• Replacement may require removing the oven door and separating door panels; follow OEM disassembly steps
• Handle edges with care — metal edges can be sharp
• Disconnect power to the appliance before servicing to avoid risk of shock

This oven door gasket forms a heat-resistant seal between the door and the oven frame. It keeps heat inside the cavity to help the oven reach and maintain set temperatures while limiting steam and odor escape.

• Seals the perimeter of the oven door opening to minimize heat loss and drafts
• Supports accurate temperature regulation and more even baking results
• Helps reduce heat transfer to surrounding surfaces and trim
• Common signs of wear: visible tears or flattening, heat leaking at the door, longer preheat, or temperature fluctuations

• Disconnect electrical power; shut off gas supply
• Pull the old gasket straight out of the door's mounting holes, noting corner orientation
• Press the new gasket's end tabs fully into the holes and seat evenly around the frame—do not stretch
• Close the door and check for uniform contact all around

This reinforcement plate restores structural support where the oven/range door or trim attaches, helping stop sagging and keeping panels aligned for proper sealing and appearance. What it does:

• Reinforces the mounting area so door or trim stays securely attached
• Restores alignment to reduce gaps, drafts, or uneven door closing
• Prevents further wear at stressed screw holes and mounting points
• Stops rattling or vibration caused by loose or damaged support

• Disconnect power before servicing and allow appliance to cool completely
• Remove appropriate access panels or door per the manufacturer instructions
• Handle edges carefully; fasten with original hardware and torque to OEM specs
• If mounting holes or surrounding parts are damaged, inspect and replace any worn hardware

This window clip is a small plastic retainer that secures an appliance door or inner window panel, helping keep glass and trim aligned for a tight seal and quiet operation. Replaces a worn or broken clip to restore proper fit. What it does:

• Holds the door/window trim or inner glass panel in place to prevent movement and rattling
• Helps maintain door alignment for an even seal and consistent temperature control
• Stops loose trim from vibrating or contacting other parts, reducing noise
• Commonly replaced when clips are cracked, broken, or missing

• Disconnect power to the appliance before starting any repair
• Handle any glass or trim carefully to avoid breakage and injury
• Typical installation uses basic hand tools (screwdriver/pry tool) to remove trim and snap the clip into place

This white trim screw secures panels and plastic trim on the appliance, restoring proper fit and stopping rattles or loose pieces. It's a direct-replacement fastener used where the factory-installed screw has stripped, corroded, or gone missing. What it does

• Fastens trim, panels, or components to maintain proper alignment and fit
• Prevents vibration noise and rattling caused by loose parts
• Replaces stripped, rusted, or lost screws for a clean, finished appearance
• Matches factory finish to remain discreet in visible areas

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver/drill bit to avoid stripping the head
• Tighten securely but do not overtighten; excessive force can crack plastic or strip threads
• Replace only with the same part number to ensure proper fit and finish

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8
