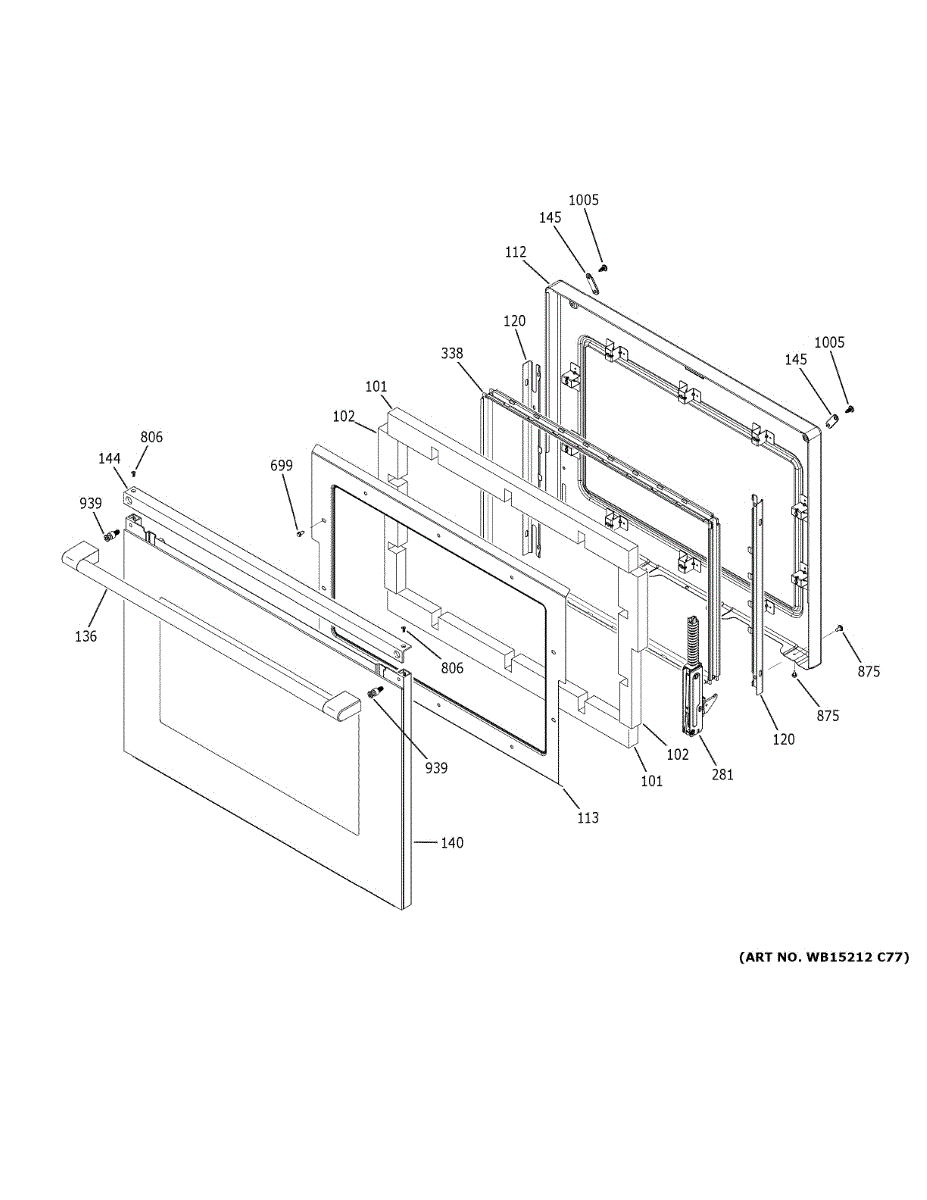

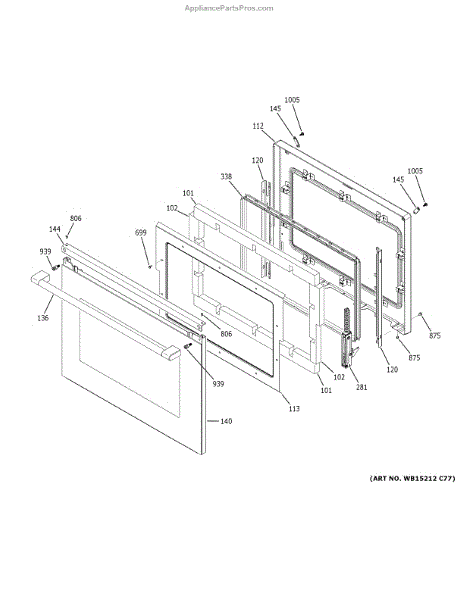

Parts for Ge CKD70DM2N2S5: Upper Door Parts

This oven door liner is the inner metal panel that forms the inside surface of the oven door, restoring structural support and the finished interior appearance. Replaces a damaged or warped liner to help the door seal and support the inner glass. What it does:

• Provides the interior surface and structural backing for the oven door and inner glass
• Restores proper alignment and support when liner is dented, cracked, or bent
• Helps maintain the door's sealing surface to reduce heat loss and maintain cooking performance
• Prevents contact between the inner glass and insulation or components

• Disconnect power to the appliance before starting and allow all surfaces to cool completely
• Handle glass and metal edges with care; wear gloves and eye protection
• Installation typically requires removing the oven door and inner glass; follow the oven manufacturer's instructions

Secures cabinet liner and interior trim panels in wall ovens. Replace if cracked or loose to restore proper alignment and prevent gaps. Confirm fit with your model.

Covers fastener holes in your oven's inner door liner for a clean finish. Replace when missing, loose, or damaged to keep grease out. Confirm fit with your model.

Left door hinge for electric range ovens. Mounts between the oven door and frame to support opening and closing. Replace if cracked, bent, or loose.

Oven door window pack assembly includes glass pane and frame for viewing food while cooking. Replace if cracked, shattered, or broken from heat damage.

This is a replacement 8-32 screw (TT FLT 7/20) for securing appliance panels and internal components. It restores a secure fastened connection so parts stay aligned and rattle-free during normal use. What it does:

• Fastens panels, brackets, and small assemblies that use 8-32 threaded holes
• Helps stop loose or vibrating parts caused by missing or stripped screws
• Provides a direct one-for-one replacement where this specific screw was used
• Works with metal or plastic mounting points designed for 8-32 threads

• Use the correct 8-32 driver; do not overtighten to avoid stripping threads
• Inspect mating threads and replace damaged inserts or clips before installing
• Disconnect power to the appliance and follow manufacturer safety guidance when accessing internal components

This threaded mounting stud secures appliance components, restoring proper fit and stability for panels, trim, or internal parts. Replacing a damaged or missing stud helps stop rattling and keeps assemblies aligned for safe operation. What it does:

• Provides a secure anchor point for panels, trim pieces, or component housings
• Restores correct alignment to reduce vibration and noise from loose parts
• Replaces broken, stripped, or missing studs that prevent proper fastening
• Helps maintain electrical and mechanical clearance by keeping parts in place

• Disconnect power to the appliance before beginning any repair.
• Use appropriate hand tools and match thread engagement; do not overtighten.
• Inspect mating threads and surrounding parts for damage before installation.
