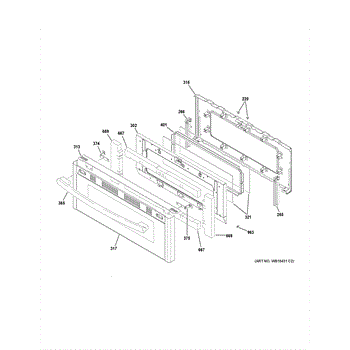

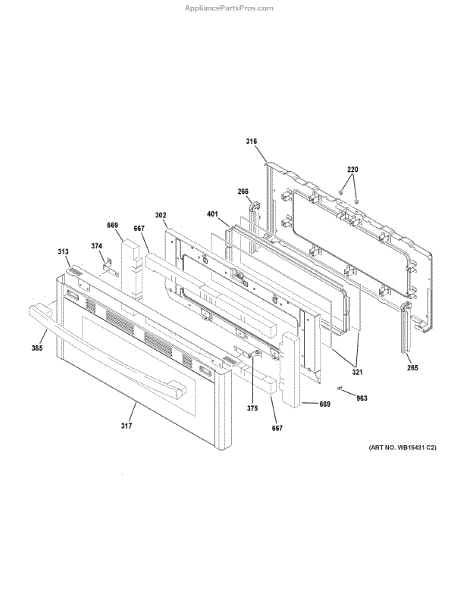

Parts for Ge JGB860EEJ5ES: Upper Door Parts

Heat shield that protects oven components from high temperatures. Replace if cracked, damaged, or missing to maintain safe range operation and insulation.

Replace your range door liner assembly if cracked, damaged, or warped. This interior door panel installs on the oven door to provide insulation and structure.

Replacement oven door window glass for electric and gas ranges. Restores visibility when original glass is cracked, broken, or damaged. Installs in door frame.

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This handle mounting bracket secures the appliance handle to the door, restoring a stable grip and normal operation. Replace a cracked or worn bracket to stop a loose, wobbly or detached handle and make the door easier to open. What it does:

• Provides the structural support that fastens the exterior handle to the appliance door
• Stops handle wobble or play caused by a broken or worn bracket
• Restores proper handle alignment and secure attachment
• Helps prevent further damage to the handle or door trim by replacing a failing mount

• Unplug the appliance or disconnect power before beginning any repair
• Remove the handle and any trim to access the bracket; keep mounting screws for re-use unless replacement screws are specified
• Install bracket with correct orientation and torque; avoid overtightening to prevent cracking

This oven door inner insulation cushions the inner door panel and helps maintain proper cooking temperatures while reducing heat transfer to the outer door. Replaces damaged or missing insulation to improve heating consistency and help keep the exterior cooler. What it does

• Fills the cavity behind the oven door's inner panel to limit heat loss and stabilize internal temperatures.
• Helps reduce outer door surface temperature for safer handling during and after use.
• Reduces drafts and uneven cooking caused by compromised or missing insulation.
• Works with the door inner panel and outer door assembly to restore proper sealing and performance.

• One door insulation

• Remove power to the appliance and allow the oven to fully cool before beginning work.
• Handle carefully to avoid tearing the insulation; use caution around sharp sheet metal and door glass.
• Follow manufacturer service manual or OEM instructions for door disassembly and reassembly.
