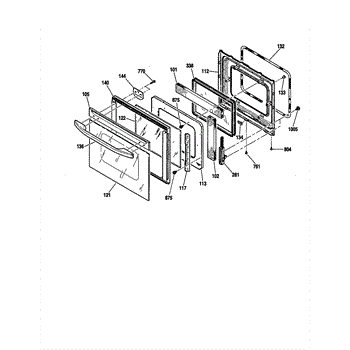

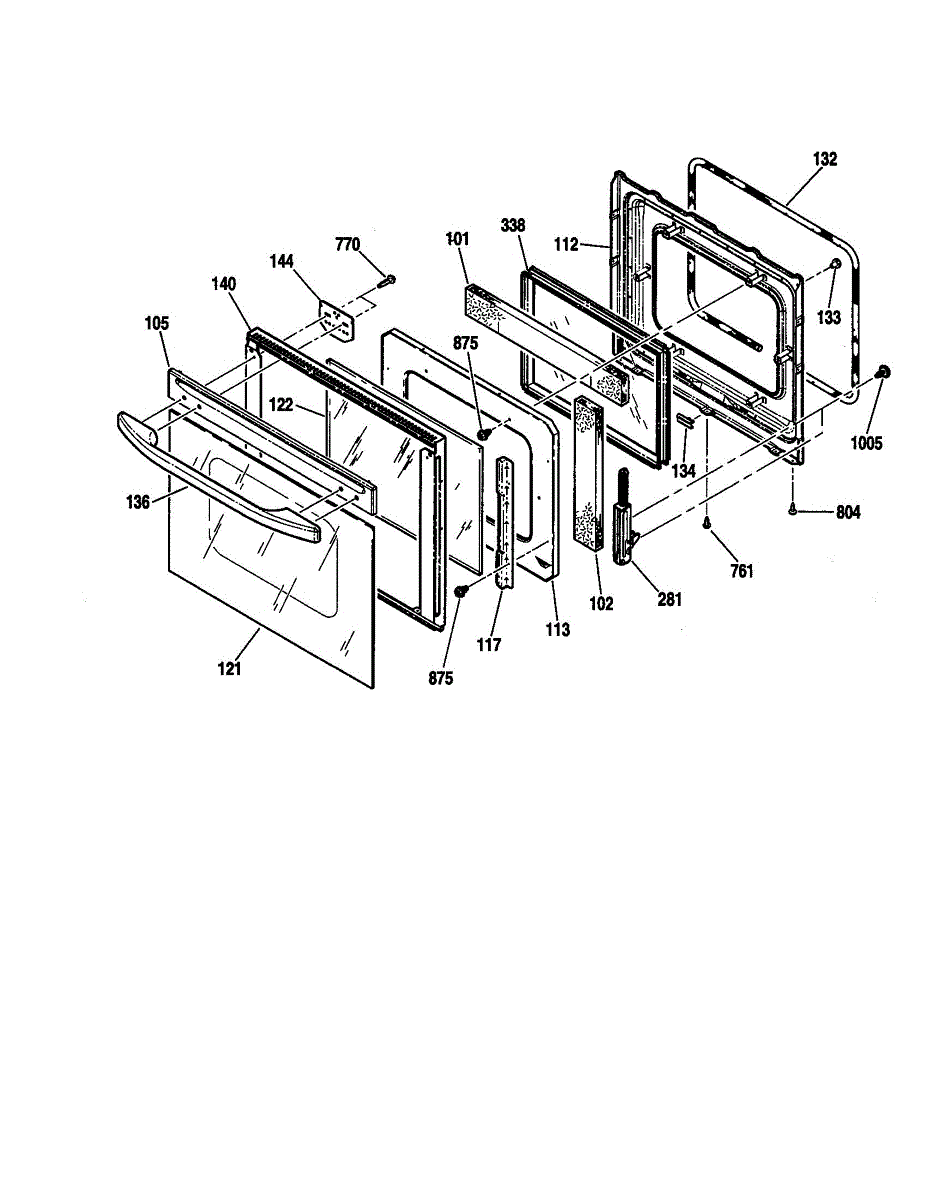

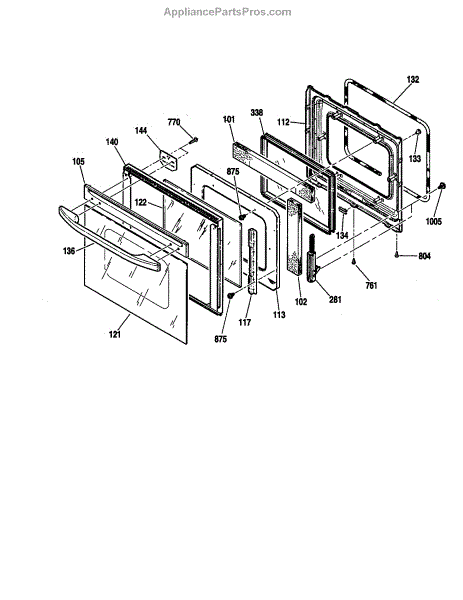

Parts for Kenmore 911.47629100 (91147629100, 911 47629100): Upper Door Section Parts

This top oven door insulation replaces the upper thermal liner inside the oven door to help retain heat and improve oven temperature stability for more even cooking. It restores proper door insulation where the original is missing or damaged. What it does:

• Replaces the top section of the oven door insulation to reduce heat loss through the door
• Helps maintain oven temperature for more consistent baking and roasting
• Reduces exterior door heat and minimizes risk of hot spots on the door surface
• Addresses symptoms like excessive oven heat loss, longer preheat times, or a noticeably thin/damaged door interior

• One top oven door insulation piece

• Disconnect power to the appliance and allow the oven and door to cool completely before starting
• Install requires removing the oven door and some fasteners—handle glass and clips carefully to avoid damage
• Wear gloves to protect from sharp edges and insulation fibers
• Verify proper fit and seal after installation

This gasket seals the upper oven door to the front frame to keep heat inside the cavity for stable baking and safer, more efficient operation. Replace a worn seal to stop heat leaks and improve temperature consistency.

• Provides a heat-resistant seal around the upper oven door perimeter
• Helps the oven preheat faster and hold the set temperature
• Reduces heat and steam escaping at the door edges
• Common signs of wear: fraying or tears, flattened/hardened sections, visible gaps, longer preheat or uneven baking

• Disconnect power and allow the oven to cool completely before starting.
• Open the door and carefully pull the old gasket from the retainers around the frame.
• Press the new gasket evenly into the retainers without stretching; align corners and ensure the ends meet cleanly.
• Close the door to confirm uniform contact around the seal before heating.

This reinforcement plate restores structural support where the oven/range door or trim attaches, helping stop sagging and keeping panels aligned for proper sealing and appearance. What it does:

• Reinforces the mounting area so door or trim stays securely attached
• Restores alignment to reduce gaps, drafts, or uneven door closing
• Prevents further wear at stressed screw holes and mounting points
• Stops rattling or vibration caused by loose or damaged support

• Disconnect power before servicing and allow appliance to cool completely
• Remove appropriate access panels or door per the manufacturer instructions
• Handle edges carefully; fasten with original hardware and torque to OEM specs
• If mounting holes or surrounding parts are damaged, inspect and replace any worn hardware

The Window Pack Assembly is an OEM part for GE ranges. This part allows you to monitor your food while it cooks without opening the door and letting heat escape. The assembly ensures clear visibility and helps maintain the oven's internal temperature for consistent cooking results.

Causes of a bad window pack can include accidental impacts, thermal stress from repeated heating and cooling cycles, or manufacturing defects.

Symptoms of a bad window pack assembly include:

• Cracks or breaks in the glass
• Fogging or condensation between the glass layers
• Difficulty in seeing through the window
• Heat escaping from the door area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This white trim screw secures panels and plastic trim on the appliance, restoring proper fit and stopping rattles or loose pieces. It's a direct-replacement fastener used where the factory-installed screw has stripped, corroded, or gone missing. What it does

• Fastens trim, panels, or components to maintain proper alignment and fit
• Prevents vibration noise and rattling caused by loose parts
• Replaces stripped, rusted, or lost screws for a clean, finished appearance
• Matches factory finish to remain discreet in visible areas

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver/drill bit to avoid stripping the head
• Tighten securely but do not overtighten; excessive force can crack plastic or strip threads
• Replace only with the same part number to ensure proper fit and finish

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Black. 8-18 AB HXW 3/8
