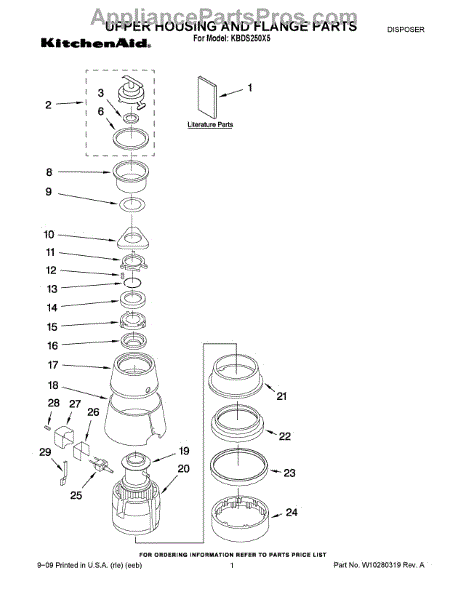

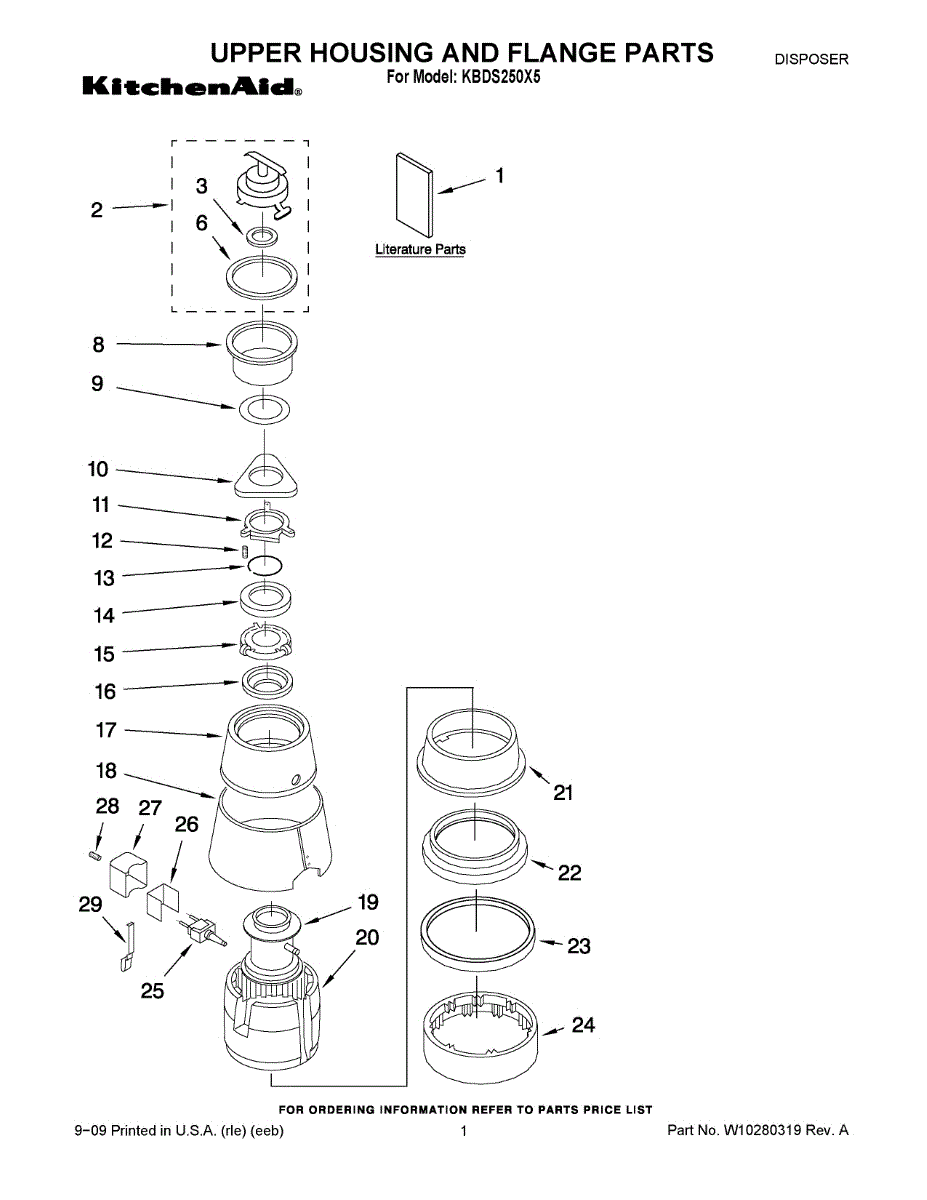

Parts for Kitchenaid KBDS250X5: 01 - Upper Housing And Flange Parts

This is a replacement Seal - stopp that restores a secure seal to the original component, helping prevent leaks and keep the appliance operating normally. Use it when the original seal is worn or damaged. What it does

• Forms a tight seal at the mating surface to help stop water or air leaks
• Restores proper fit where a worn seal causes seepage or dripping
• Helps reduce related symptoms like water pooling beneath the appliance or visible leakage
• Simple, single-piece part designed to match the OEM sealing point

• Disconnect power to the appliance before starting work; turn off water supply if applicable
• Inspect mating surfaces and clean away debris or old sealant before installing the new seal
• Fit the seal fully into its groove or mounting location; do not stretch or twist the part during installation

This flange strainer fits into the dishwasher sump to keep debris out of the pump assembly, helping prevent clogs and protecting the drain system. It restores proper filtering for dependable wash and drain performance. What it does:

• Screens food particles and grit before they reach the pump impeller
• Helps reduce clog-related wash failures and odors
• Prevents solids from damaging the sump and pump components
• Maintains normal draining and circulation when intact

• Disconnect power to the appliance before servicing
• Access the sump by removing the dishwasher tub access panel or lower dish rack as required by your model
• Inspect surrounding gaskets and seals; replace any damaged seals to prevent leaks
• Test for leaks and proper draining after reassembly

This sink flange seal is a rubber gasket that creates a watertight seal between the sink and drain flange to help prevent leaks and water damage. Use it when the flange seal is cracked, flattened, or leaking. What it does:

• Seals the gap between the sink and drain flange to stop water from leaking under the sink.
• Helps prevent sink-edge water pooling and slow drainage caused by a failed seal.
• Reduces chance of odors from trapped water beneath the flange by restoring a tight seal.
• Restores proper fit when replacing a corroded or worn sink flange assembly.

• One sink flange seal (rubber)

• Turn off water supply and disconnect drain components before replacing the seal.
• Remove the drain flange assembly, clean mating surfaces, then seat the new seal evenly.
• Avoid stretching or cutting the seal; replace it if damaged or misshapen.

A replacement mounting flange that secures a rotating shaft or assembly to the appliance cabinet, restoring proper alignment and stable operation. Fits original mounting points to reduce vibration and noise from loose or worn hardware. What it does

• Secures a shaft, drum or assembly to the cabinet to maintain alignment and smooth rotation.
• Reduces vibration and rattling caused by a worn or broken flange.
• Helps prevent excess wear on bearings and seals by keeping parts properly positioned.
• Can stop intermittent contact or scraping noises that occur when mounting hardware is damaged.

• One mounting flange

• Disconnect power before servicing and follow the appliance manufacturer's service instructions.
• Remove access panels to reach the flange; save and reuse any original fasteners unless damaged.
• May require removing the drum or related assembly for access—refer to the service manual for procedure.
• If seals, bearings or fasteners are worn, replace those items as needed.

This snap ring (circlip) secures a shaft or component in a groove to prevent axial movement, helping keep assemblies aligned and running smoothly. It's a small but critical retention part for appliance mechanisms. What it does:

• Holds bearings, shafts, or retainers in place by locking into a groove
• Prevents axial movement that can cause wobble, noise, or misalignment
• Maintains proper spacing of moving parts for reliable operation
• Common symptom: loose or shifting component, increased play or noise near the affected area

• One snap ring (circlip)

• Install with proper snap-ring (circlip) pliers to avoid deformation or injury
• Ensure the groove and ring are clean and free of debris before seating
• Inspect the ring for damage or wear; replace if distorted or cracked
