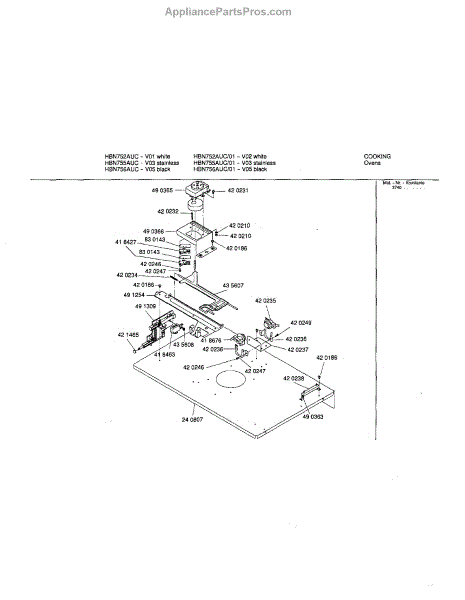

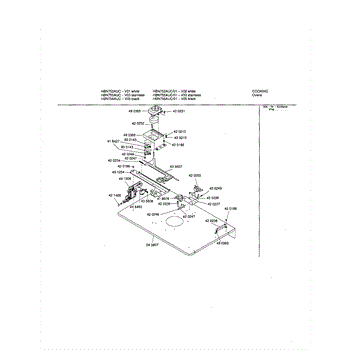

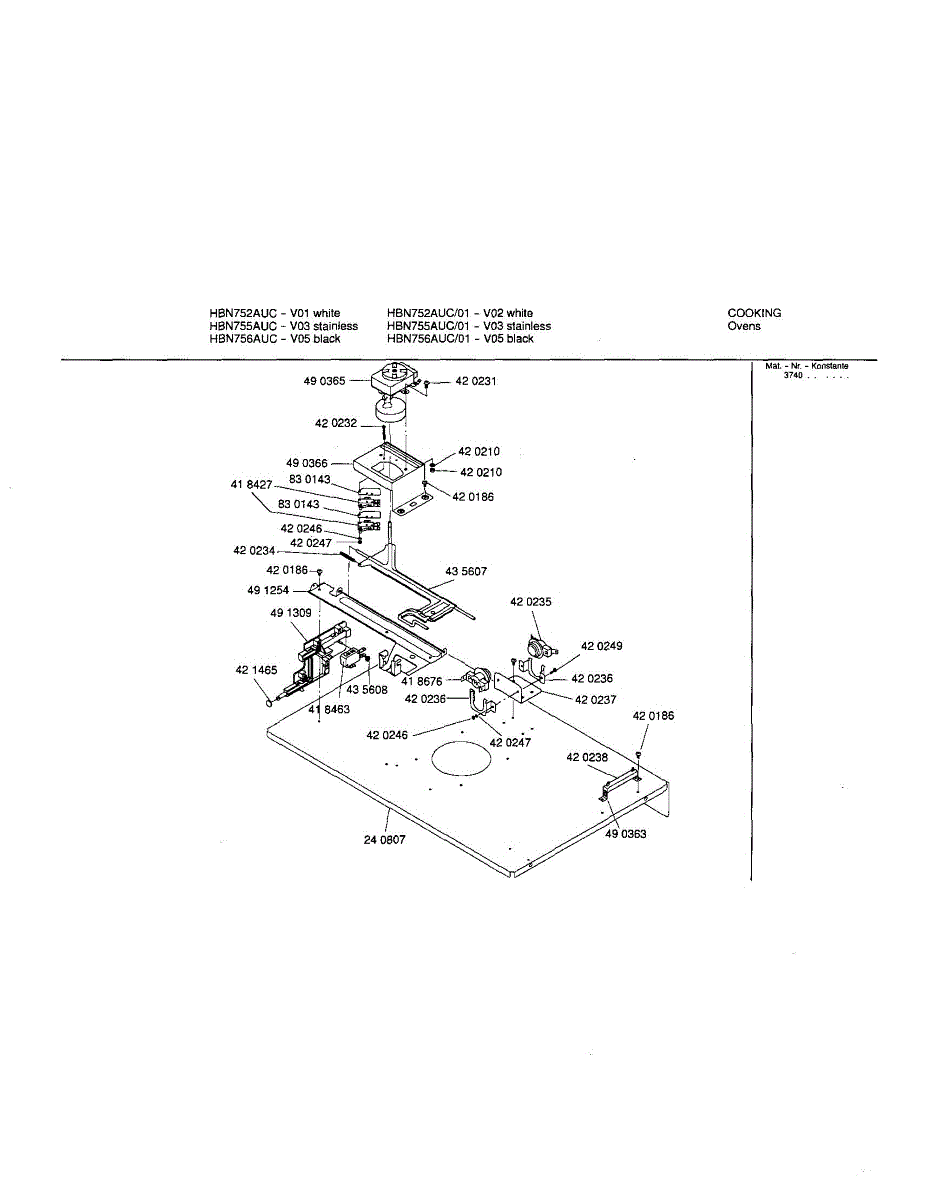

Parts for Bosch HBN752AUC/01: Upper Internal Panel Parts

This cavity partition is the internal oven divider that maintains proper separation and airflow inside the cooking cavity for safe, consistent operation. It restores the oven's internal structure after damage or during repairs. What it does:

• Reestablishes the internal divider that separates oven compartments and supports correct airflow distribution
• Helps maintain even cooking by preserving the oven's designed cavity geometry
• Addresses symptoms like loose or missing interior panels, rattling inside the oven, or gaps in the oven wall
• Prevents contact between components that should remain separated, reducing risk of internal damage

• One cavity partition (single-piece) as shown

• Refer to the oven's service manual for correct placement and fastening sequence
• Disconnect power and allow the appliance to cool completely before servicing
• Handle edges with care; wear gloves to avoid cuts and protect finished surfaces
• If fasteners or clips are damaged or missing, replace them; part ships without additional hardware

Fix a wall oven that won't start or heat with this door latch switch. Common solution when the oven doesn't respond to controls. Simple installation.

311 degrees fahrenheit.

M4.2 x 9.5mm mounting screw for wall ovens. Secures interior panels, brackets, and components. Replace if stripped, missing, or damaged during repairs.

M5 x 10mm mounting screw for wall ovens. Secures internal components and panels. Replace if stripped, missing, or corroded during repairs.

Mounting bracket for wall oven hi-limit thermostat. Secures thermostat in proper position. Replace if bent, broken, or missing to ensure safe installation.

A replacement mounting bracket that secures internal components or panels so parts stay aligned and stable during normal use. Restores proper fit and reduces movement that can cause rubbing or noise. What it does:

• Supports and holds a panel, assembly, or component in the correct position
• Prevents shifting that can lead to rattling, misalignment, or premature wear
• Provides a fixed attachment point for fasteners or clips
• Helps maintain proper gap and alignment for doors or covers

• Disconnect power and water before starting repairs
• Inspect surrounding fasteners and clips; replace any that are damaged
• Use basic hand tools; follow OEM diagram for orientation and screw locations

M3 x 12mm mounting screw for wall ovens. Secures internal panels, components, and trim. Replace if missing, stripped, or damaged during repairs.

Stop ring for electric wall ovens. Installs on control components to secure and position parts. Replace if cracked, broken, or missing to restore fit.

Replacement resistor support plate for electric wall ovens. Secures heating element resistor in place. Order a new one if original is cracked or broken.

Heat shield for wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.
